Downloads : technical modifications reserved
alpha_pendant_profile_instructions_3 (pdf) |
wiring_alphabet_211687513683 (pdf) |
Alphabet ZETA 52 PENDANT (52mm)

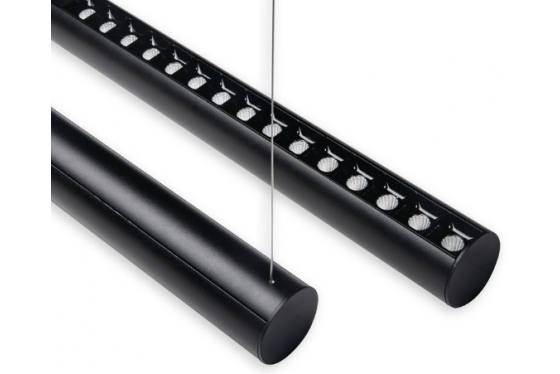

“ZETA52” Pendant... is a LED profile luminaire, made of an extruded aluminum, powder-coated with fine matte finish. Designed for pendant mounting, providing direct light emission through SMD 5*2W, 1100Lm each. Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3.
Drivers On-Off or dimmable.
Features:
• Available from 13cm to 250cm.
• With SMD 5*2W, 1100Lm each.
• Available Individual Lenses 15°,30°, 45° or Wall Washer.
• CRi80, Optionally CRi90.
• CCT 3000K or 4000K, Optionally 2700K.
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White , Black or Grey powder coated, Optonaly in Special RAL.
• L80 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• Color Consistency <3SDCM.
• UGR <16.
