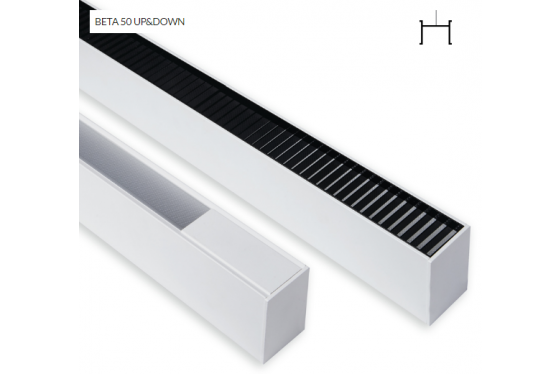

Alphabet BETA 50 UP&DOWN (50mm)
“BETA50” Up & Down is a LED profile luminaire, made of an extruded aluminum, powder-coated with fine matte finish. Providing direct and indirect light emission through linear lenses 30°,60°, asymmetrical, double symmetrical angle beam or microprismatic clear optic. Linear louvers available for reduced UGR. Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3, according to Zhaga book 7. Drivers On-Off or DIMMABLE.
•Available from 58cm to 450cm.
•Three different Lumen Output types plus Tunable White.
•CRi80, Optionally CRi90.
•CCT 3000K or 4000K, Optionally 2700K or 6500K plus Tunable White.
•With Linear Lenses 30°, 60° Beam Angle and Asymmetric, Double Symmetric or Microprismatic Clear Optic-Diffuser.
•On-Off, Emergency or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
•Coming in White, Black or Grey powder coated and in Special Decorative Black or Red Oxidation, Optionally in Special RAL.
•L80 B10 @50.000h (Ta 24°).
•Flicker @100Hz <3.
•Color Consistency <3SDCM.
