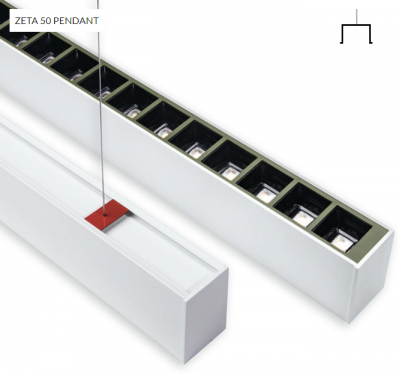

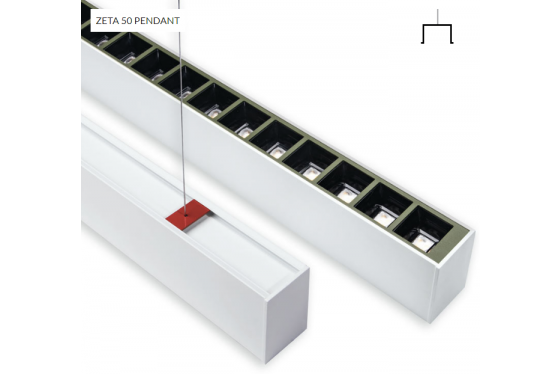

Alphabet ZETA 50 PENDANT (50mm)
“ZETA50” Pendant...is a LED profile luminaire, made of an extruded aluminum, powder-coated with fine matte finish. Providing direct light emission through linear lenses 50° or 80°. Linear louvers available for reduced UGR. Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3, according to Zhaga book 7. Drivers On-Off or DIMMABLE.
• Available from 58cm to 450cm.
• Three different Lumen Output types plus Tunable White.
• CRi80, Optionally CRi90.
• CCT 3000K or 4000K, Optionally 2700K or 6500K plus Tunable White.
• With Linear Lenses 50°or 80° Beam Angle.
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth)
• Coming in White, Black or Grey powder coated and in Special Decorative Black or Red Oxidation, Optionally in Special RAL.
• L80 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• Color Consistency <3SDCM.
• UGR <17.
