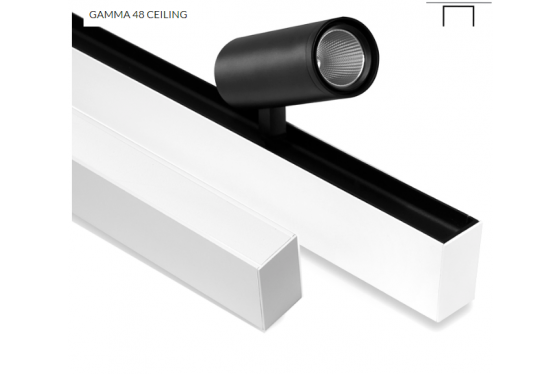

Alphabet GAMMA 48 CEILING (48mm)

“GAMMA48” Ceiling ...is a LED profile, made of an extruded aluminum, powder-coated with fine matte finish, with dark cover and assembled spotlight. Designed for ceiling or pendant installation.
• Available from 50cm up to 450cm
• Selection of different Spot Lights (Giota34, Giota40 Zoom, Giota65 or Giota85).
• Two different CRi (80 or 90).
• Three different CCT (2700K, 3000K or 4000K).
• Three different Optic-Diffuser (15® , 24® , 36®).
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White, Black or Grey powder coated and in Special Decorative
Black or Red Oxidation, Optionally in Special RAL.
• L90 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
