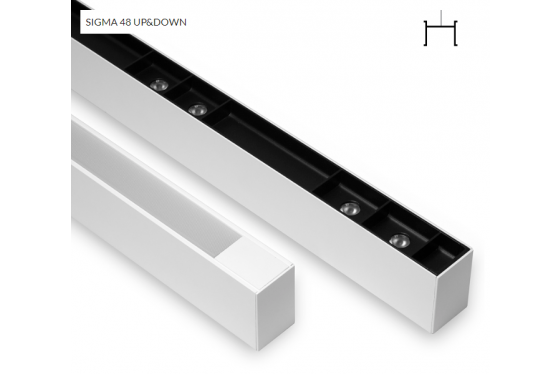

Alphabet SIGMA 48 UP&DOWN (48mm)
“SIGMA48” Up & Down...is a LED profile luminaire, made of an extruded aluminum, powder-coated with fine matte finish. Designed for pendant mounting with upligh, providing direct and indirect light emission through SMD 3W, 360Lm each with individual lenses. Linear louvers available for reduced UGR. Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3. Drivers On-Off or dimmable.
• Available from 21cm to 450cm.
• With SMD 3W, 360Lm each with Individual Lenses.
• Three different Lumen Output types.
• CRi80, Optionally CRi90.
• Available Individual Lenses 15°or 30° Beam Angle.
• CCT 3000K or 4000K, Optionally 2700K.
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth)
• Two different Cover Types (Dark Cover or Louver Cover).
• Coming in White, Black or Grey powder coated and in Special Decorative Black or Red Oxidation, Optionally in Special RAL.
• L80 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• Color Consistency <3SDCM.
• UGR <15.
