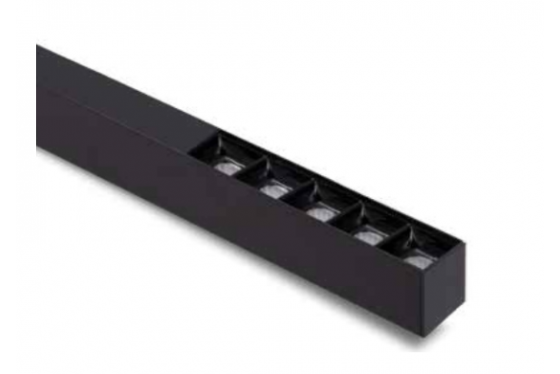

Alphabet ZETA 34 CEILING SHALLOW (34mm)

‘ZETA 34’ Ceiling is a LED profile luminaire, made of an extruded aluminum, powder-coated with fine matte finish. Designed for ceiling mounting, providing direct light emission through SMD 5*2W, 1100Lm each. Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3. Drivers ON-OFF or dimmable.

• Available from 13cm up to 450cm.
• Two different CRi (80 or 90).
• Three different CCT (2700K, 3000K or 4000K).
• Four different Optics-Diffusers (15° , 30° , 45° or Wall Washer).
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White, Black or Grey powder coated.
• L80 B20 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• UGR <16.
