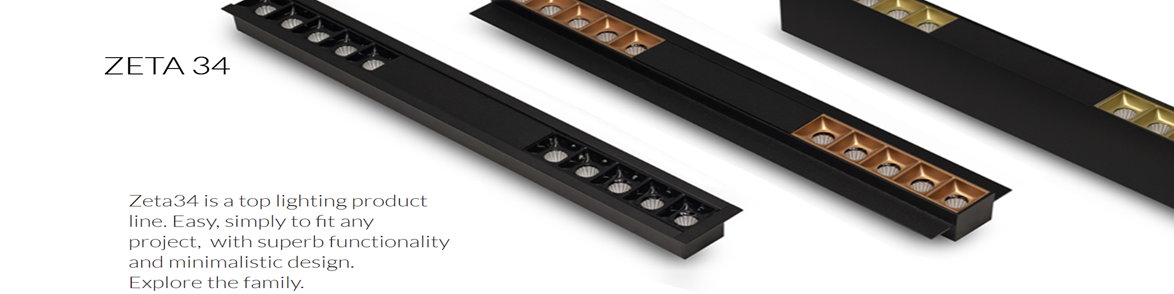

Alphabet ZETA 34 CEILING (34mm)

“ZETA34” a LED profiles, made of an extruded aluminum, powder-coated with fine matte finish. Designed for ceiling mounting, providing direct light emission through SMD 5x2W, 1100Lm each. Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3. Drivers On-Off or dimmable.
• Available from 13cm up to 450cm.
• Two different CRi (80 or 90).
• Three different CCT (2700K, 3000K or 4000K).
• Four different Optics-Diffusers (15° , 30° , 45° or Wall Washer).
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White, Black or Grey powder coated, Optionally in Special RAL.
• L80 B20 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• UGR <16.
