Phos pano surface grazer 45 – standard

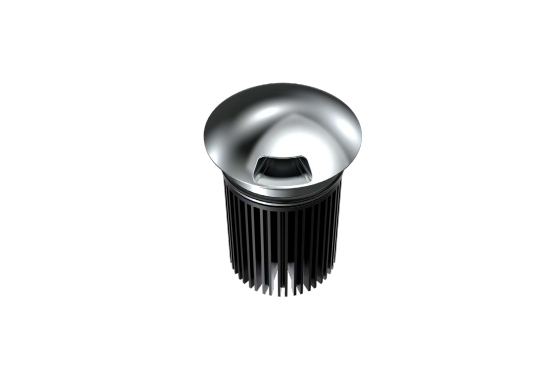

The Pano Midi Surface Grazer 45 is a semi-recessed, fixed in-ground or Wall Light luminaire with a ø54mm domed bezel. It
features a 45° aperture and is designed to “graze” light across the floor/wall.

Product Features

  • Uplight / Wall Light
  • Fixed
  • Interior / Exterior
  • LED
  • IP67
  • Available in all Phos finishes
  • Interchangeable optics & accessories (pre & post install)


Phos Standards

  • 60min fire-certified
  • Acoustic-rated
  • UK designed, manufactured and assembled
  • 5 year warranty

Physical Properties

  • Diameter Ø54mm
  • Height 70mm (4W/9W)
  • Height 95mm (14W)
  • Cut-out ø44mm


See specification for more information or click here
