Phos eclipse trimless square - standard

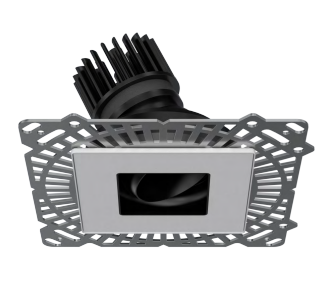

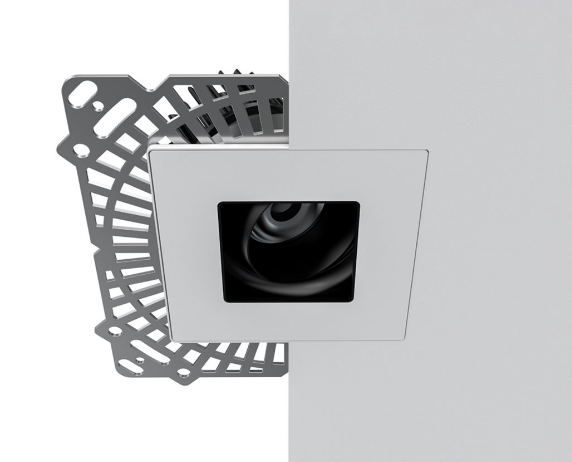

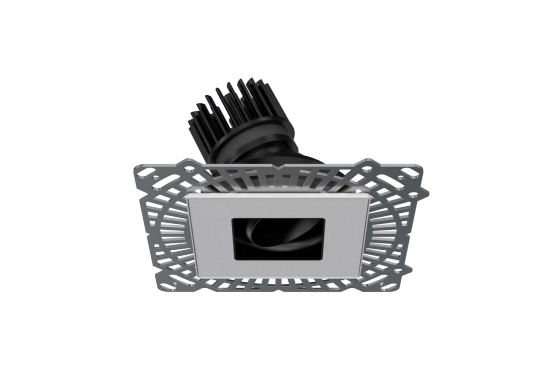

The Eclipse Trimless Squareis a recessed, tilt behind, adjustable downlight with a trimless plaster in frame and features a
beautifully sculpted anti-glare baffle.

Product Features

  • Downlight
  • Adjustable
  • Interior
  • LED
  • IP65
  • Available in all Phos finishes
  • Interchangable optics (pre & post install)

Phos Standards

  • 60min fire-certified
  • Acoustic-rated
  • UK designed, manufactured and assembled
  • 5 year warranty

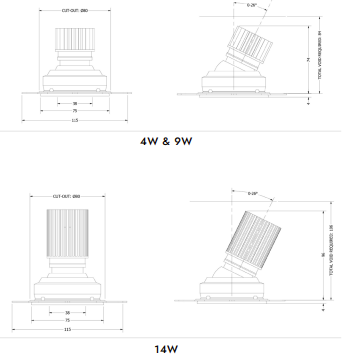

Physical Properties

  • Diameter 115X115mm
  • Height 78mm (4W/9W)
  • Height 10mm (14W)
  • Cut-out Ø80mm
  • Tilt Max 26°

See specification for more information or click here
