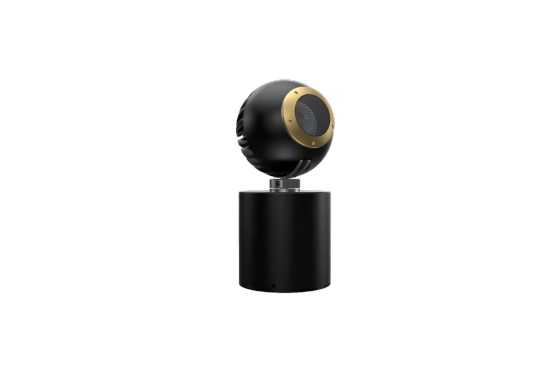

Phos orba exterior surface integral - standard

A BESA-compatible, surface-mounted enclosure housing an IP65 mains-dimmable driver. This model can be used in
conjunction with any of the other exterior options.

Product Features

  • Spotlight
  • Adjustable
  • Exterior
  • LED
  • IP65
  • Available in powder coated and anodised finishes
  • Interchangeable optics & accessories (pre & post install)

Phos Standards

  • 60min fire-certified
  • Acoustic-rated
  • UK designed, manufactured and assembled
  • 5 year warranty

Physical Properties

  • Diameter ø70mm
  • Height 143mm
  • Tilt Max 210°
  • Rotation 360°

See specification for more information or click here
