Downloads : technical modifications reserved

c1-vl_20210810_e (pdf)

Corporate friends C1-VL

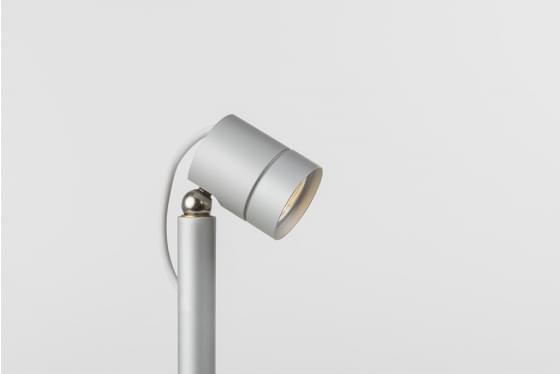

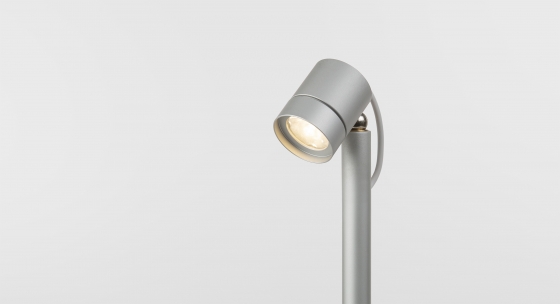

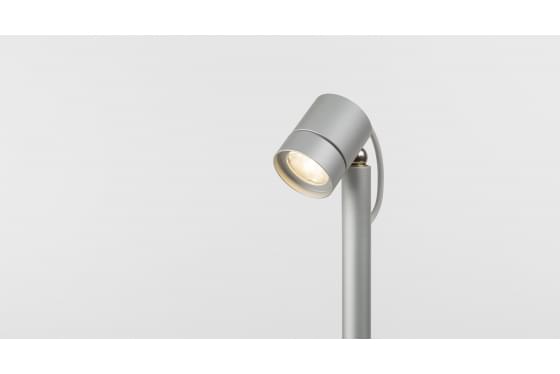

LED spotlight for installation in display cases, 180° rotatable, 125° swivelling, attachment with mounting flange

  • housing colour: aluminium anodised black, silver, gold
    (other surface finishing on request)
  • optics: 10°, 15°, 20°, 35°, 45°, 46°+ 10°
  • light colour (+/- 100K): ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K
  • high power LED, high CRI: DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10
  • max. luminous flux
    (~3,000 K | standard lens 20°):
    ~150 lm at ~2.1 W (71 lm/W)
  • power input: constant current up to max. 700 mA allowed LED driver: LED driver for the Micro Jolly, Mini Jolly, Maxi Jolly by TCI
    with constant current (other LED driver on request)
  • dimming: external via potentiometer (incl.)
  • protection class: IP 20, protection class III, CE
    UL Listed No. E506729 - low voltage LED luminaire
  • optional accessory: honeycomb grid, anti-glare tube, inclined tube, light diffusion foil, barn door, zoom optic (2° - 25°, 6° - 36°)

See specification for more information or click here
