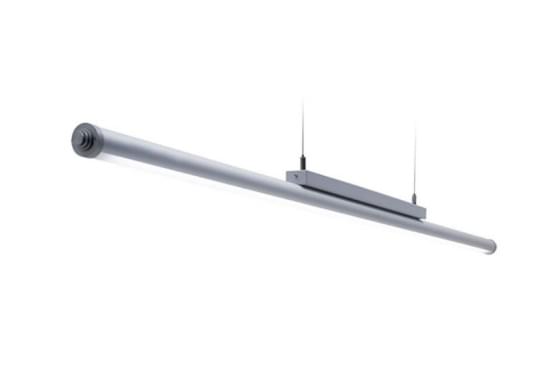

Encapsulite AP LED-ID

The AP LED ID is a slim tubular design that can be suspended, or surface mounted offering 100° light distribution through its polycarbonate satin diffuser. The sleek design includes an integral driver and can suit any modern interior space. The AP LED ID is an incredibly attractive linear lighting solution that makes use of efficient LED technology and offers dimming options for a controllable level of light output.

  • Switched or DALI dimming options available
  • Suspended or surface mounted
  • Integral driver in a box on the back of the fitting
  • Suitable for almost any interior application

Fittings are supplied with slotted brackets, suspension kits need to be purchased separately.

Technical Info

  • Light Source Information: LED Integral Driver
  • Optics: Satin polycarbonate diffuser
  • Dimming: 1-10V or Dali
  • Installation: Horizontal, angled suspension or surface mounted
  • Source Info: LED boards
  • Lumens: 3465lm – 4085lm
  • Colour Temp: 3000K, 4000K
  • Lifetime: Up to 50,000hr
  • Voltage: 230V, 50-60Hz
  • Safety Class: I
  • IP Rating: IP20

See specification for more information or click here
