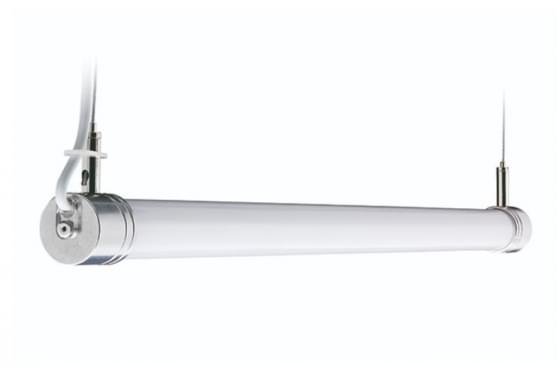

Encapsulite 24V RD Twin Stick

The 24V RD Twin Stick is a robust, slim LED diffused cylindrical tube with the latest LED chips creating a cleaner 360° light output. The fitting can be suspended horizontally, vertically or at an angle, as well as surface mounted.

Can also be used with our coloured sleeves to create a striking feature luminaire. Regularly used in theatre, TV, retail, events and entertainment industries for high-impact feature lighting.

  • Suitable for almost any dry interior application
  • Operated from 24V constant voltage driver
  • Dimmable options are available
  • Suitable for use with coloured sleeves
  • Installation can be suspended at any angle or surface mounted
  • Aluminium end caps provided

Fittings are supplied with clear mounting brackets, suspension kits need to be purchased separately.

Technical Info

  • Light Source Information: 24V LED Remote Driver Change
  • Drivers Available: 30W, 75W, 100W/ DALI, 100W 1-10V, 60W leading/trailing edge
  • Dimming: DALI or 1-10V
  • Optics: Satin polycarbonate diffuser
  • Installation: Horizontal, vertical, angled suspension or surface mounted
  • Source Info: LED boards
  • Lumens: 480lm – 1450lm
  • Colour Temp: 3000K, 4000K, Other colours on application
  • Lifetime: Up to 50,000hr
  • Voltage: 24V DC
  • Safety Class: II
  • IP Rating: IP20

See specification for more information or click here
