Corporate friends R-SL-16-V

LED light bar, profile Ø 16mm, 360° rotatable

  • housing colour: aluminium anodised black, silver, gold
  • LED-type: mid power LED, high CRI
  • lifetime: 50,000 hours
  • basis of lifetime: L70B10
  • compliant to EMC: DIN EN 55015:2013
  • light colour (+/- 100K): ~2,700K, ~3,000K, ~4,000K
  • max. luminous flux: ~900lm/m
  • max. power consumption: ~15W/m
  • LED driver: external
  • power input: 24V DC constant voltage
  • dimming: external
  • protection class: IP 20
  • optic:
    linear optics with ~22°, ~35°, ~50° or ~55°
  • allowed power supplies:
    -power supply for the PWM by MeanWell with constant voltage 24V DC, class 2
    -additional power supply is required for C1-mini-R-SL spotlight:
    LPF, LPV, NPF or APV by MeanWell with constant voltage 12V DC, class 2
    (other power supplies on request)
  • additional accessory:
    -anti-glare profile 13.6 x 13.6mm, anodised aluminium
    or powder-coated according to RAL
    -light diffusion foil

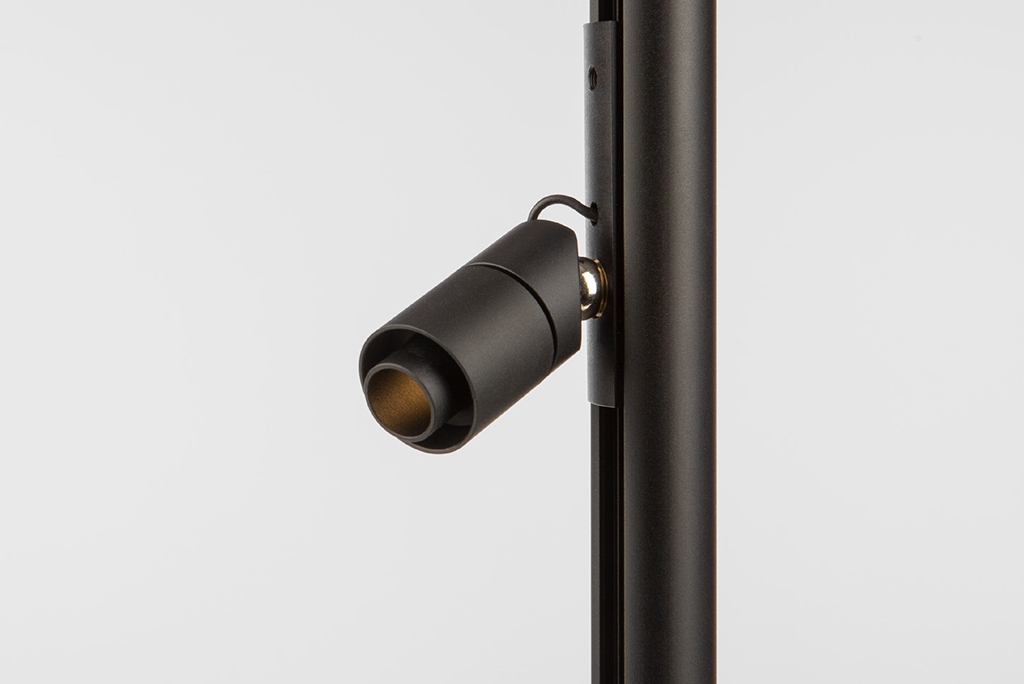

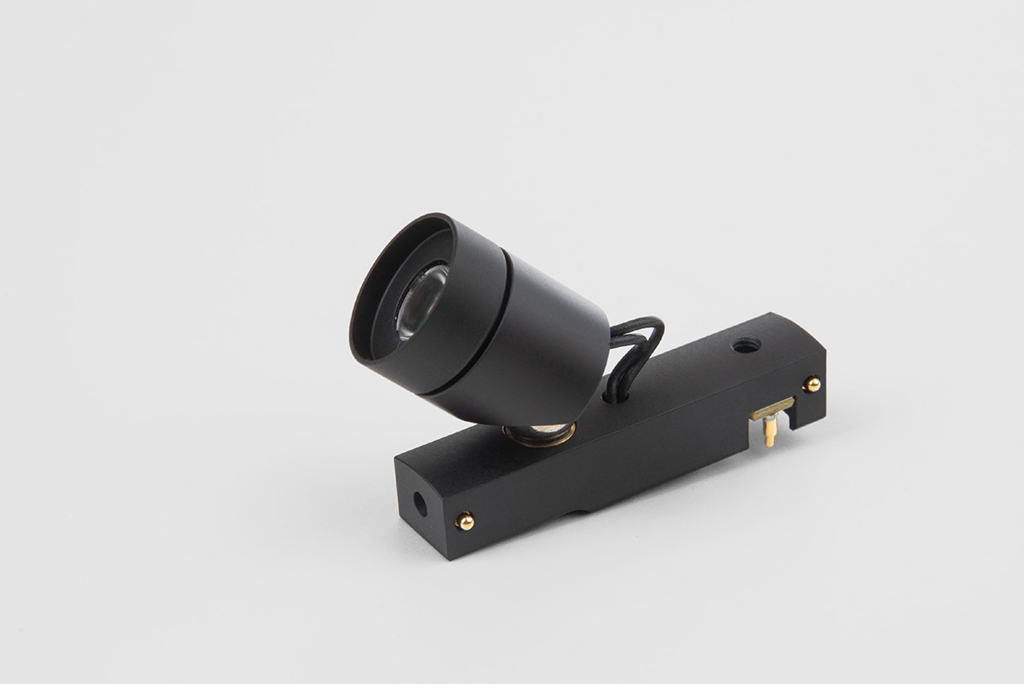

    -LED spotlight C1-mini-R-SL
