Corporate friends C1-WL

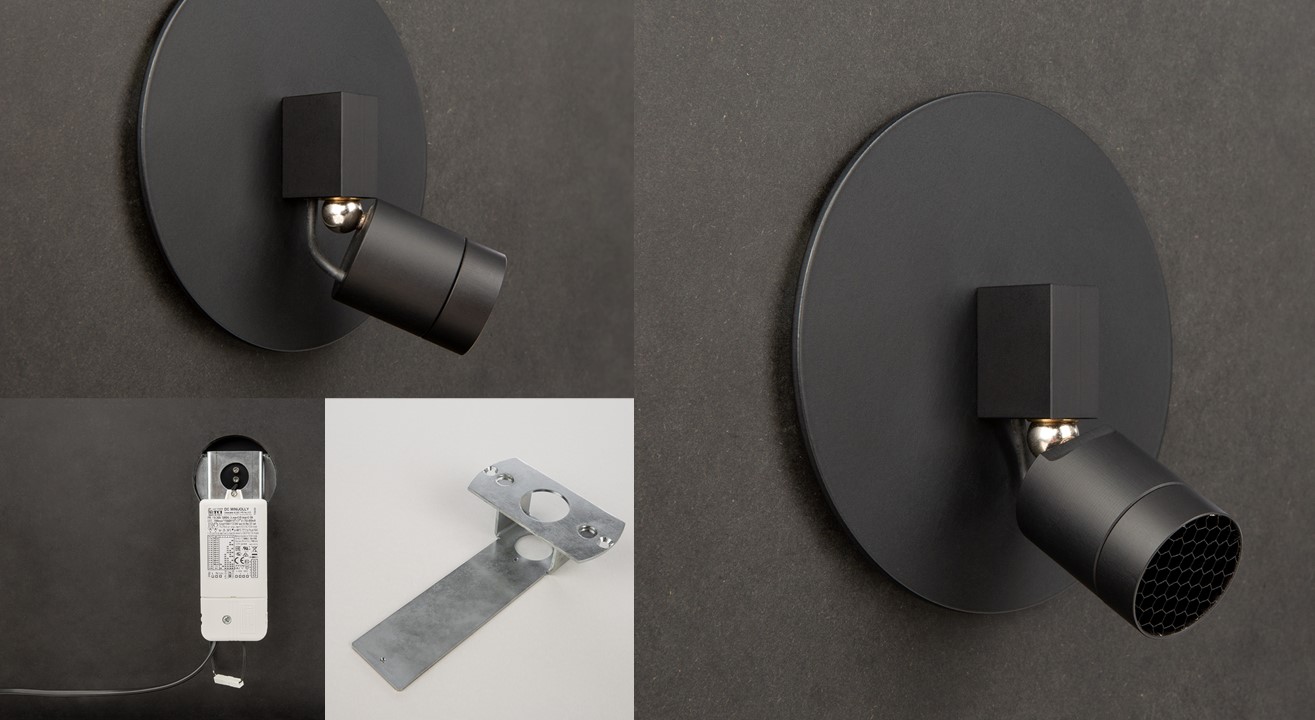

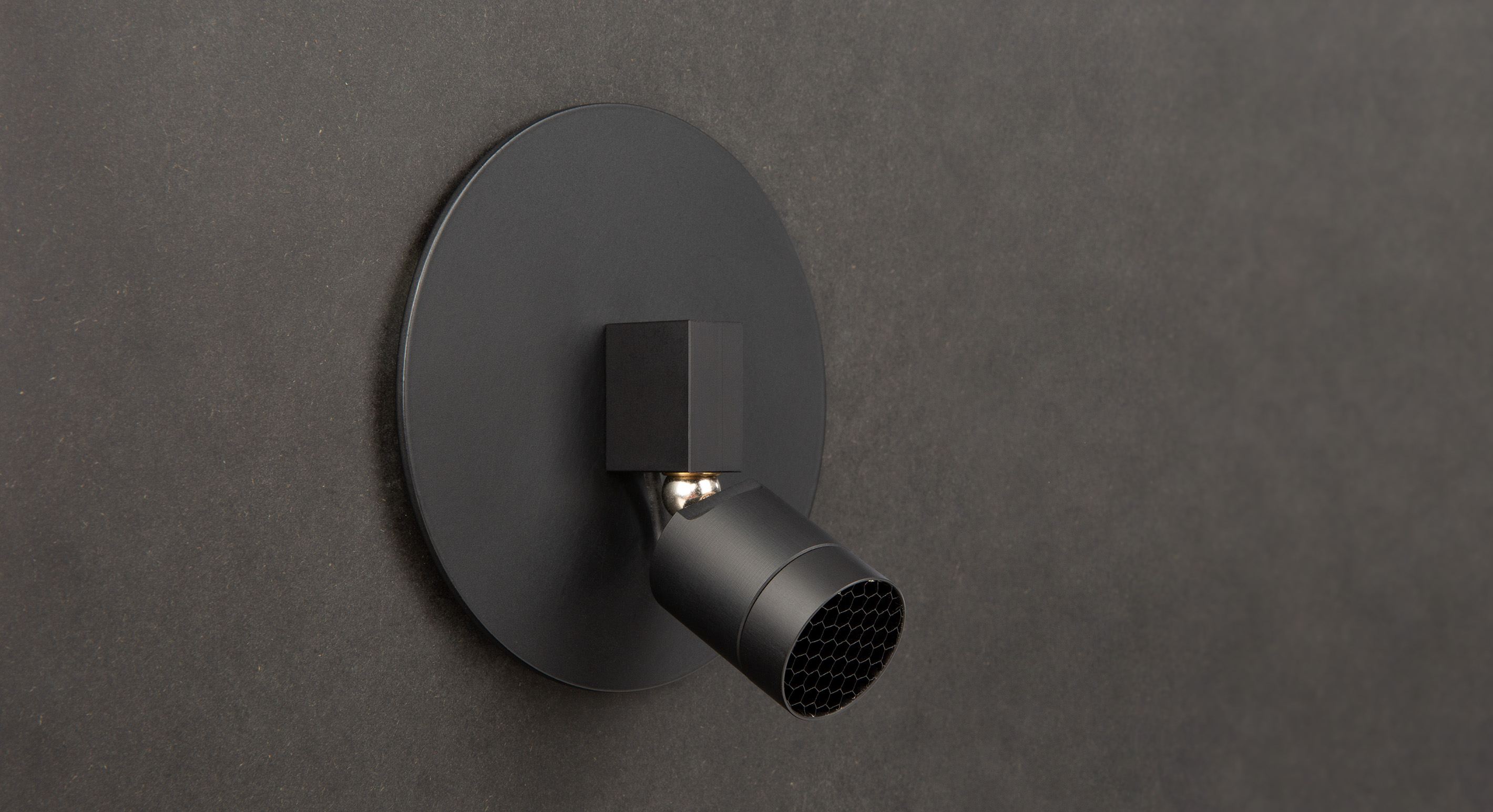

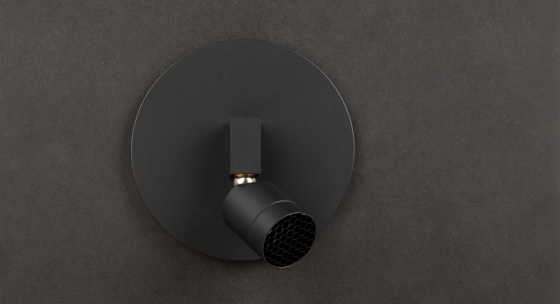

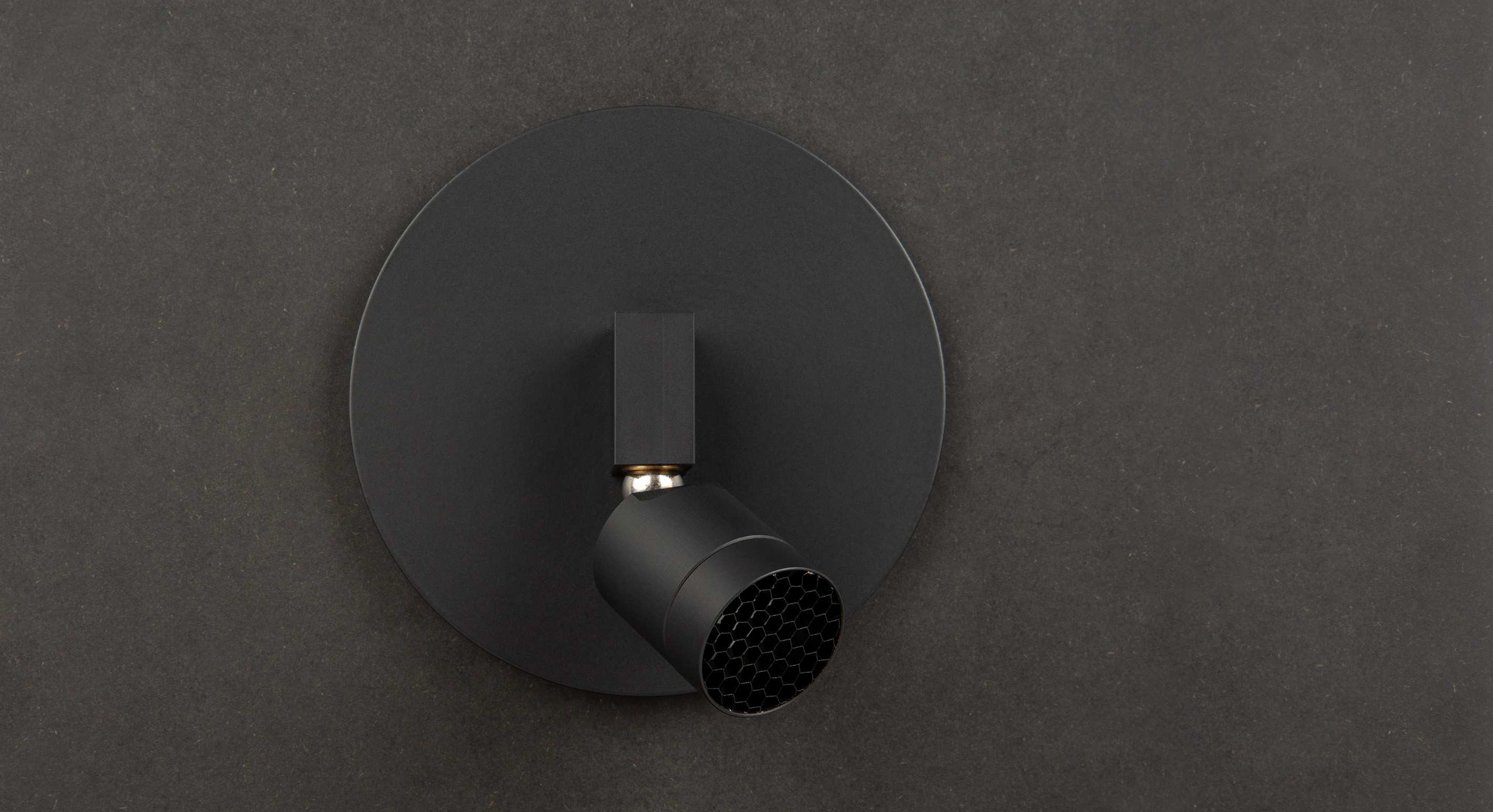

LED wall lamp,
180° rotatable, 180° swivelling

  • housing colour: aluminium anodised black, silver, gold
    (other surface finishing on request)
  • light colour (+/- 100K): 2700K, 3000K, 3500K, 4000K, 5700K
  • luminous flux (~3,000 K | 20° | 500 mA): ~150 lm at ~2.1 W (71 lm/W)
  • power input:500 mA (constant current)
  • allowed LED driver: LED driver for the Micro Jolly, Mini Jolly, Maxi Jolly by TCI
    with constant current
    (other LED driver on request)
  • dimming: external via potentiometer (incl.)
  • protection class: IP 20, protection class III, CE,
    certification on request
  • optional accessories:
    honeycomb grid, anti-glare tube, inclined tube, light diffusion foil, barn doors,
    zoom optic (2° - 25°, 6° - 36°)


See specification for more information or click here
