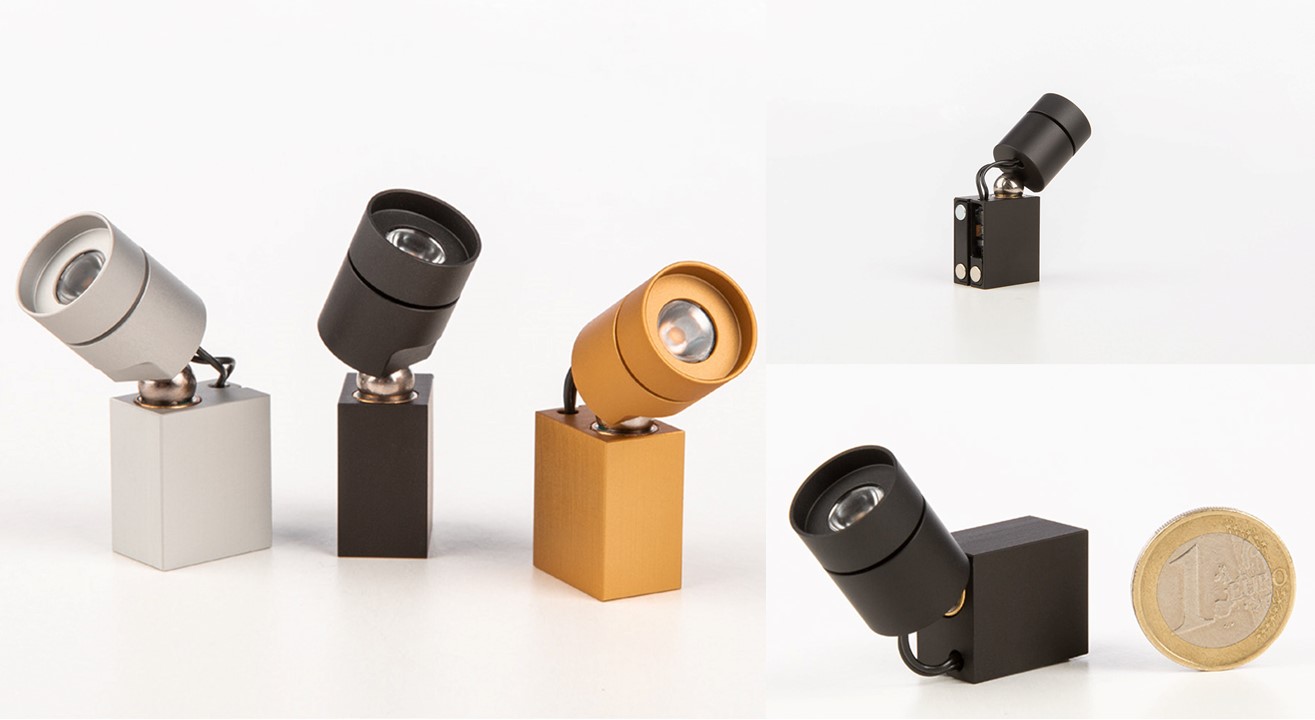

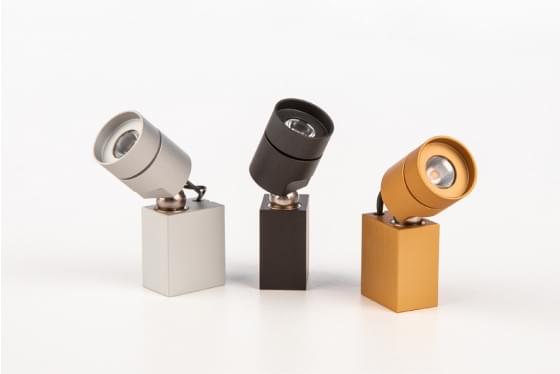

Corporate friends C1-mini-UHC

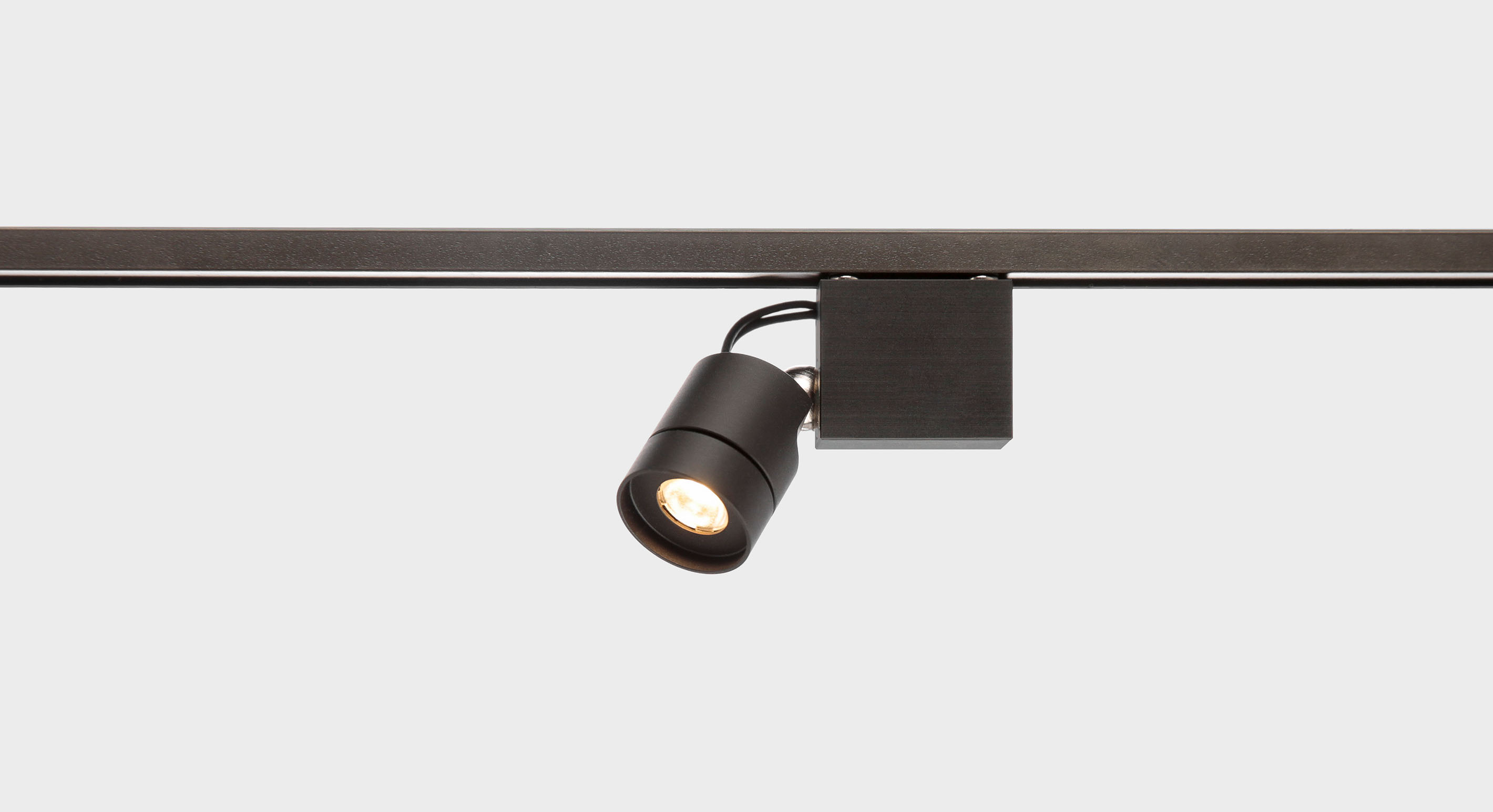

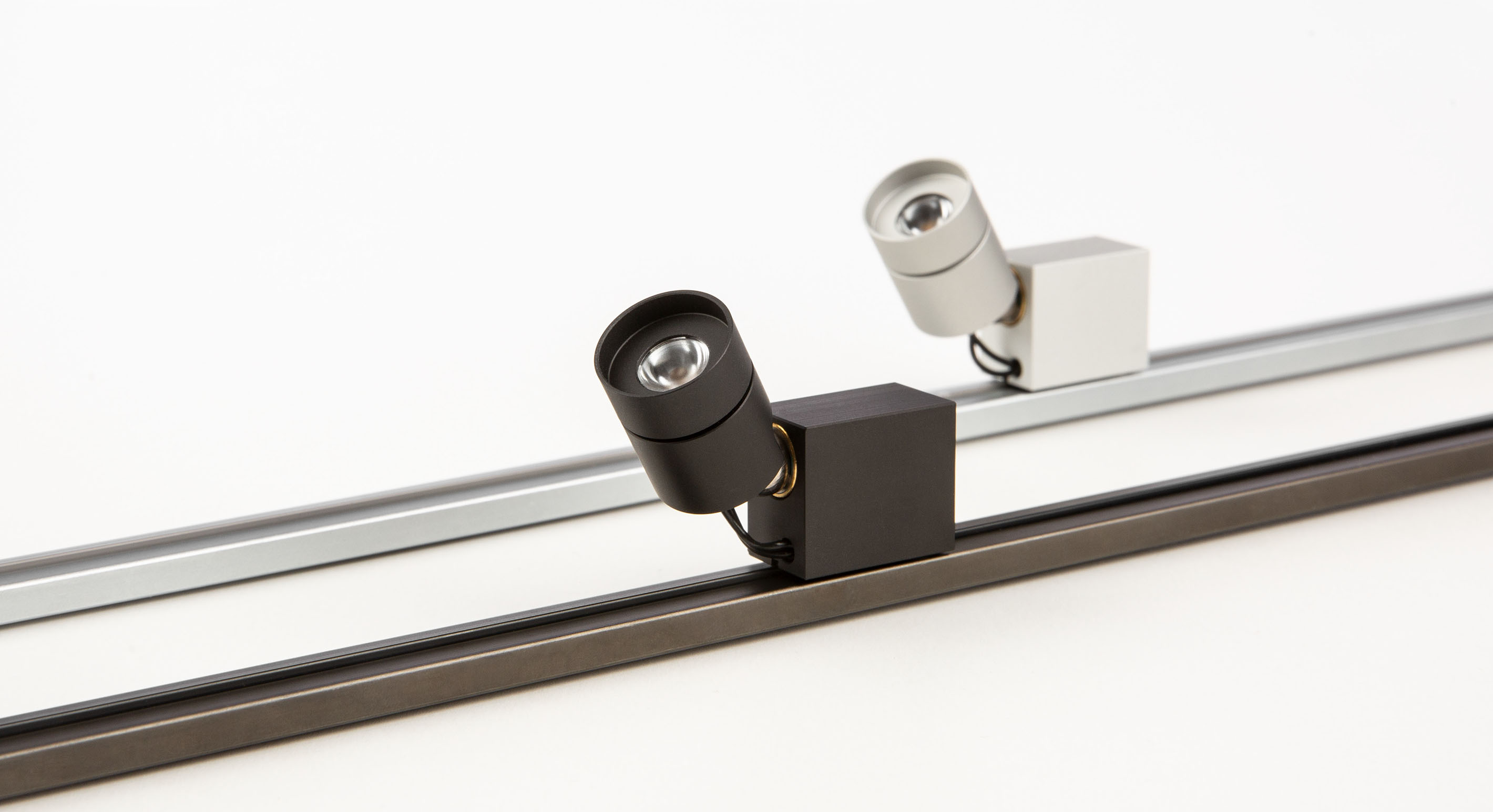

LED spotlight for installation on magnetic track
180° rotatable, 90° swivelled

  • housing colour: aluminium anodised black, silver, gold
    (other surface finishing on request)
  • light colour (+/- 100K): 2700K, 3000K, 4000K, 5700K
  • max. luminous flux: 140lm
  • max. power consumption: 2.3W
  • LED driver: internal
  • power input: 12V DC constant voltage
  • dimming: external
  • protection class: IP 20
  • accessory: magnetic track (11 x 7 mm), holders
  • additional accessory:
    - lenses: 15°, 18°, 26°, 30°, 45°, 80° und 47°+ 25°, 40°+ 10°
    - honeycomb grid, anti-glare tube, inclined tube, snoot, light diffusion foil, barn door
    - zoom optic


See specifications for more information or click here
