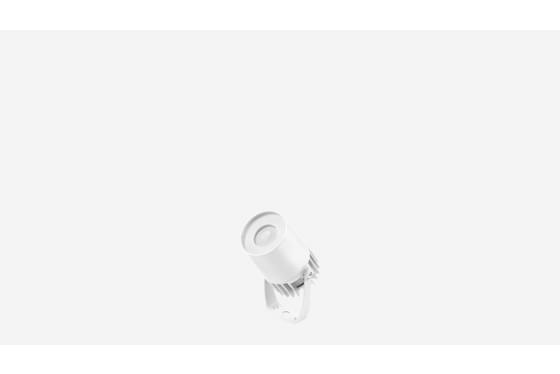

Reggiani Envios IP66- Projectors

Envios IP66 is a resistant, versatile and highperformance exterior projector with IP66 protection rating. Designed in collaboration with LAPD Consultants, Envios IP66 is a range of luminaires which perfectly satisfy the complex functional requirements of outdoors installations, including fixed and adjustable surface mounting units and a range of accessories to expand its applications: cable, pole, wall, branch, column and spike mounting.

* Output up to 8120 lm
* Protection rating IP66
* Available in three sizes: Ø84mm, Ø126mm and Ø226mm
* Extra-light tempered glass, resistant to thermal and mechanical shocks
* Silicon rubber cable gland for cascaded electrical connection
* Adjustable bracket with graduated goniometer for precise projector orientation;
* Can be fitted with no-glare grille, 45° visor
* Accessories for suspended mounting on cable and chains, poles, wall mounting with fixed and adjustable brackets, on branches and columns or in the ground with spikes or boards.

See specification for more information or check http://www.reggiani.net/projectors/family/envios-ip66
