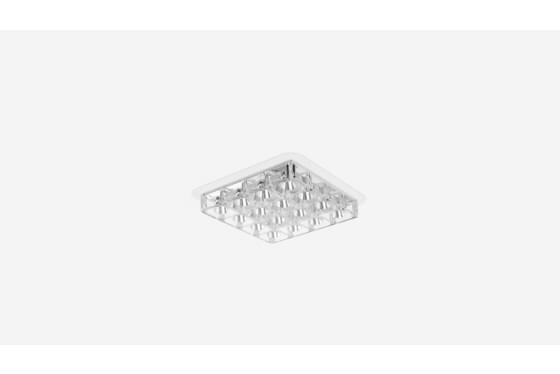

Reggiani Cells recessed- Drop OUTDOOR

Developed on the basis of the surface-mounted version, recessed Cells adopts the same advanced control optics so it is possible to select the best option for general lighting or bespoke applications. The range offers two diffuser options - flush and drop.

* New version of the CELLS luminaire for ceiling-mounted recessed installation
* Installation recess depth of only 10 cm
* Two versions: with flush diffuser and with drop diffuser
* LED sources placed in recessed position to maximize visual comfort (UGR < 19 for version with narrow, medium, rectangular and asymmetric beam)
* Degree of protection: IP66 / IK10
* Bezel: stainless steel or finished in white, grey or graphite
* Die-cast aluminium body
* High resistance (IK10) and high transmittance plastic diffuser (transparent and opal)
* Standard light distributions available: narrow, medium, wide, very wide, asymmetric, rectangular and double asymmetric, as well as bespoke distribution options
* Emergency version available (3-hr back-up)
* Control systems: On/Off, Dali, Dim1-10V, Phase-cut, DALI + Bluetooth
* Remote driver enclosure (IP66)
* Coloured plastic plates finished in red, green, yellow, blue, grey, white, graphite or chrome
* LED colour temperature: 3000K, 4000K
* Wattage: 13 W (for environments with temperatures up to 50° C) and 18 W
* Efficacy up to 94 lm/W

See specification for more information or check http://www.reggiani.net/recessed-ceiling-luminaires/family/cells-recessed-drop
