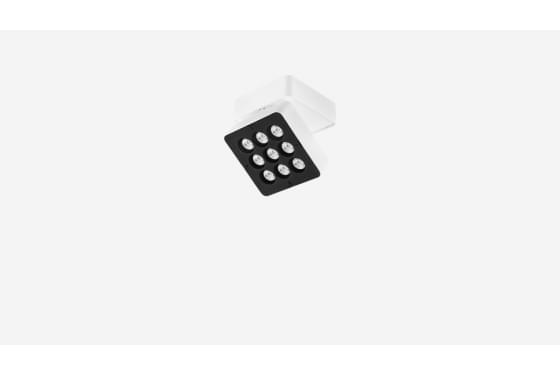

Reggiani Splyt surface

System of luminaires for interiors, born of the specific requirement to offer high performance optics with an optical compartment thickness of just 40mm, SPLYT is a further result of Reggiani's collaboration with leading British lighting designers, LAPD Consultants. The system enables the fixture mounting to adapt to the specific requirements of the project, with semi-recessed, track, surface and wall mounting options.

* LED lamps.
* Available in two sizes: 120x120mm and 150x150mm.
* Luminous flux up to 3025 lm and CRI > 90.
* Optics designed for narrow, medium and wide beams.
* Recessed-mounting version available with bezel and trimless.
* Special mounting adjustable in two dimensions: 290° horizontal, 90° vertical.
* Available with on-board 10-100% dimmer.
* Product can be equipped with: honeycomb grille, no-dazzle visor and wall-washer lens.

Check http://www.reggiani.net/ceiling-mounted-luminaires/family/splyt-surface for more information.
