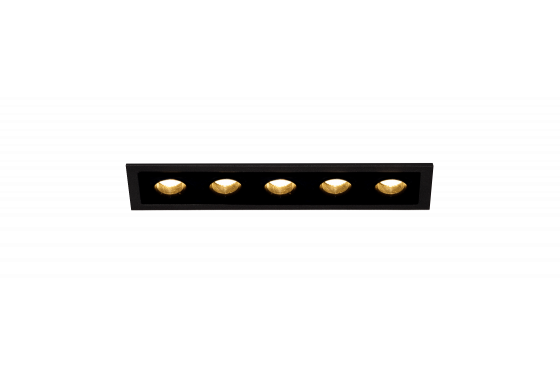

Lucent Lighting Line Flare 5LED Trim/ Trimless

Line Flare 5LED Trimless: Five LED trimless downlight with low-glare flare apertures and separate plaster-kit for plaster ceilings. Available in black and white fine texture finish. Also available with cube apertures.

  • Overall Dimension:133 x 35mm
  • Overall Height: 50mm
  • Required Depth: 75mm MIN
  • Ceiling Cut Out: 139 x 35mm
  • Ceiling Thickness: 25mm MAX
  • Ingress Protection: IP20
  • First Fix Requirement: Yes


Line Flare 5LED Trim: Five LED trimmed downlight with low-glare flare apertures. Available in black and white fine texture finish. Also available with cube apertures.

  • Overall Dimension: 145 x 41mm
  • Overall Height: 50mm
  • Required Depth: 75mm MIN
  • Ceiling Cut Out: 139 x 35mm
  • Ceiling Thickness: 25mm MAX
  • Ingress Protection: IP20


See specification for more information or checkĀ
