Downloads : technical modifications reserved

specificatieledwave (pdf)

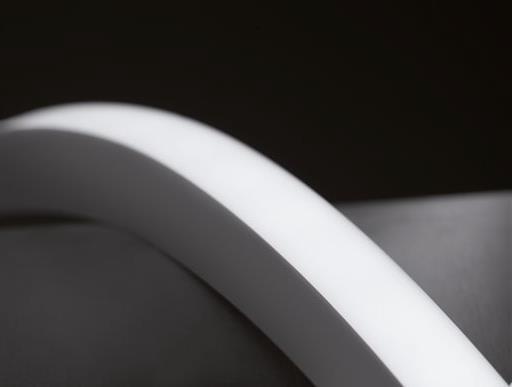

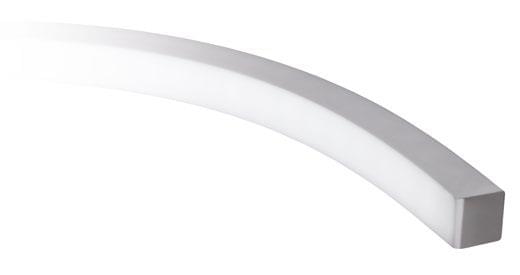

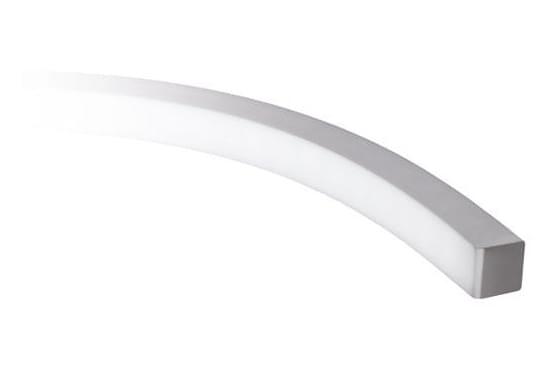

LAM32 LED Wave/ LED Wave mini

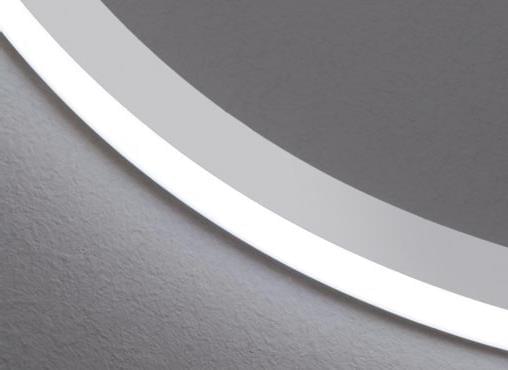

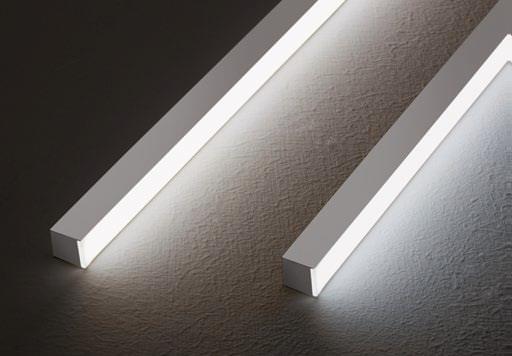

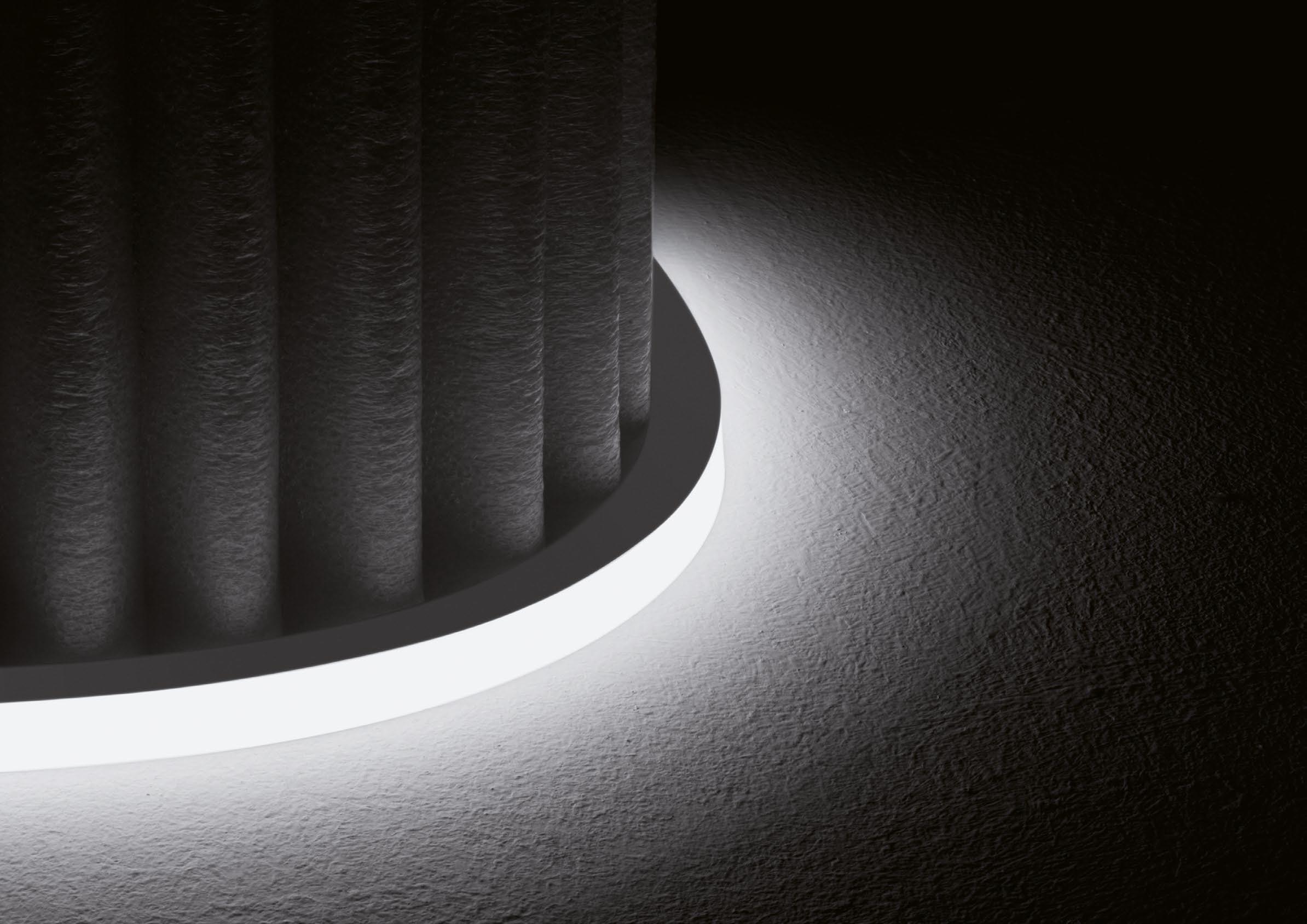

Luminaire designed for front accent lighting through installation
on appropriate hidden housings or surfaces with a curved shape.
Suitable for LED sources, it is made of a Kapton flexible circuit
with SMD electronic components, coated with 2 layers of a specific
polyurethane compound with differentiated density. Protection
degree IP65 or IP67. The luminaire can be installed using
appropriate clips to be ordered separately or through adhesive
with a low acetic content. The luminaire is supplied with rear cable
output. It is equipped with a 1m long cable for connection to the
24VDC power supply line. 24VDC Electronic driver to be ordered
as an accessory.


See specification for more information.
