Downloads : technical modifications reserved

specificatielam32slimsystem (pdf)

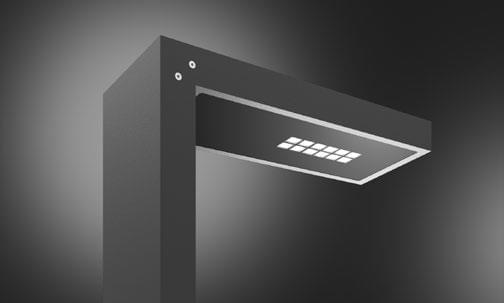

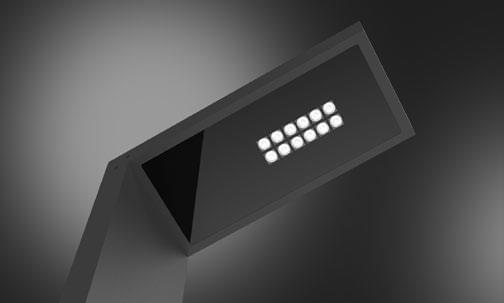

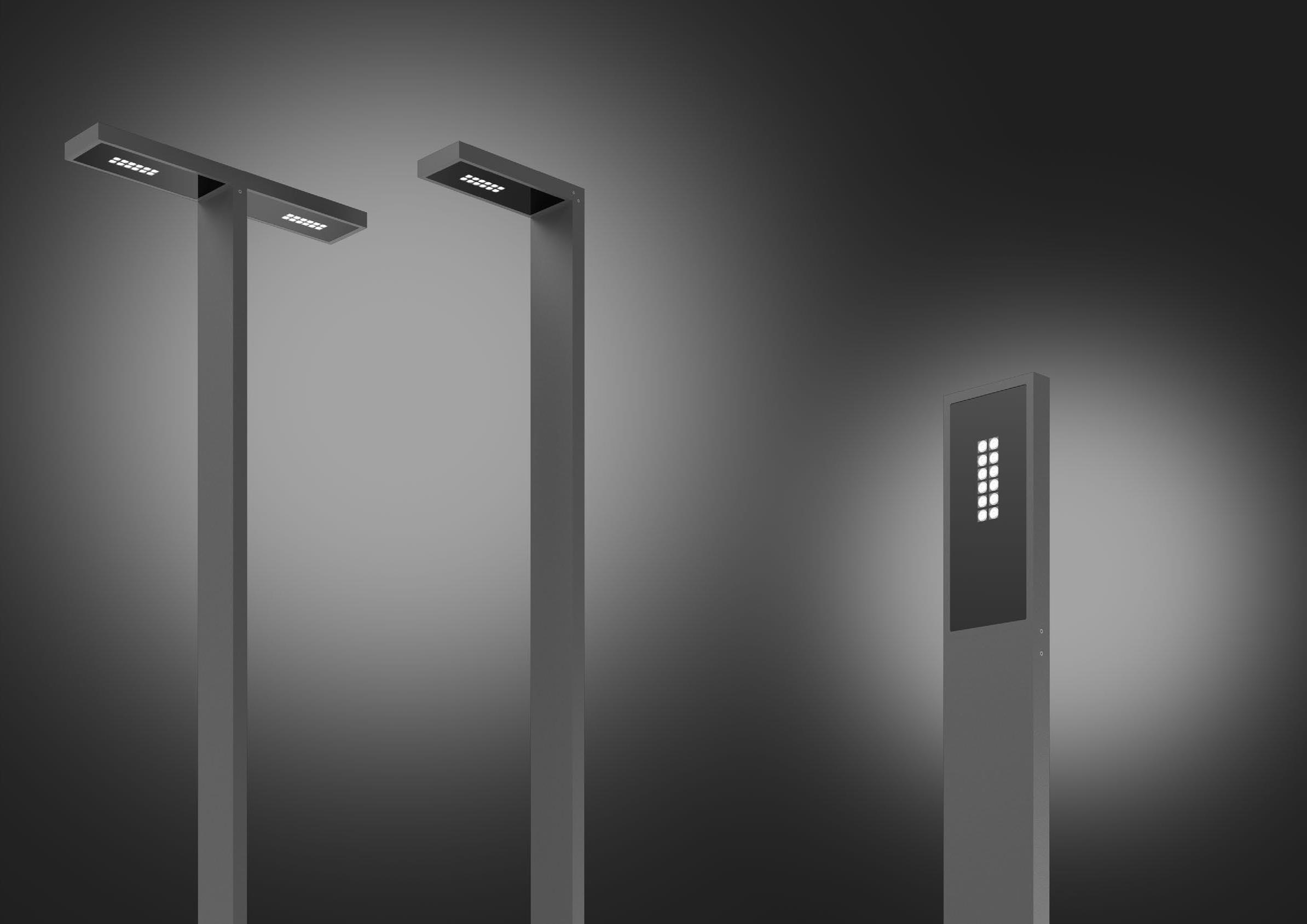

LAM32 Slim System

System designed for floor installation in urban or private areas.
The luminaires are suitable for high power LED sources. The body
made of alluminium, is painted with polyester powder coated to
guarantee durability over time and maximum resistance against
atmospheric agents. The PMMA square-based optics, allow the
propagation of the light beam for long distances. Closing diffusers
in tempered and screen-printed glass are integral to the body
through a special glue-sealant used in shipbuilding. It is composed

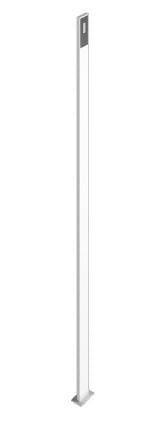

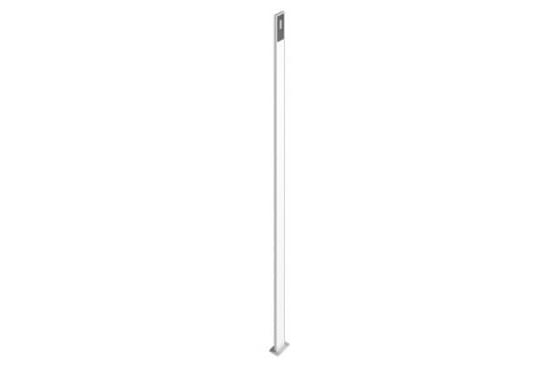

by a tubular pole with rectangular section, ground fixing plate in
extruded aluminum with 10mm thick welded to the pole, both are
in polyester powder coated stainless steel. The protection degree
IP66 is guaranteed by a special waterproof cable gland. The
integrated power supply allows its mains voltage.


See specification for more information.
