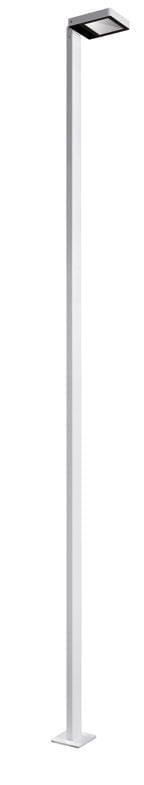

LAM32 Flat System

The quality of the design blends with the most advanced technology, giving life to Flat System, an elegant and minimalist solution for lighting external spaces of various kinds. Supports make  possible the realisation of complete and high quality light systems. The purity of the lines perfectly satisfies any urban and landscape requirements allowing it to be used in any situation.

System designed for floor installation in urban or private areas. The luminaires are suitable for high power LED sources. The body made of aluminium, is painted with polyester powder coated to guarantee durability over time and maximum resistance against atmospheric agents.

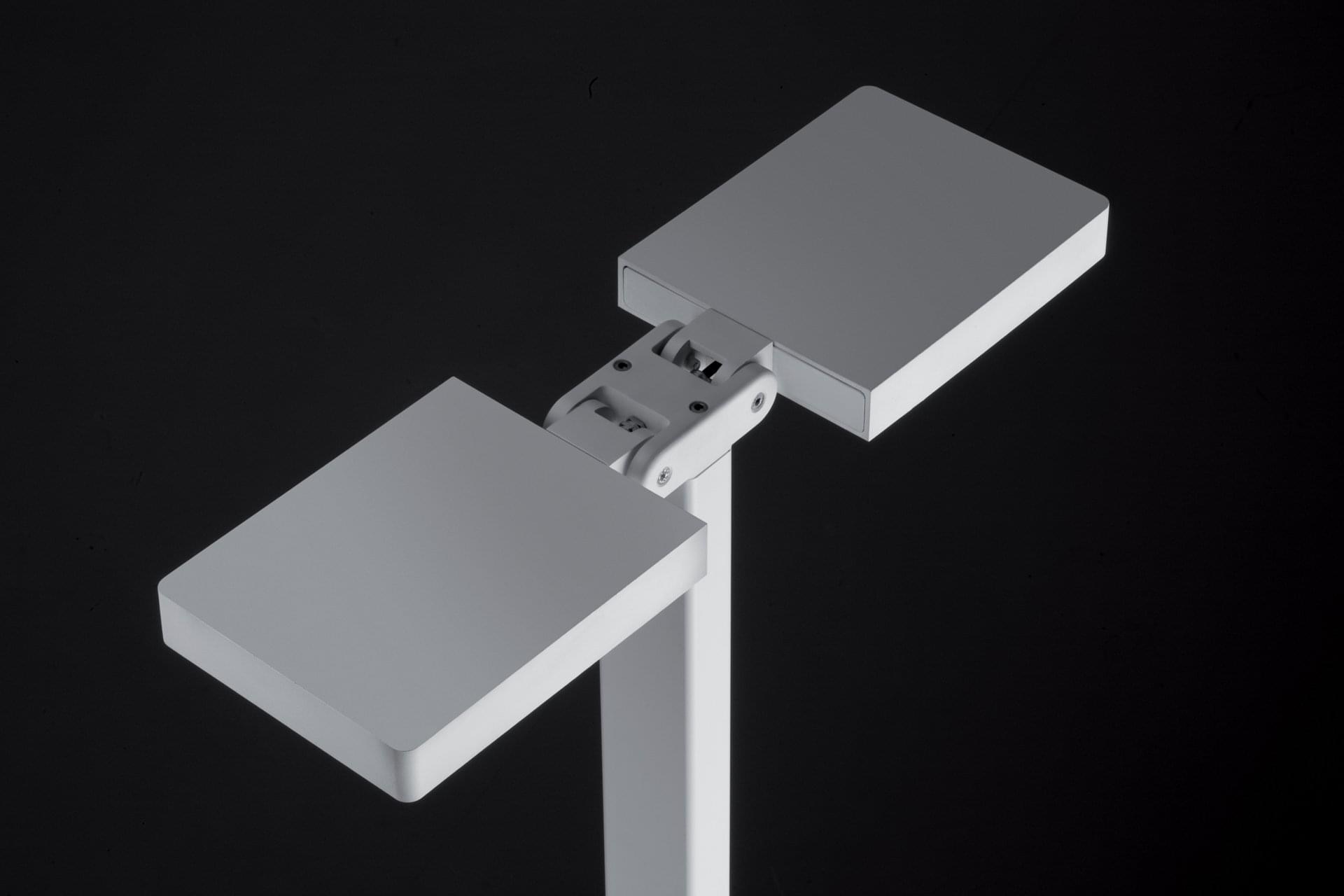

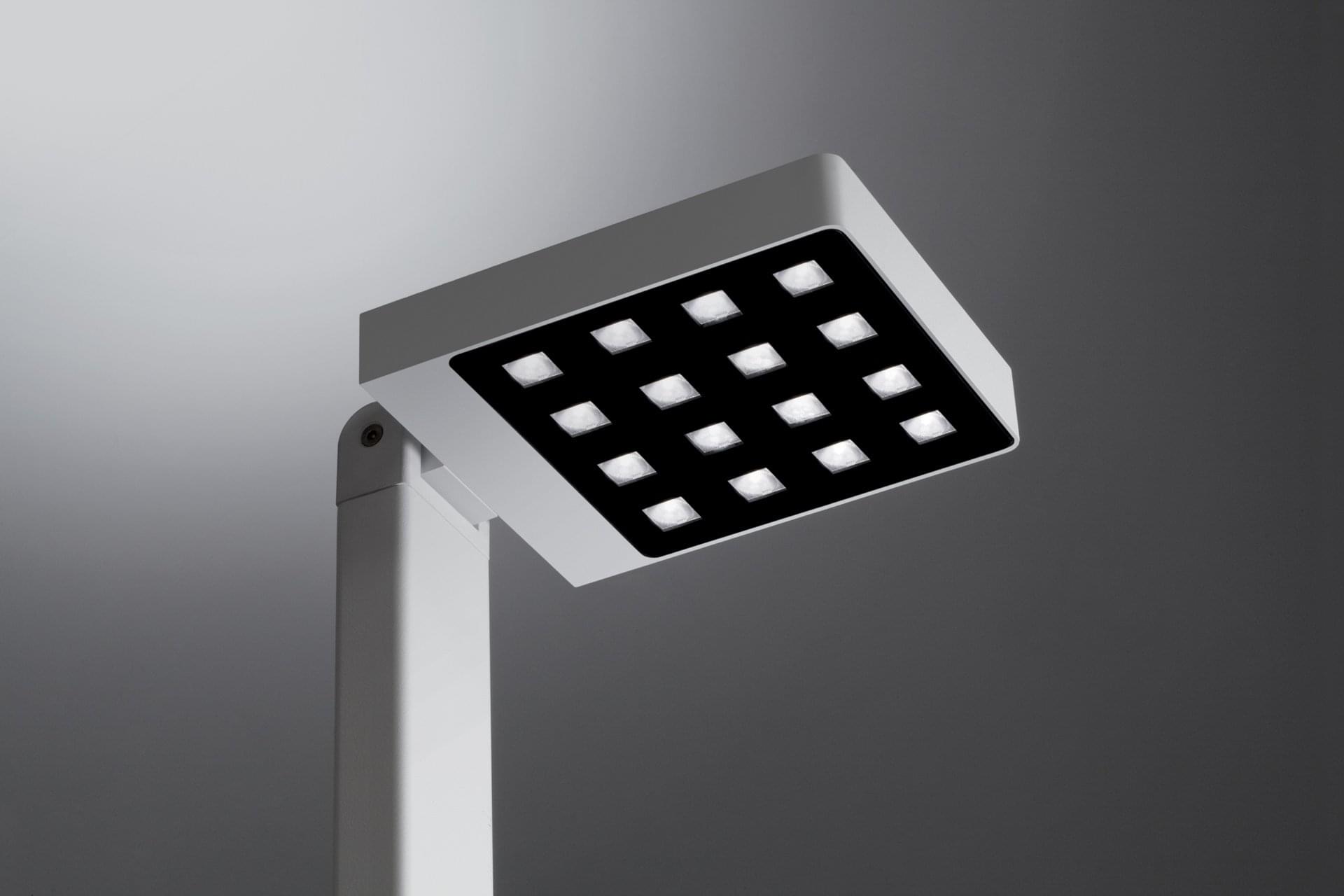

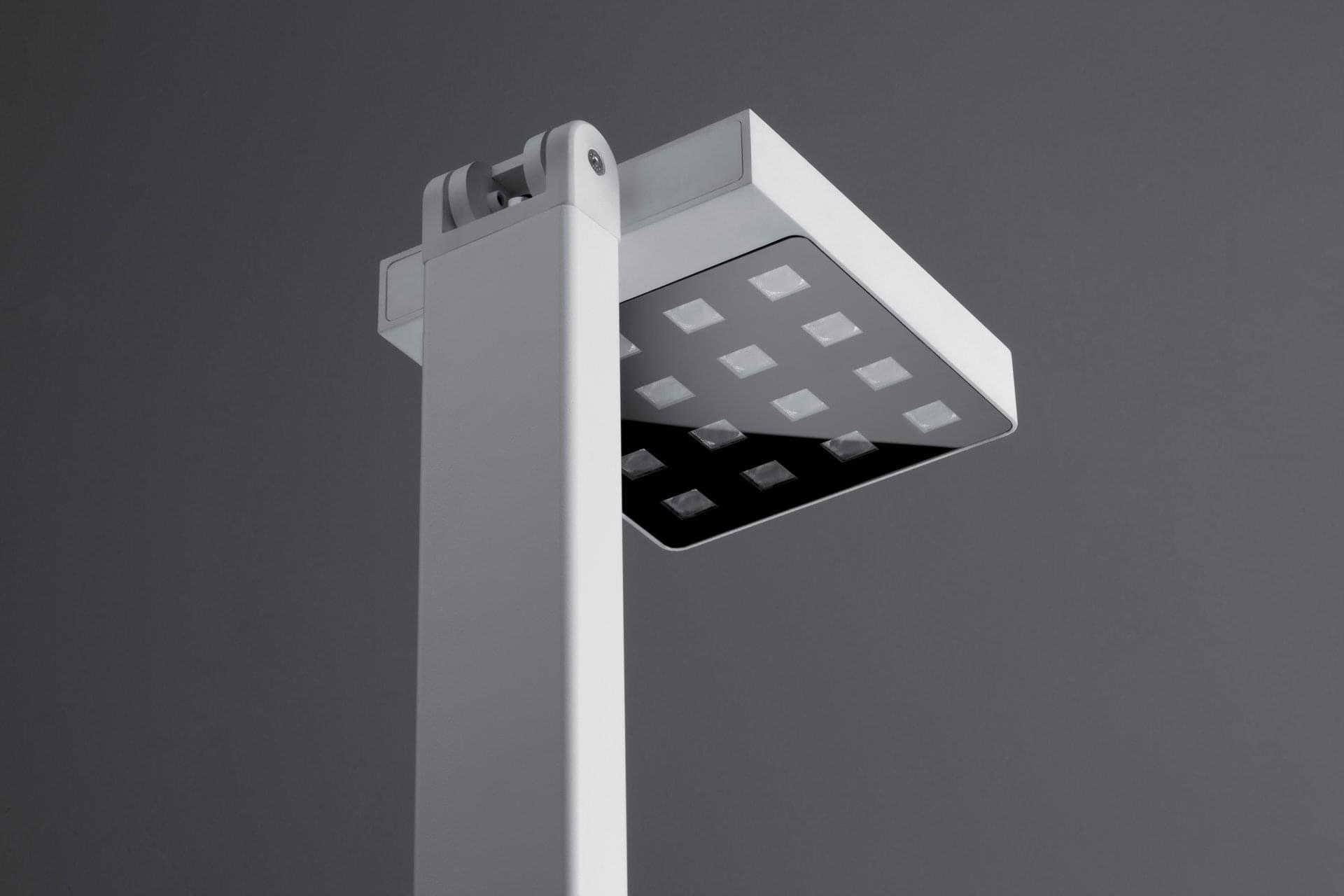

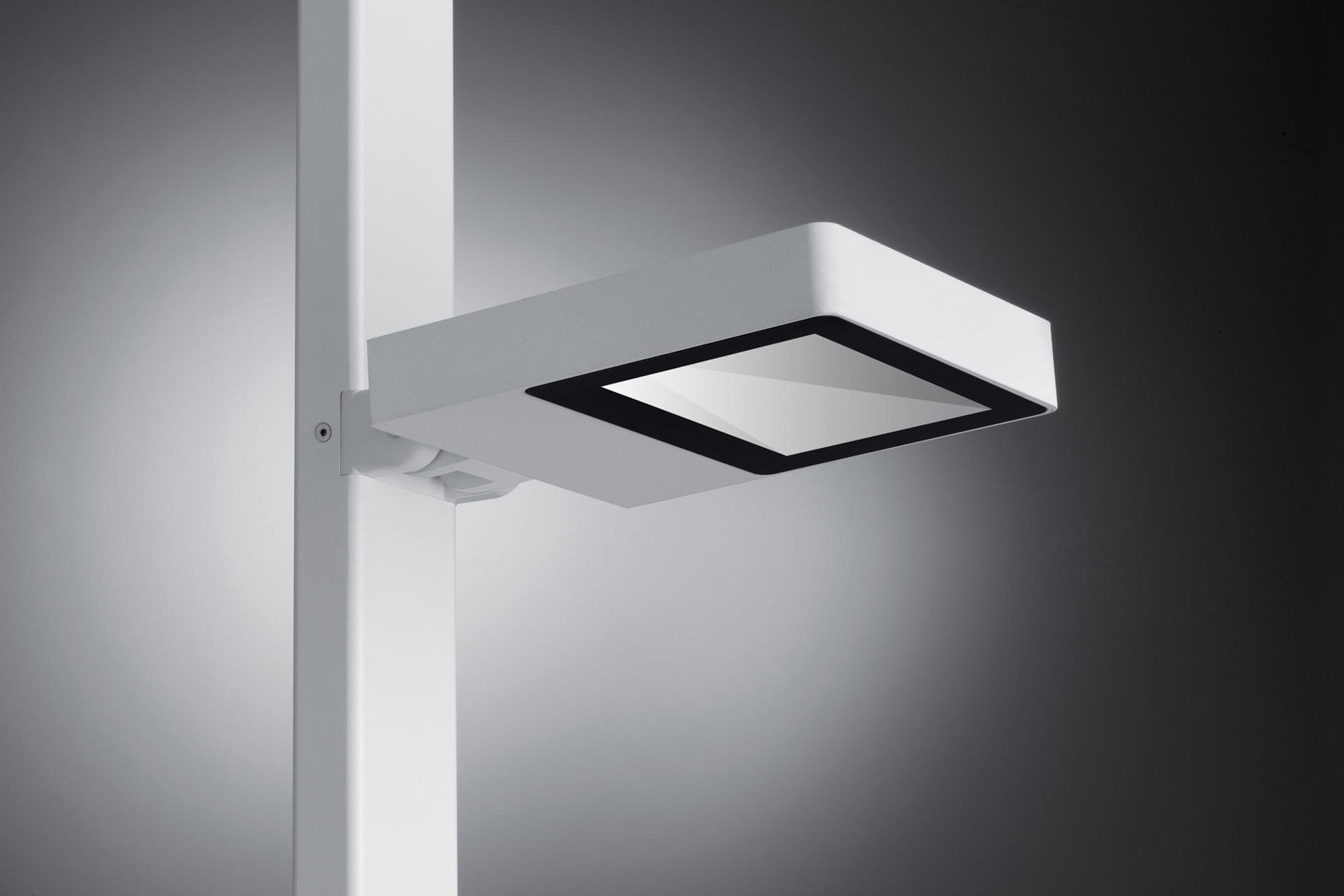

The PMMA square-based optics, allow the propagation of the light beam for long distances. Closing diffusers in tempered and screen-printed glass are integral to the body through a special glue-sealant used in shipbuilding. Adjustable arms are made of anodized aluminium up to 18 micron and polyester powder coated. It is composed by a tubular pole with rectangular section, rounded corners and ground fixing plate in sheet with 10mm thick welded to the pole, both are in polyester powder coated stainless steel.


The protection degree IP66 is guaranteed by a special waterproof cable gland. The  integrated power supply allows its mains voltage power supply. Luminaire’s installation is allowed thanks to screws for direct fixing to the floor or appropriate flush fixing counter-plate in steel sheet with anchor bolts for concrete planting. It is equipped with a 1m long neoprene cable outgoing from the pole, for connection to the supply line through appropriate connection systems to be ordered separately.


See specification for more information.
