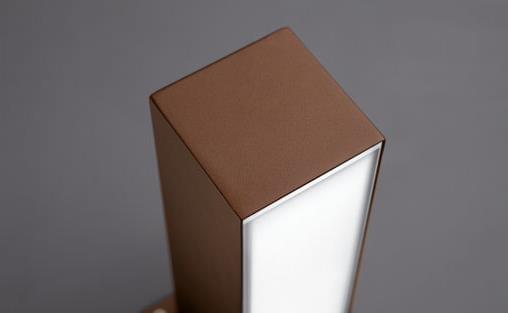

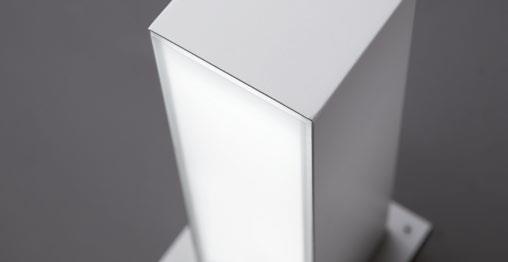

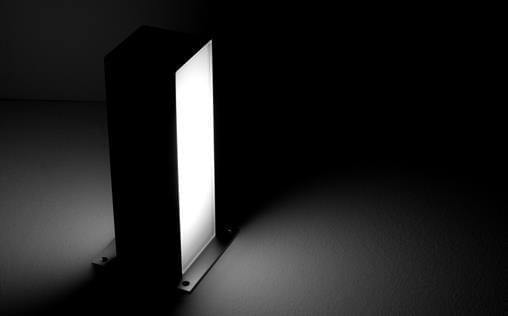

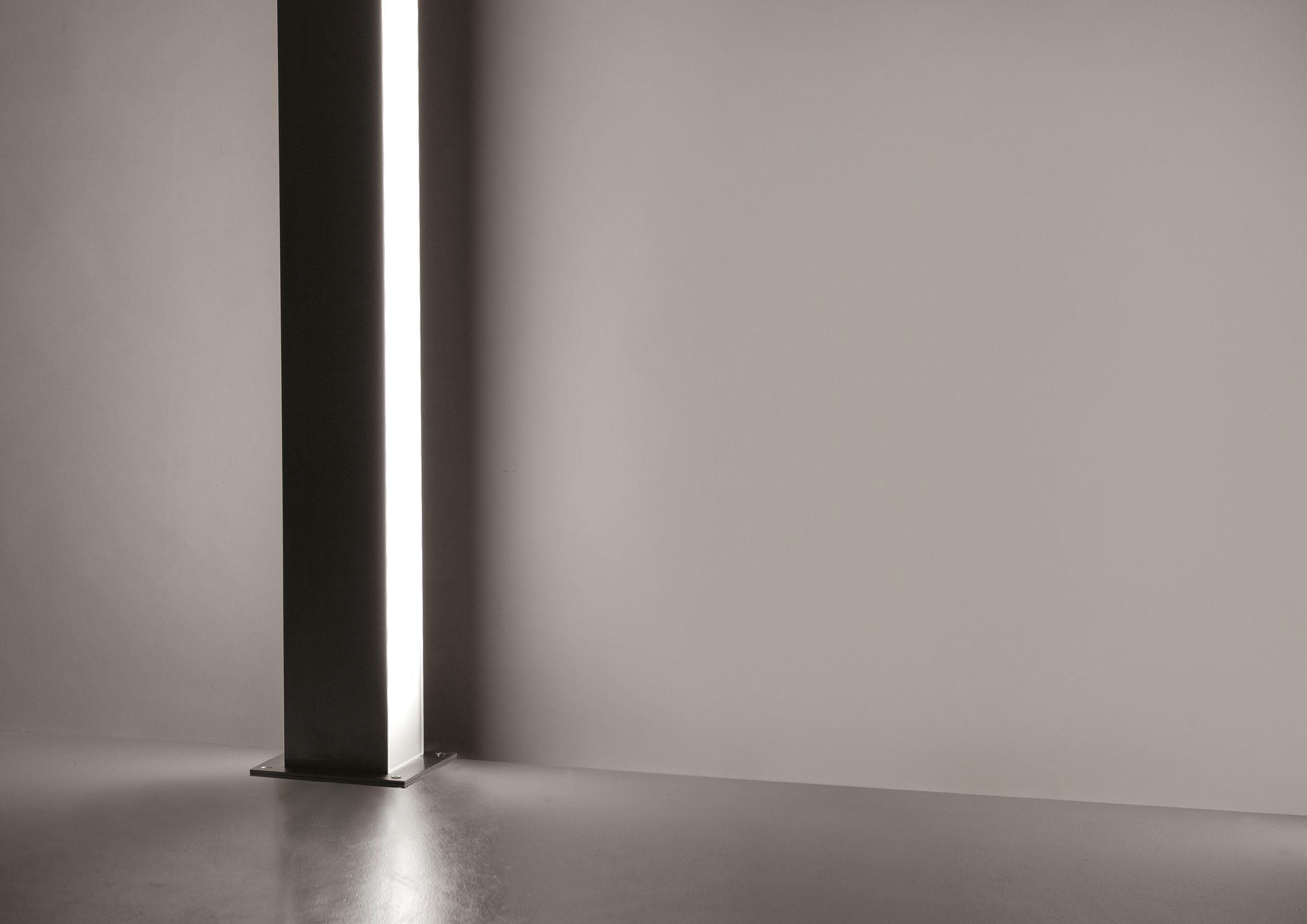

LAM32 Tower

Luminaire designed for floor installation, suitable for LED. It is
composed of a body with a fixing base in stainless steel sheet,
internal component holder plate in aluminum. The painted versions
are in polyester powder coated to ensure durability over time
and maximum resistance against atmospheric agents. All the
components of this series can be also manufactured on request
in AISI 316L stainless steel, with satin finish, processed with a
specific and additional “Anti-Touch” treatment to ensures cleanness
over time. The specific specific diffuser in extra-clear laminated
glass with a PVB film is integral to the body through a special
glue-sealant used in shipbuilding. The protection degree IP66 is
guaranteed by a special waterproof cable gland system. Luminaire’s
installation is allowed thanks to screws for direct fixing to the floor
or appropriate flush fixing counter-plate in steel sheet with anchor
bolts for concrete planting. The integrated power supply allows
its mains voltage power supply. It is equipped with a 1m long
neoprene cable for connection to the supply line. The connection is
completed through appropriate waterproof connection systems to
be ordered separately.


See specification for more information.
