LAM32 Pillar/ Pillar Mega

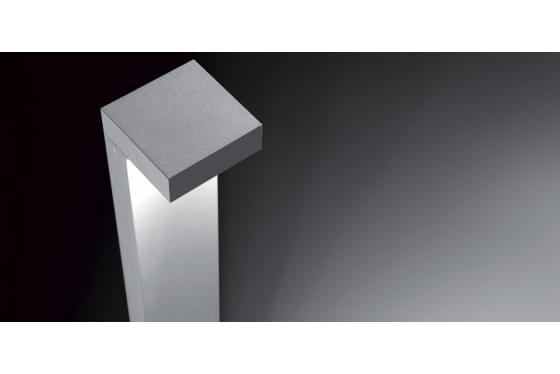

Luminaire designed for floor installation in urban or private areas.
Suitable for power LED sources, it is composed of aluminum head
submitted to anodizing treatment up to 18 microns. The pole in extruded
aluminum is welded to the base plate along all the circumference of the
luminaire. All parts are polyester powder coated to ensure durability
over time and maximum resistance against atmospheric agents. PMMA
Road optics. The closing screen made of in extra-clear transparent,
tempered and screen-printed glass is integral to the body through a
special glue-sealant used in shipbuilding. The protection degree IP66
is guaranteed by a special waterproof cable. Luminaire’s installation is
allowed thanks to screws for direct fixing to the floor or appropriate flush
fixing counter-plate in steel sheet with anchor bolts for concrete planting.
The integrated power supply allows its power at 230VAC mains voltage.
Comparted lamp with 30cm long neoprene cable for connection to the
supply line through appropriate waterproof connection systems to be
ordered separately. Connection inside the pole.
See specification for more information.
