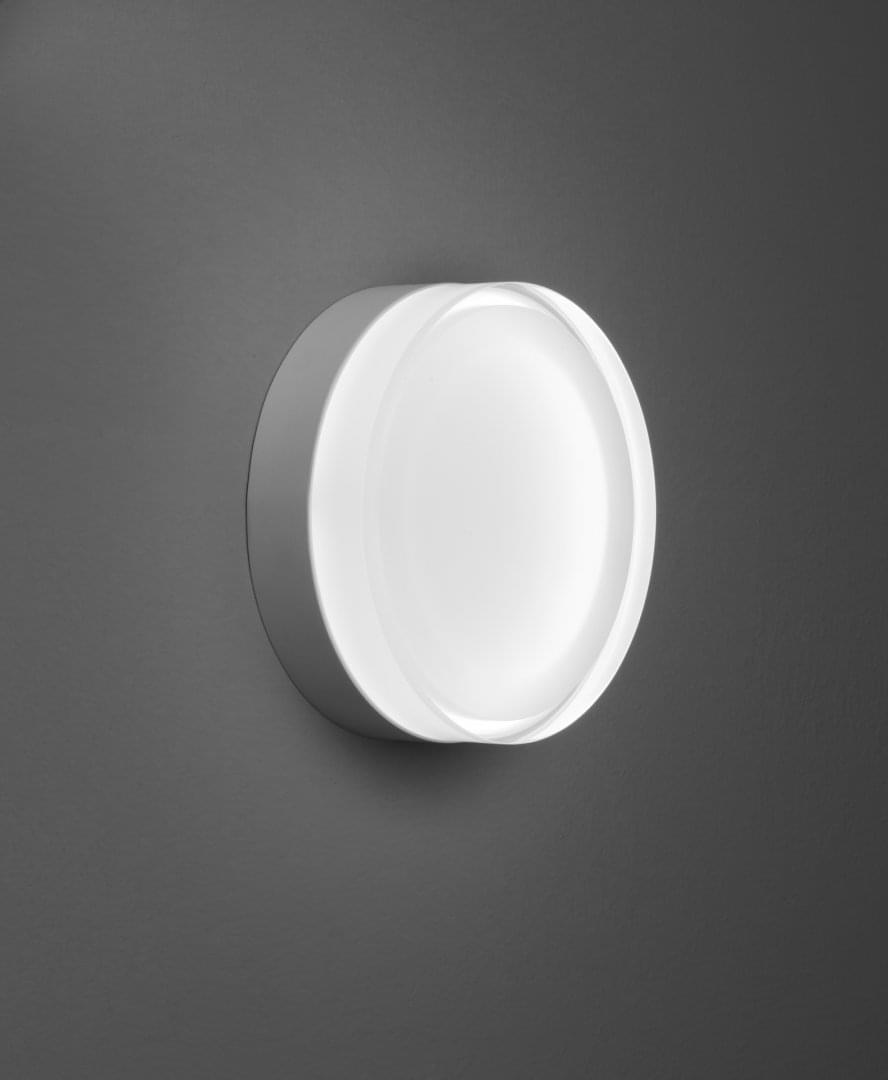

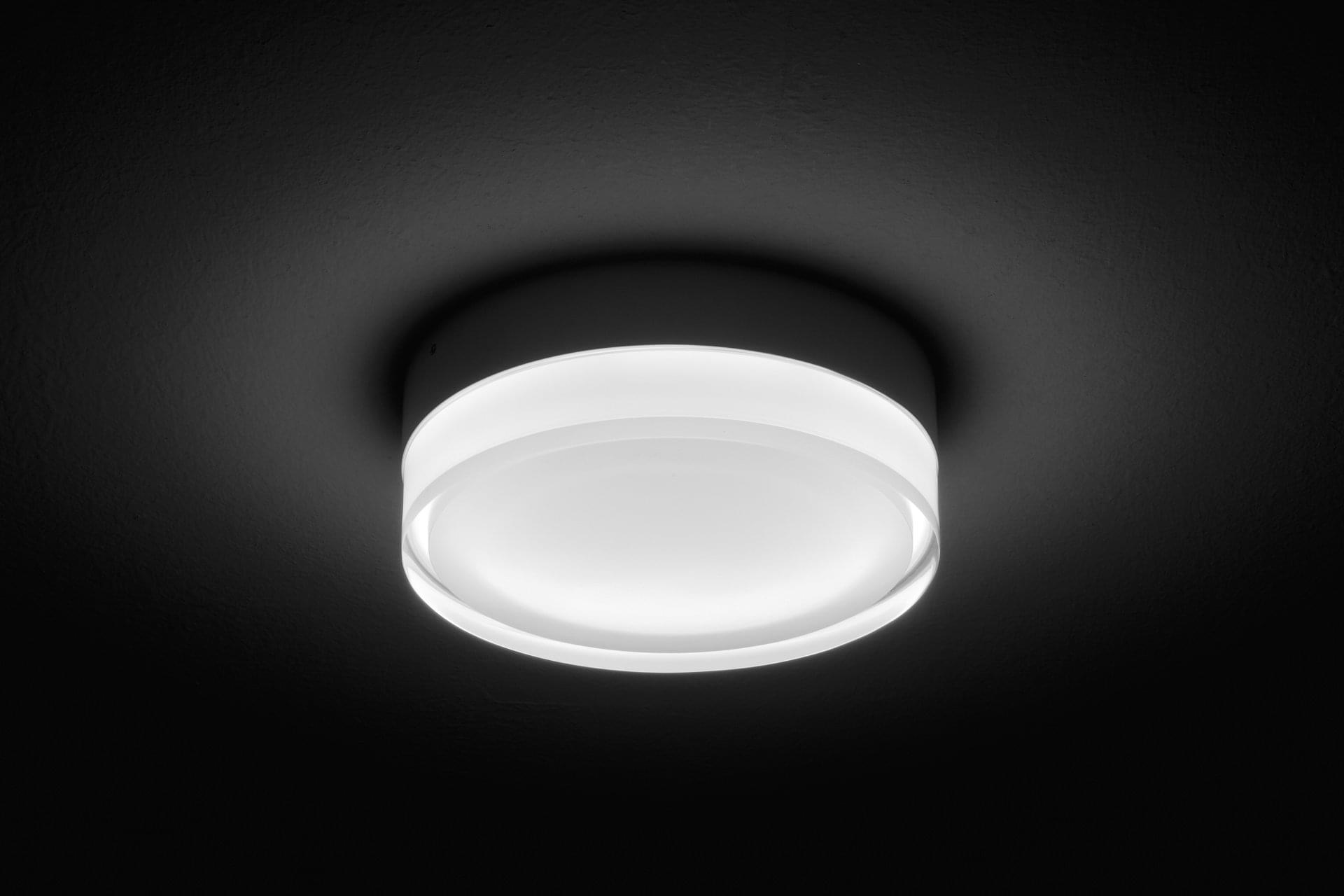

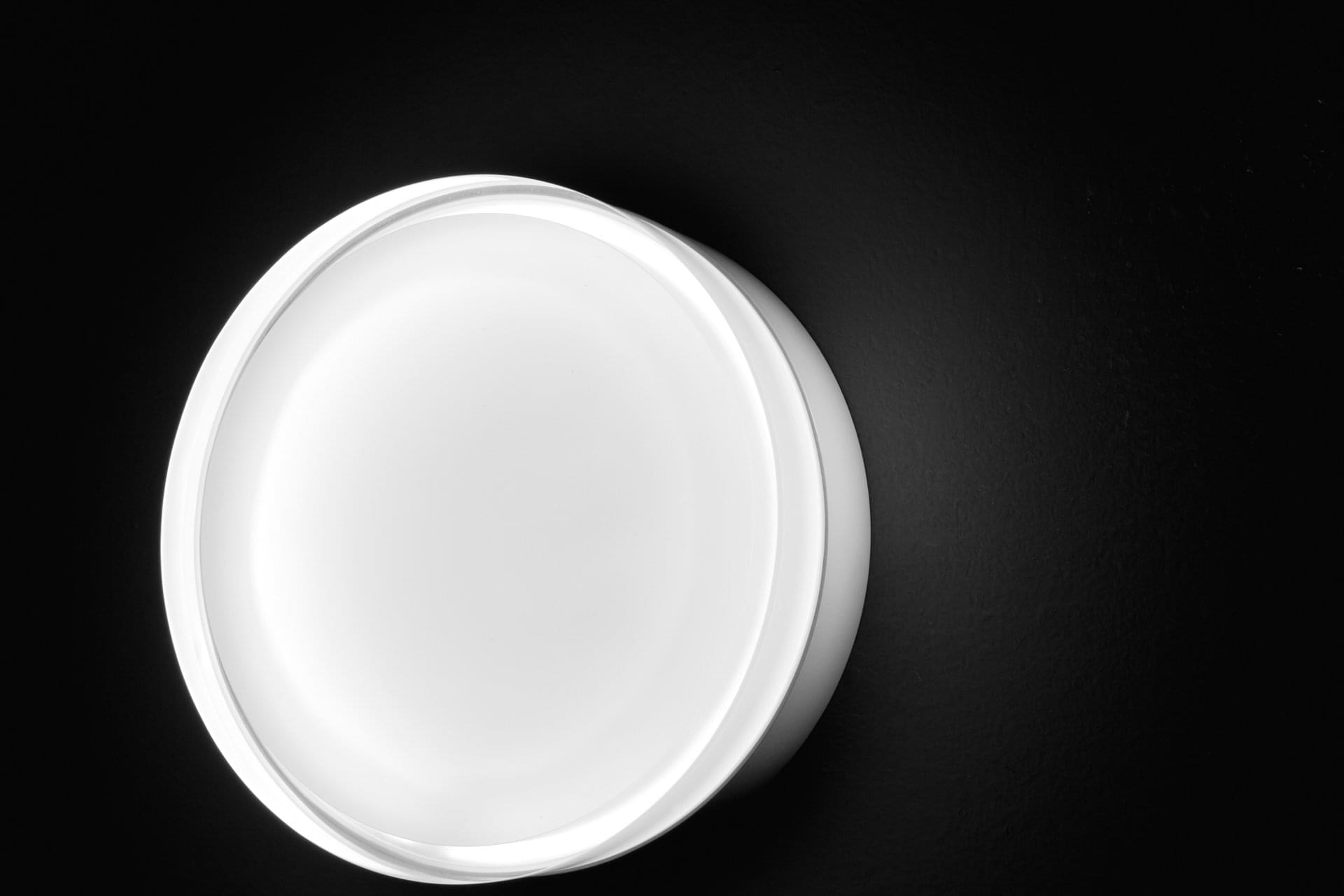

LAM32 Phantom Circle

Luminaire designed for wall and ceiling installation. Suitable
for LED sources, it is composed of a body made of polyester
powder coated aluminum sheet to ensure durability over time
and maximum resistance against atmospheric agents. A specific

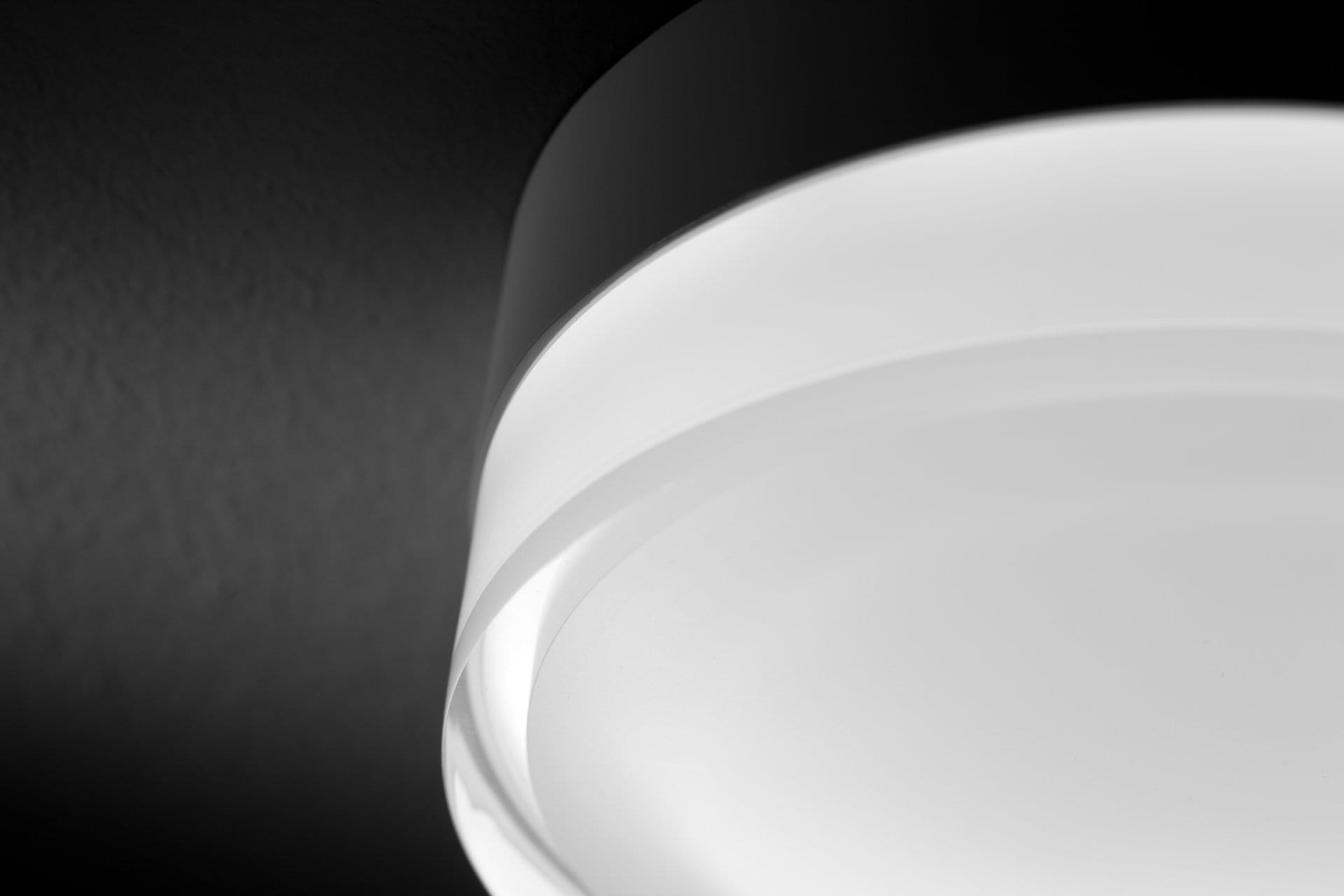

transparent crystal-clear diffuser screen in PMMA, submitted to
a processing treatment from solid, ensures a perfect uniformity
of light distribution and performance. The screen is integral to
the body through a special glue-sealant used in shipbuilding.
The installation is allowed through a hidden installation plate in
stainless steel sheet by hidden fixing screws. Protection degree
IP65 of these luminaires is ensured by a special glue-sealant
used in shipbuilding and appropriate waterproof cable gland
system. It is equipped with a 50cm long cable for connection to
the 230VDC power supply line.

See specification for more information or click here
