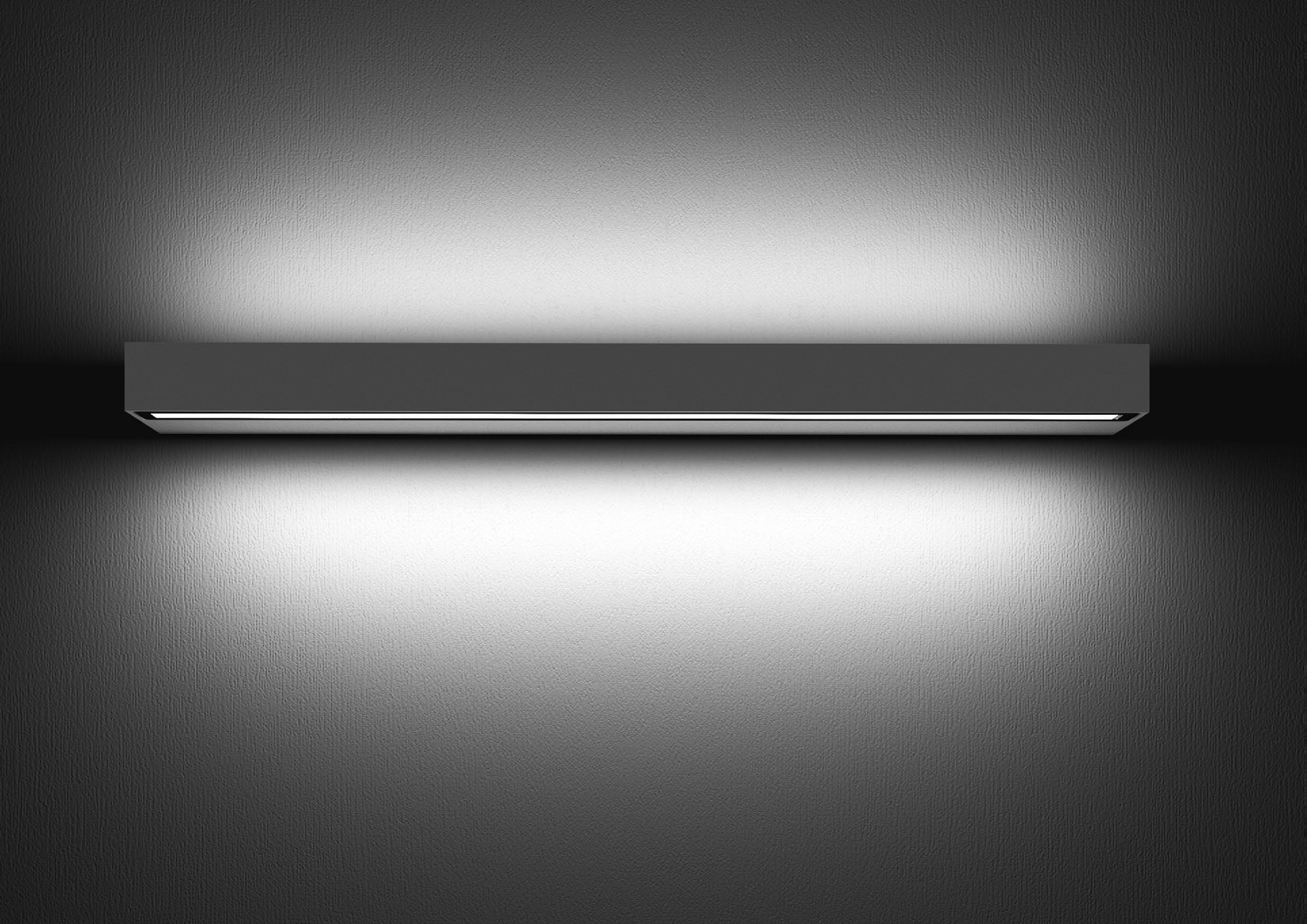

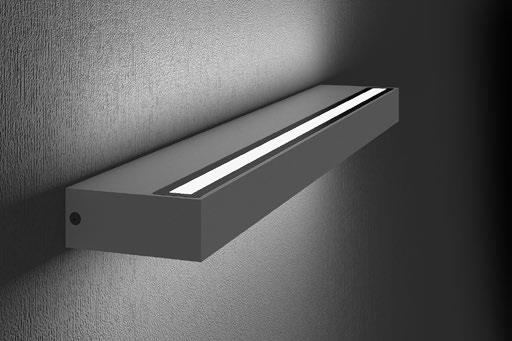

LAM32 Element Slim

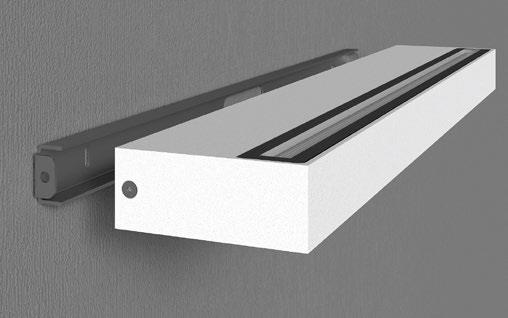

Luminaire designed for wall installation in both single and double emission versions, made of alluminium and glass. Suitable for high power LED sources, its body made of Anticordal alluminium, submitted to a double anodizing treatment and polyester powder coated to ensure durability over time and maximum resistance against atmospheric agents. A hidden fixing bracket in stainless steel sheet allows the installation on walls through two stainless steel fixing screws. Closing screens in extra-clear screen-printed and tempered glass are integral to the body through a special glue-sealant used in shipbuilding.

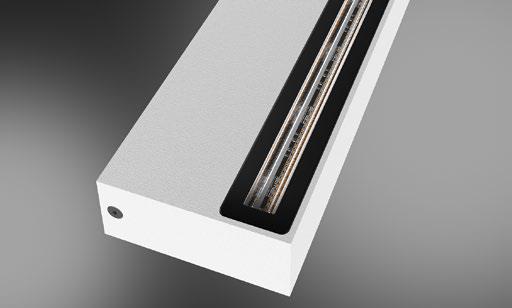

The protection degree IP65 is ensured by an appropriate waterproof cable gland system. The PMMA precision optics allow the propagation of light beam homogeneously for long distance. Constant voltage power supply is integrated in luminaire’s body. It is equipped with a 50cm long cable for connection to the power supply line using appropriate waterproof connection systems to be ordered separately.

See specification for more information.
