Downloads : technical modifications reserved

specificatielam32quad (pdf)

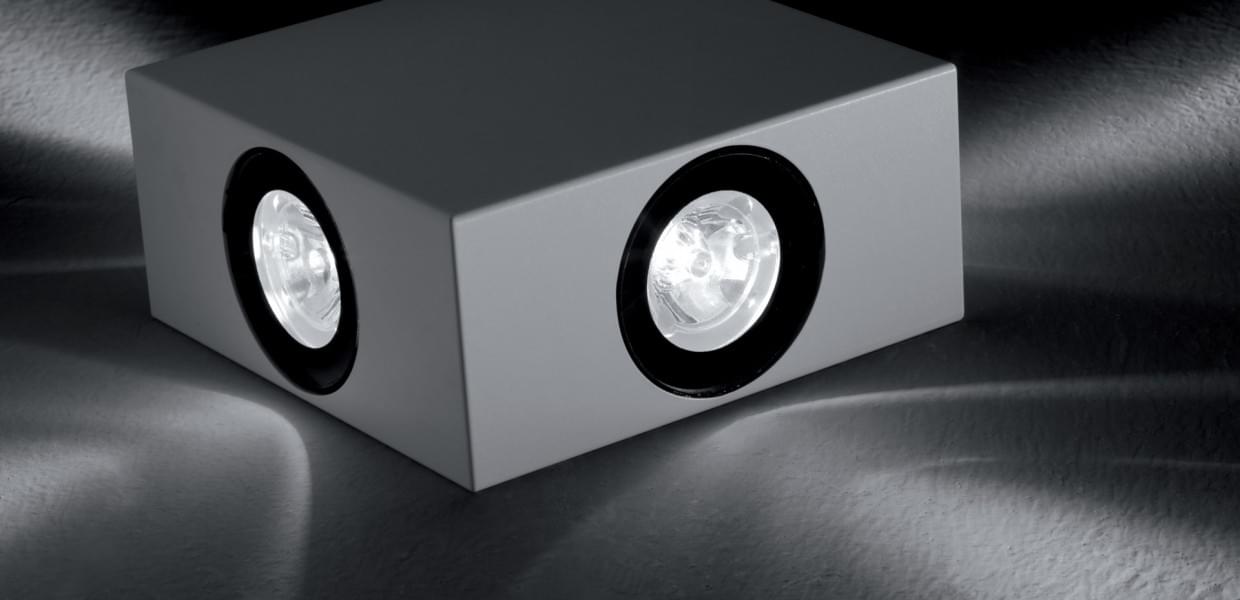

LAM32 Quad

Luminaire designed for wall or ceiling installation, suitable for high
power LED sources. Its body is made of Anticorodal alluminium alloy,
submitted to anodizing treatment up to 18 micron and polyester
powder coated to ensure durability over time and maximum

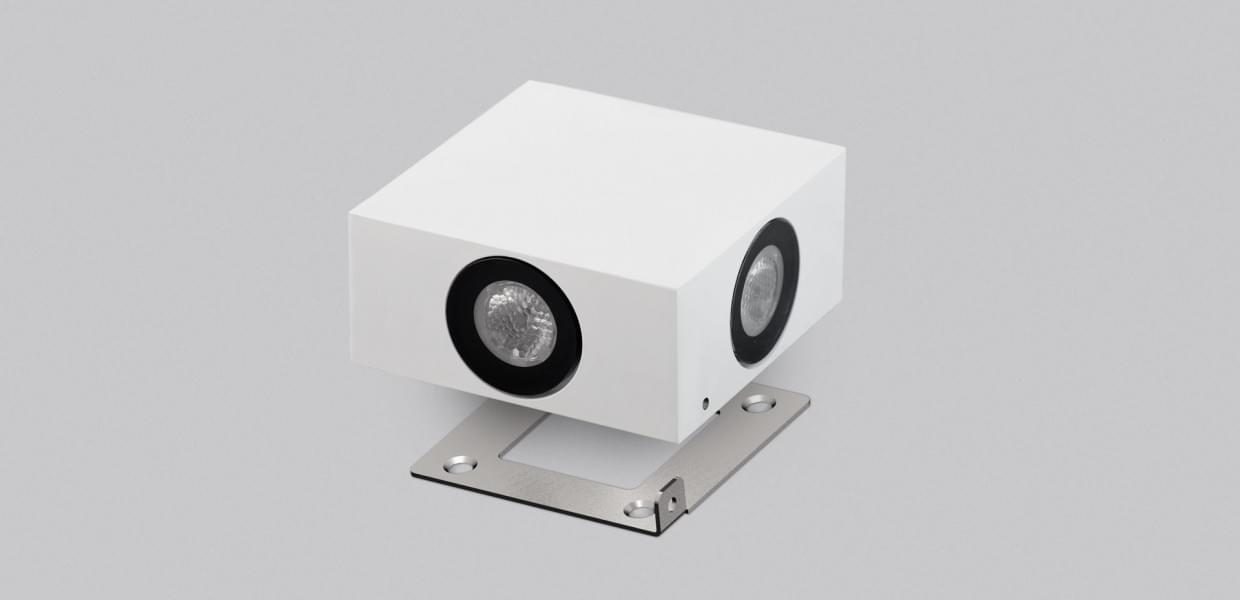

resistance against atmospheric agents. A hidden fixing bracket in
stainless steel sheet allows the installation on walls and ceilings
through two stainless steel fixing screws. The same components
can be made of satin or mirror alluminium. Specific screens in
extraclearv screen-printed and tempered glass are integral to
the body through a special glue-sealant used in shipbuilding. The
protection degree IP66 is ensured by appropriate waterproof

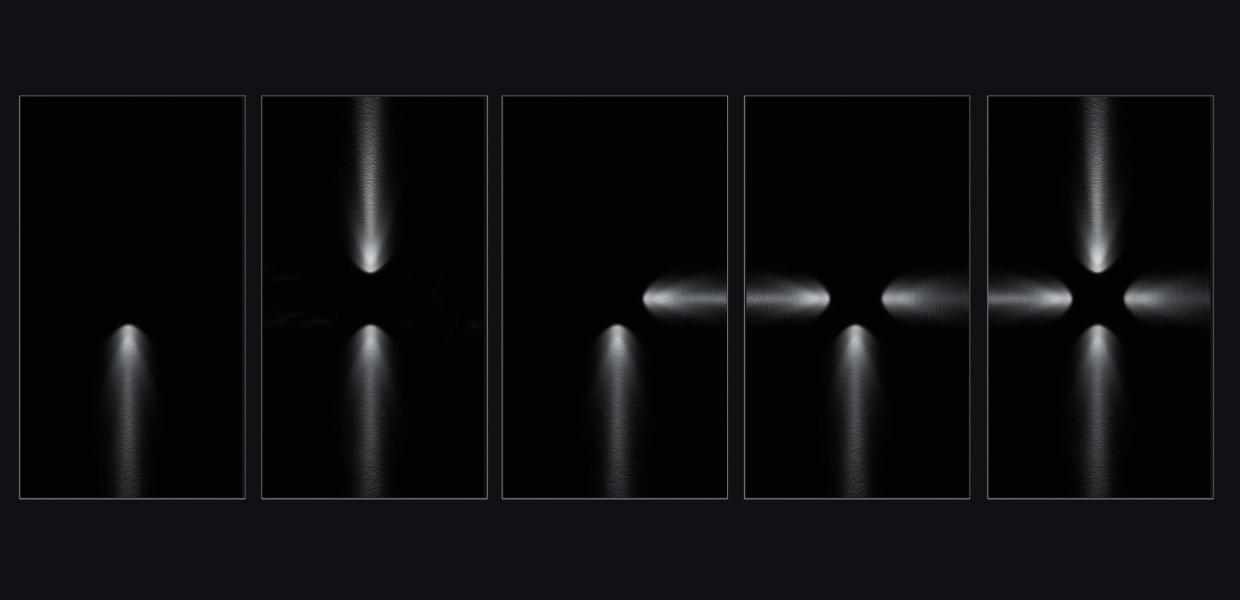

cable gland system. High quality PMMA optics and black antiglare
ring allow propagation of light for long distance. Integrated LED
drivers allows their power at 24VDC. It is equipped with a 50cm
long cable for connection to the power supply line with appropriate
waterproof connection systems to be ordered separately.

See specification for more information or click here
