Downloads : technical modifications reserved

specificatie lam32 wash (pdf)

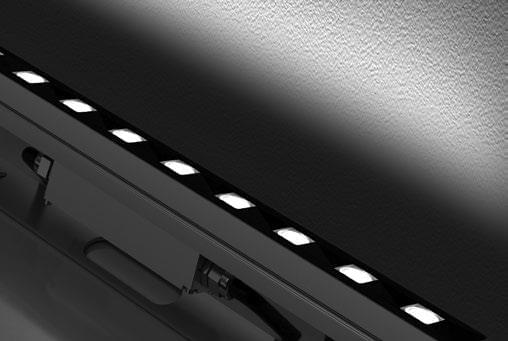

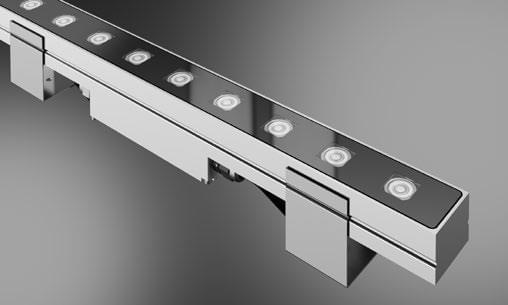

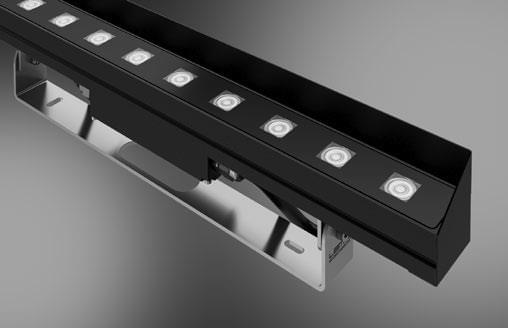

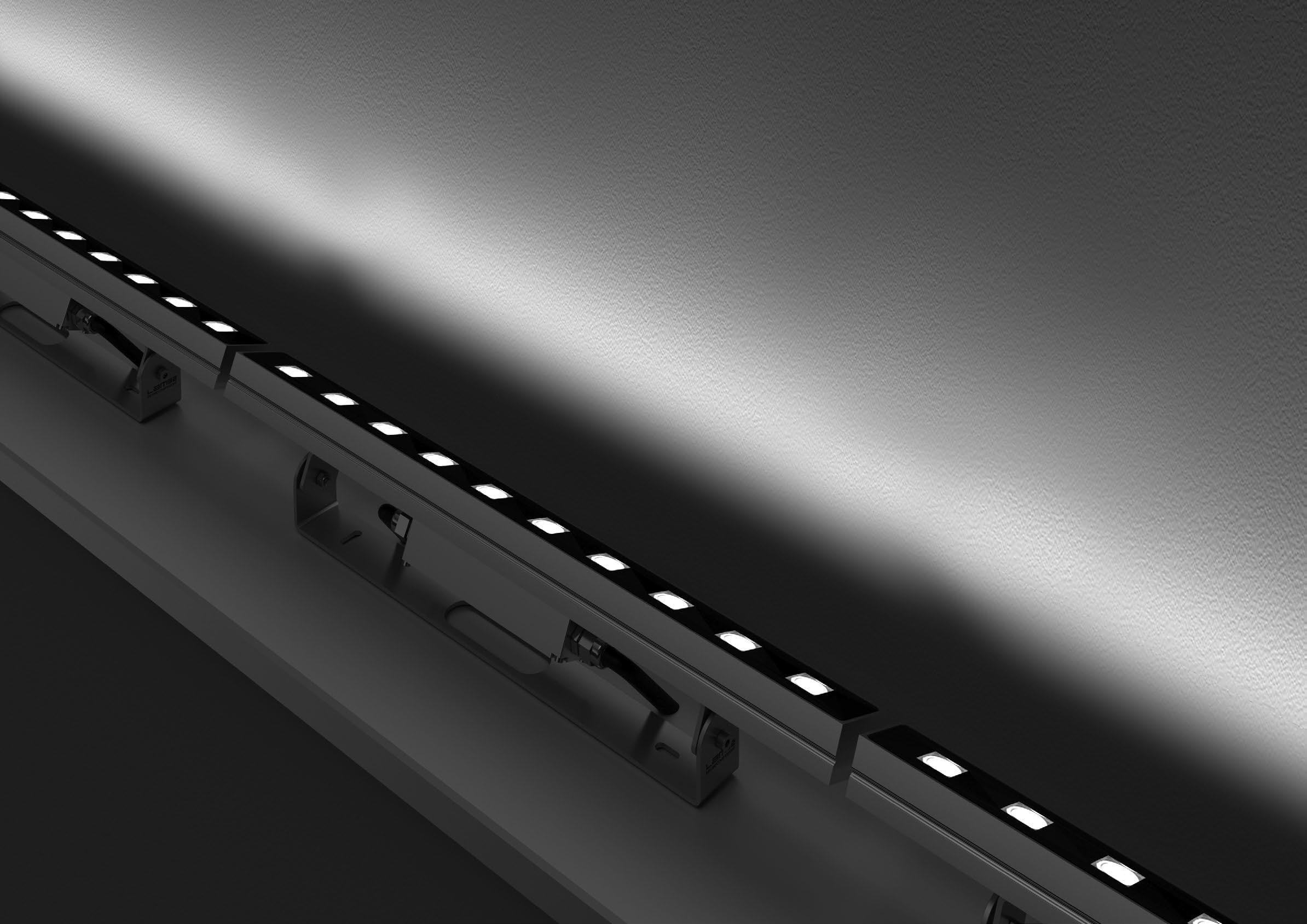

LAM32 Wash

Luminaire designed for flush installation on string-course and walls in outdoors areas. Suitable for power LED sources.

Its body is made of Anticorodal alluminium alloy, submitted to anodizing treatment up to 18 micron. Temperated glass is integral to the body through a special glue-sealant used in shipbuilding.

The installation is guaranted ousing appropriate stainless steel AISI304 adjustable brackets or fixing clips to be ordered separatly.

The PMMA precision optics allow the propagation of light for long distance.

The protection degree IP67 is ensured by a special waterproof cable gland system and silicone gasket.

The integrated LED driver allows its 48VDC power supply.

It is equipped with 2 cables with fast connectors to be connected to the power supply line, through appropriate waterproof connection systems not included to be ordered separately.

See specification for more information or click here
