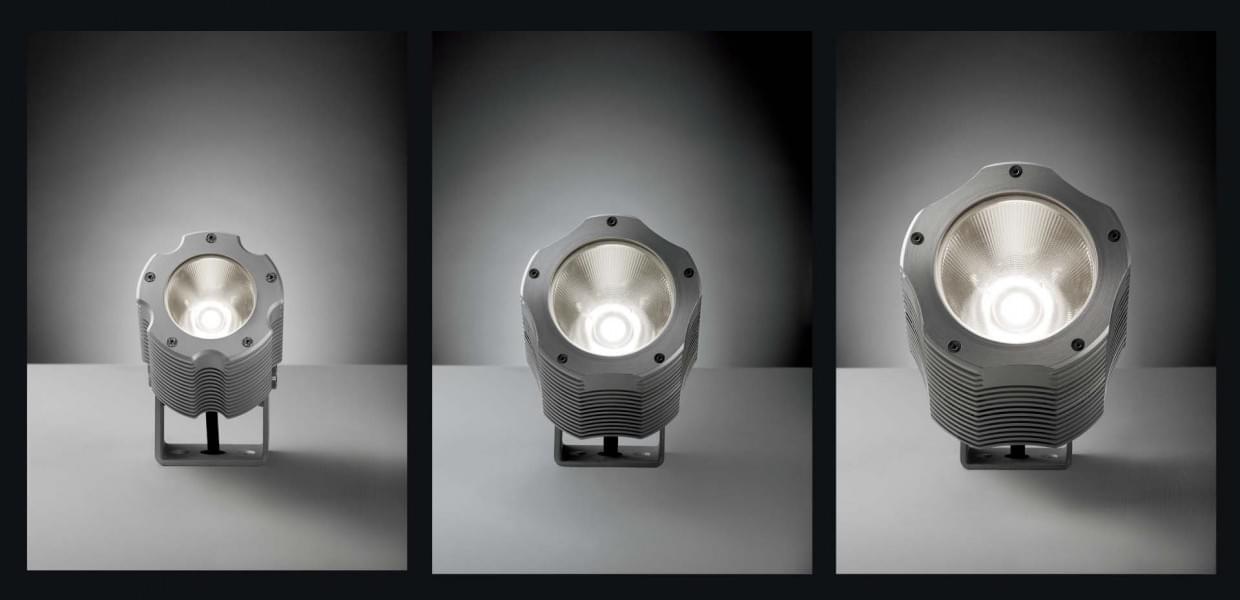

LAM32 Wave

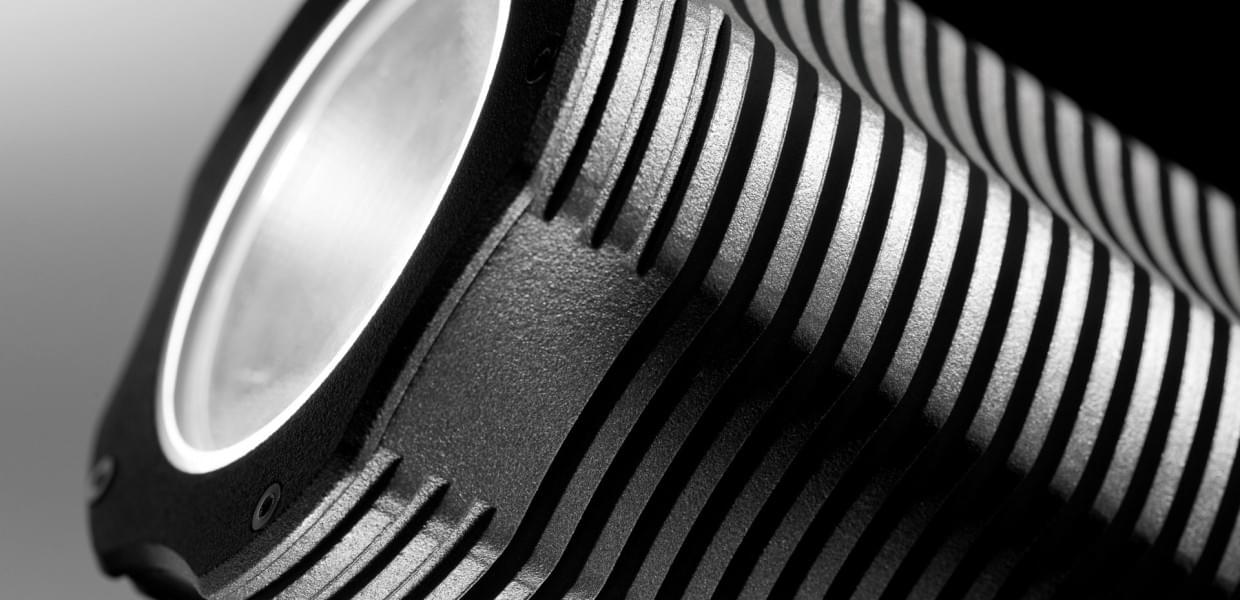

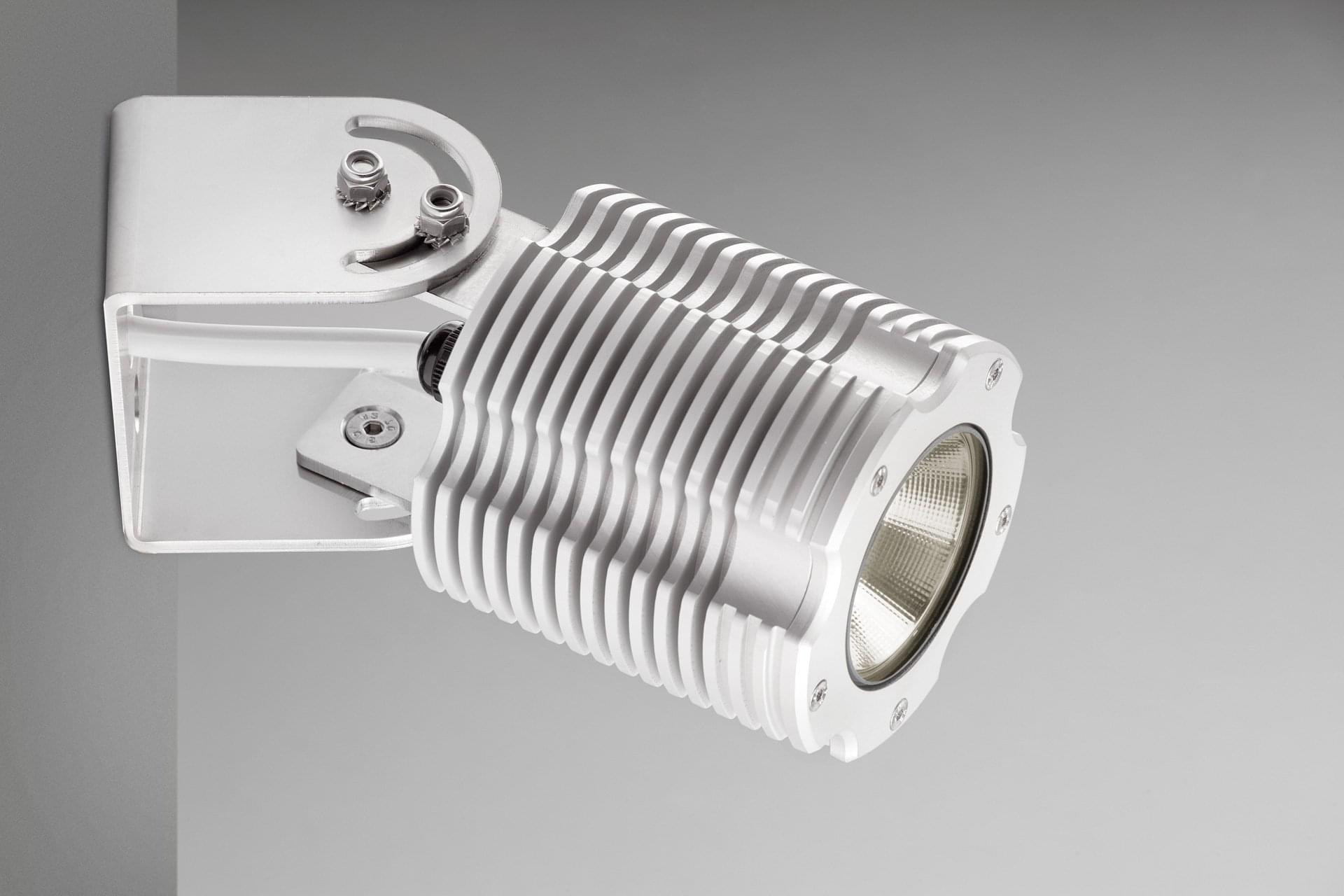

Luminaire made of anticorodal aluminum alloy, for the continuous use in outdoors area, designed for floor, wall and ceiling installation through stainless steel adjustable bracket and dedicated accessories.
Its body is submitted to anodizing treatment up to 18 micron and polyester powder coated to guarantee durability over mtime maximum resistance against atmospheric agents.

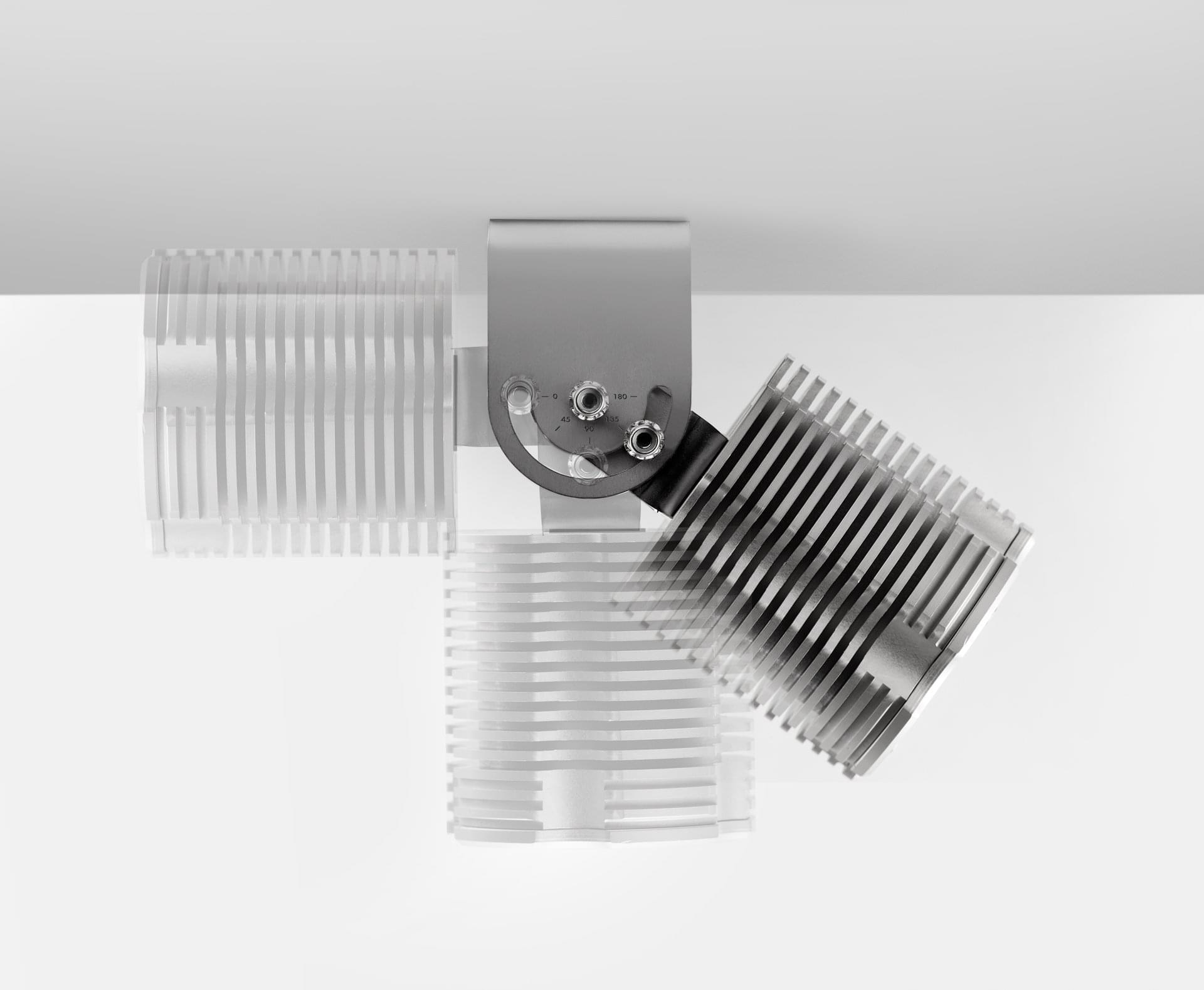

A stainless steel screws allow its installation and orientation.
The structure is completed by a specific diffuser in extra-clear glass, integral with body thanks to a silicone gasket, the front ring nut and the
tightening of stainless steel screws.
The protection degree IP65 is ensured by a special waterproof cable gland system insert into the appliance. Metallized precision optics.
The integrated LED driver allows its power supply at 24vdc.
It is equipped with a 50cm long neoprene cable for connection to the power supply line, through appropriate waterproof connection system not included. Remote power supply not included.
See specification for more information or click here
