Downloads : technical modifications reserved

Specificatie Lam32 Round EVO (pdf)

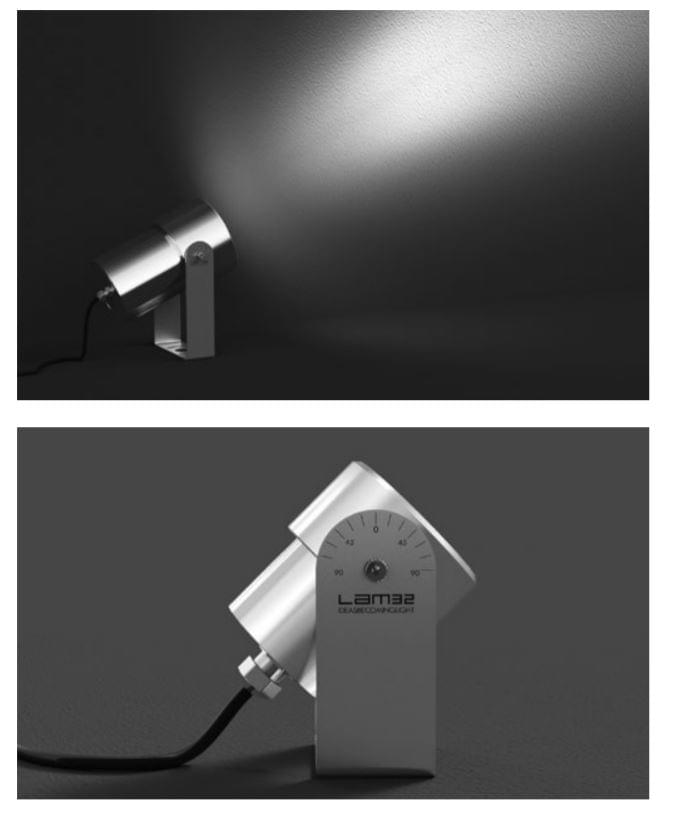

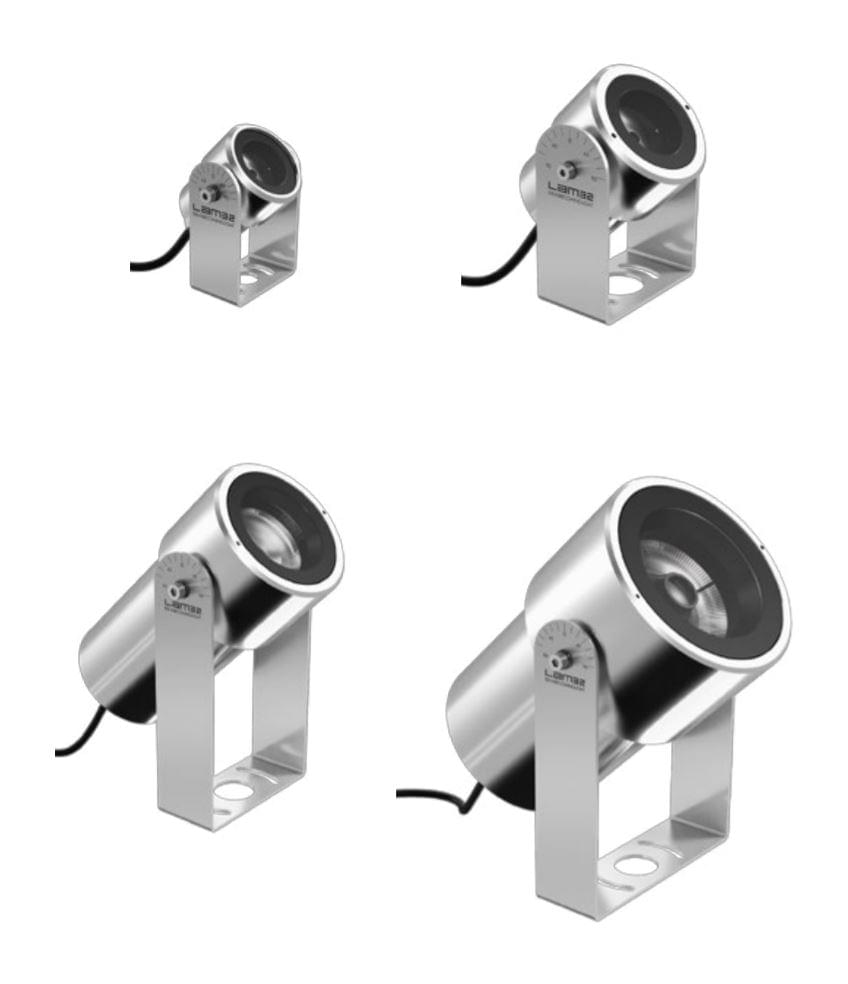

LAM32 Round Evo

Luminaire designed for floor, wall or ceiling installation through stainless steel adjustable supports and dedicated accessories. Suitable for high power LED sources.

Its body is made of Anticorodal alluminium alloy, submitted to anodizing treatment and polyester powder coated to ensure durability over time and maximum resistance against atmospheric agents.

A stainless steel support bracket and stainless steel screws allow its installation and orientation.

Specific screens in extraclear screen-printed and tempered glass are integral to the body through a special glue-sealant used in shipbuilding. The protection degree IP65 is ensured by a special waterproof cable gland.

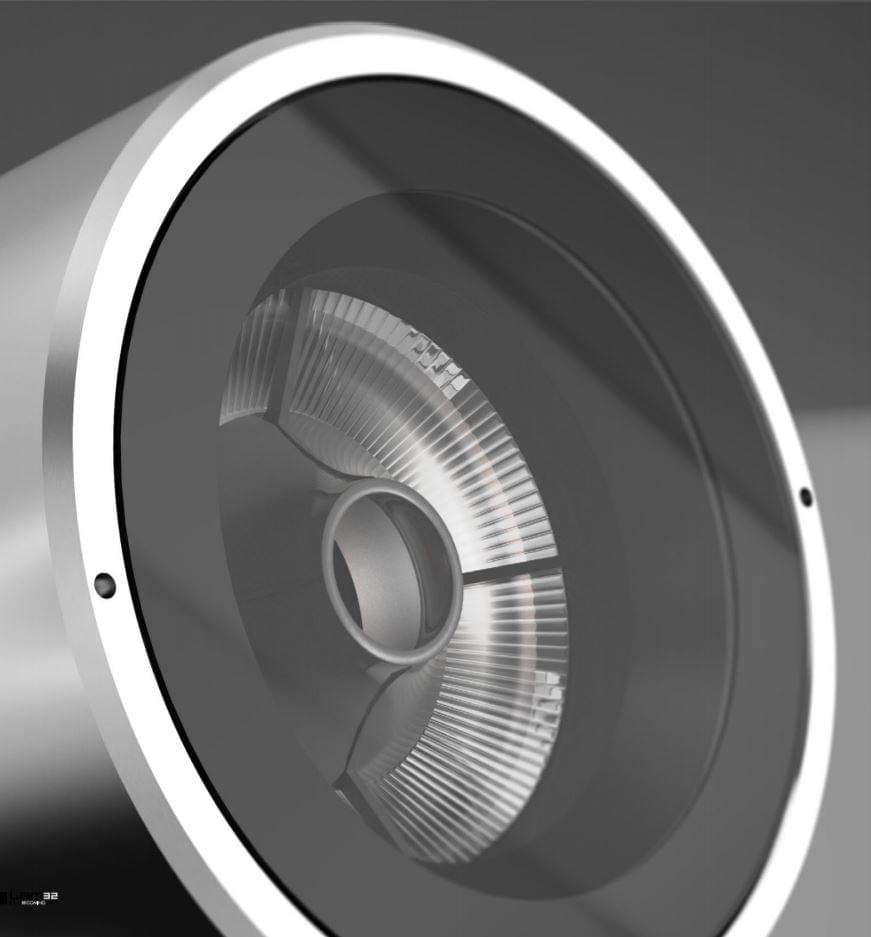

High quality PMMA optics and black antiglare ring allow propagation of light for long distance.

The integrated LED driver allows its power supply at 24VDC. The 230VAC versions are supplied by DALI power supplies.

Al products are equipped with a 50cm long neoprene cable for connection to the power supply line, through appropriate waterproof connection systems not included.

See specification for more information.
