LAM32 Hole/ Hole-S

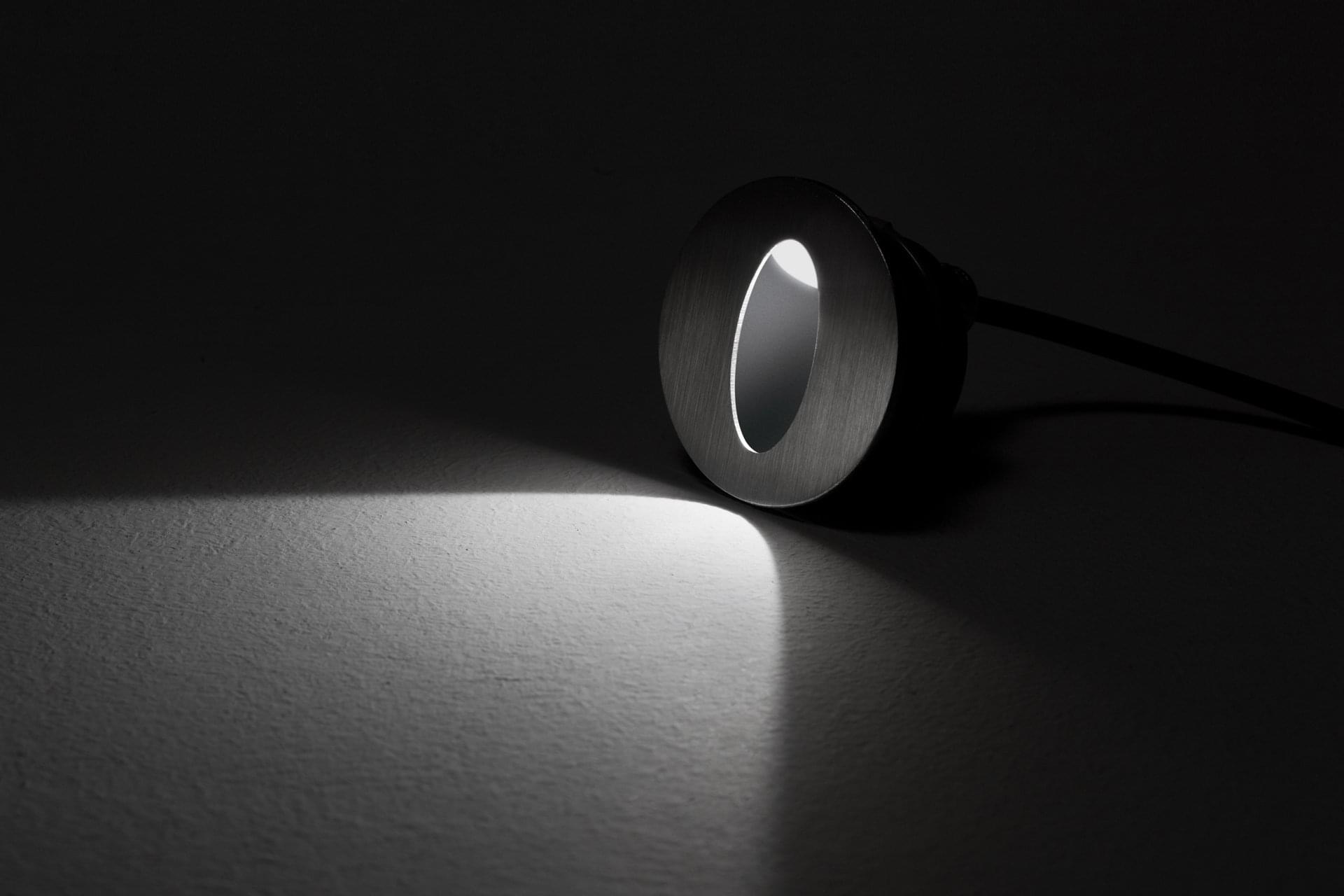

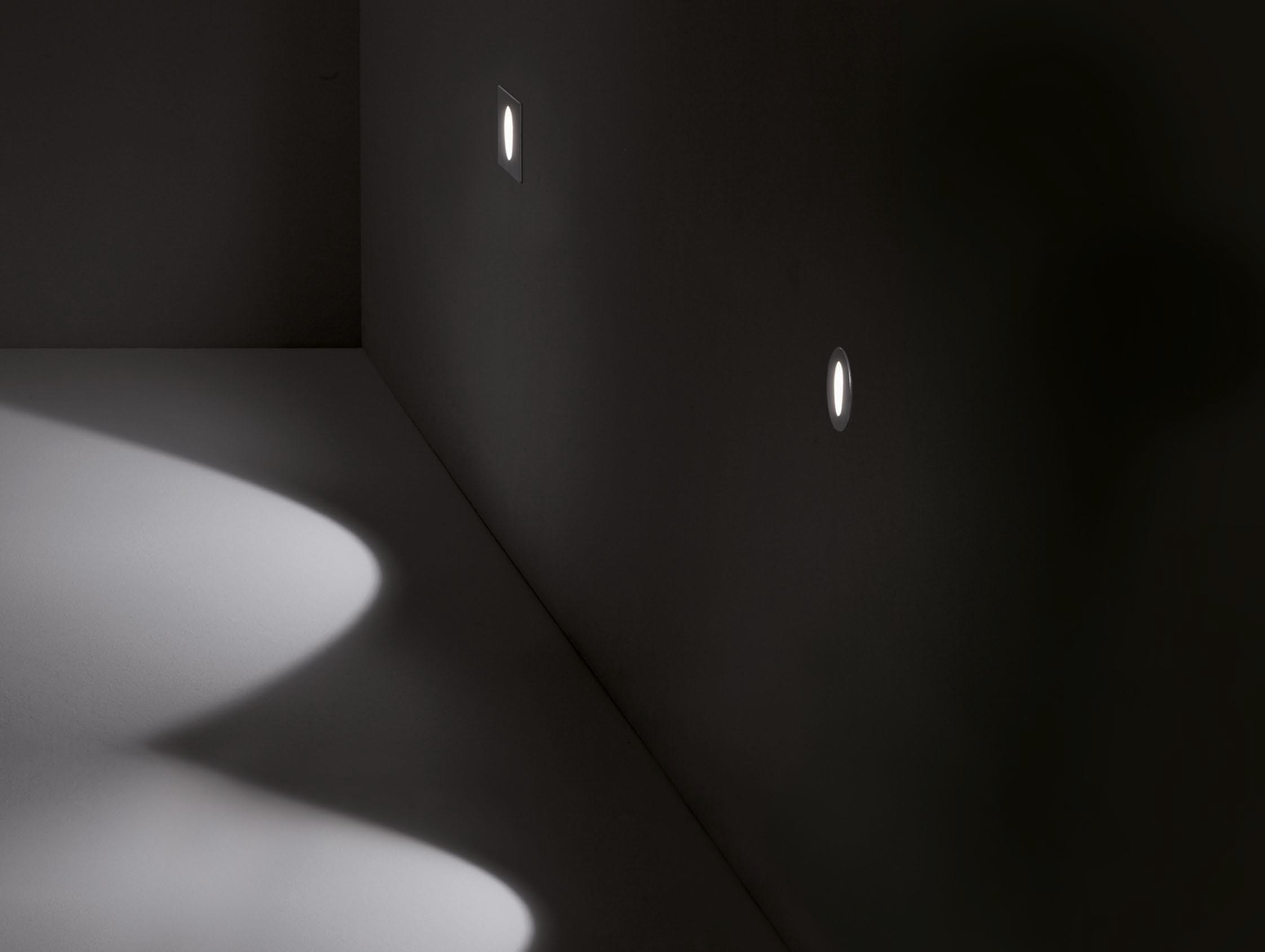

Luminaire designed for recessed installation on walls suitable for power LED sources for light grazing downward. The body is made of Anticorodal alluminium, submitted to anodizing treatment to ensure durability over time and maximum resistance against atmospheric agents.

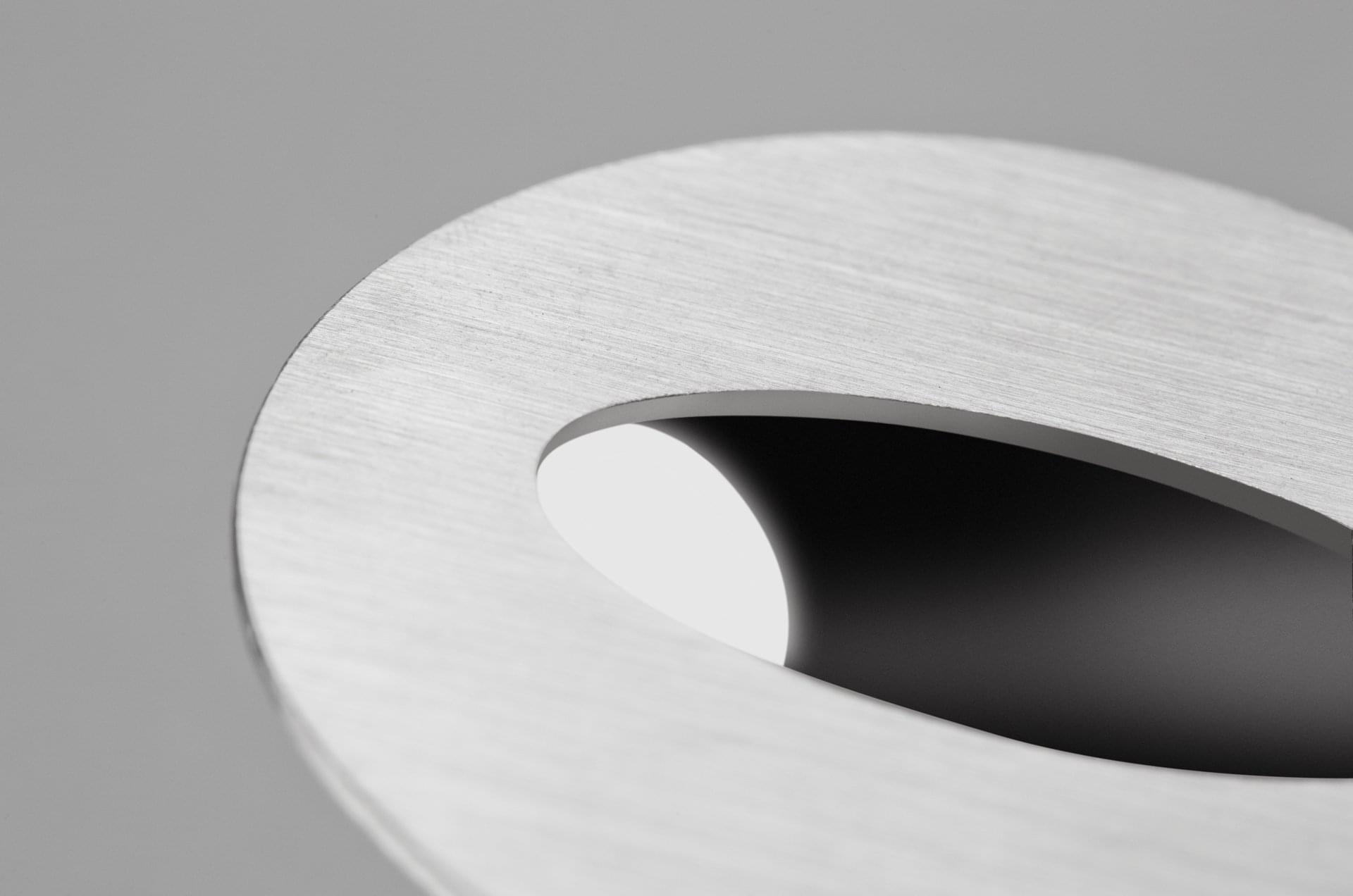

Front ring nut in AISI 304 stainless steel, is integral with the body through mechanical coupling with back stainless steel screws. All the metal components of the luminaires of this series can be fully made of AISI 316L stainless steel, on request.



The installation can be done under a pressure on a special plastic casing, or on plasterboard wall using accessory spring, to be ordered separately.

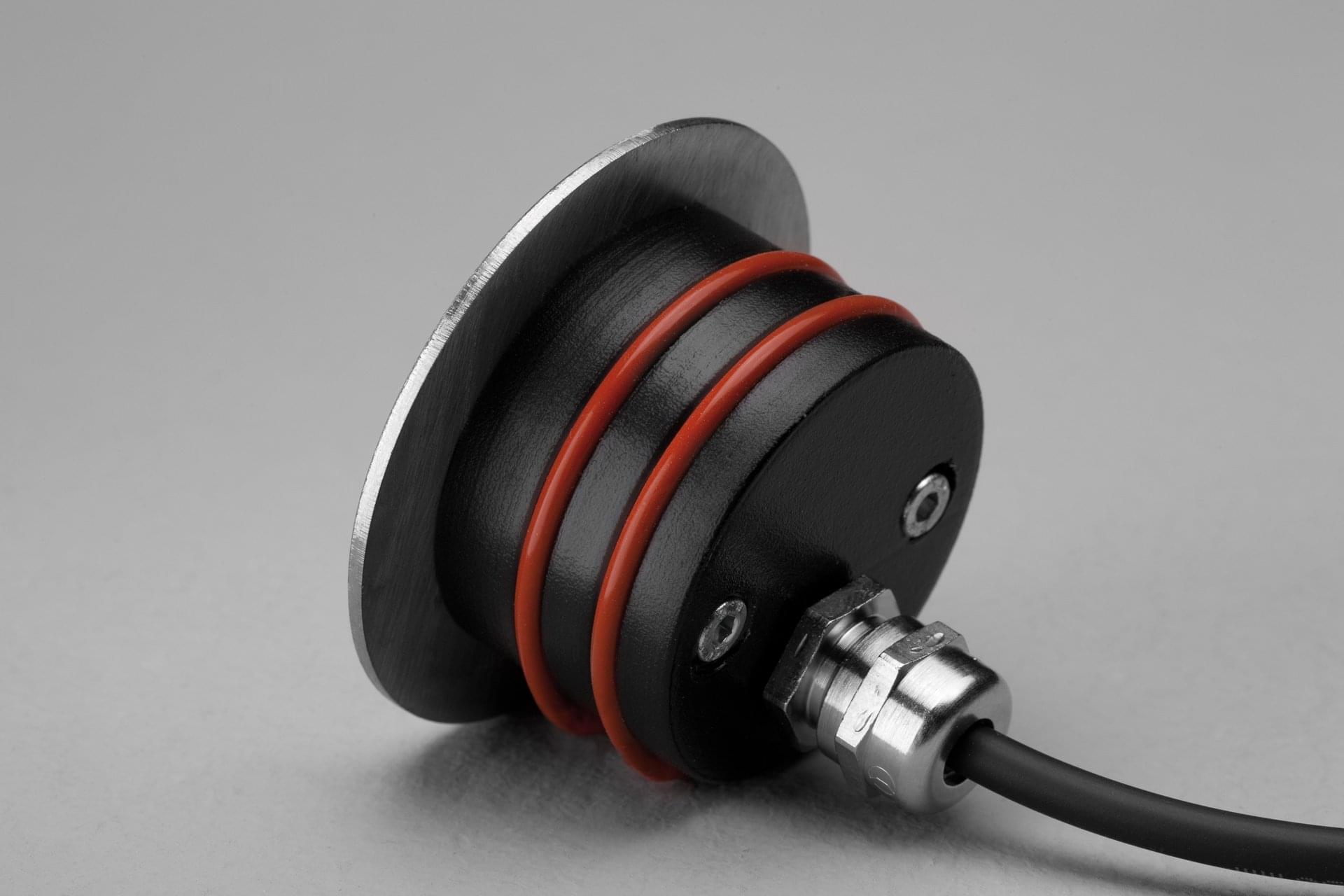

The protection degree IP66 is guaranteed by a special waterproof cable gland system and silicone gaskets.
The integrated LED driver allows its power supply at 24VDC.


See specification for more information or click here Hole  / Hole S
