Downloads : technical modifications reserved

specificatielam32nailpro (pdf)

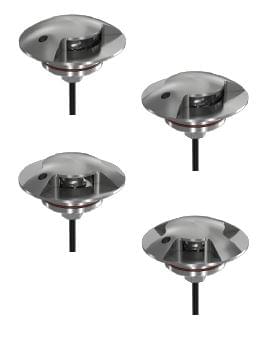

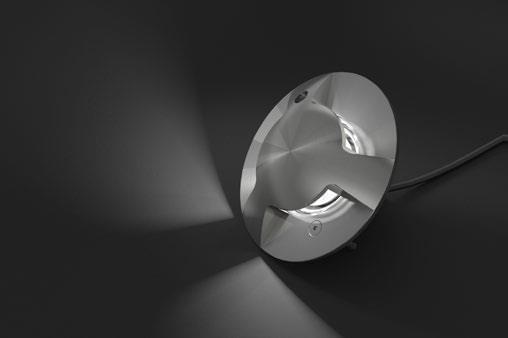

LAM32 Nail Pro

Luminaire designed for recessed installation on walls, floors.

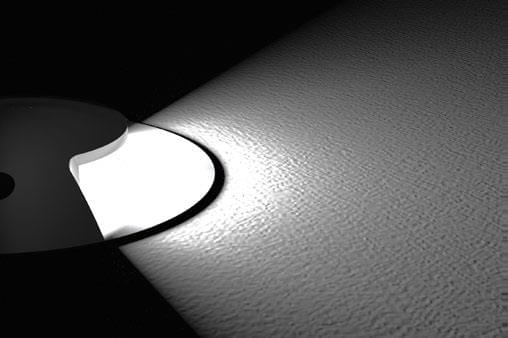

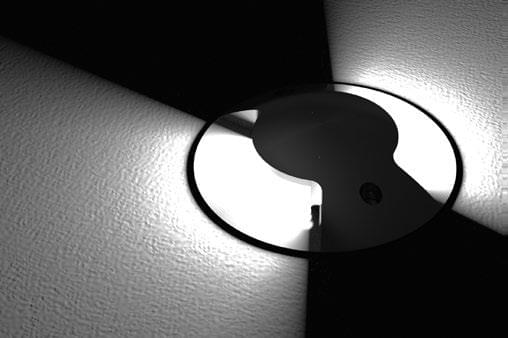

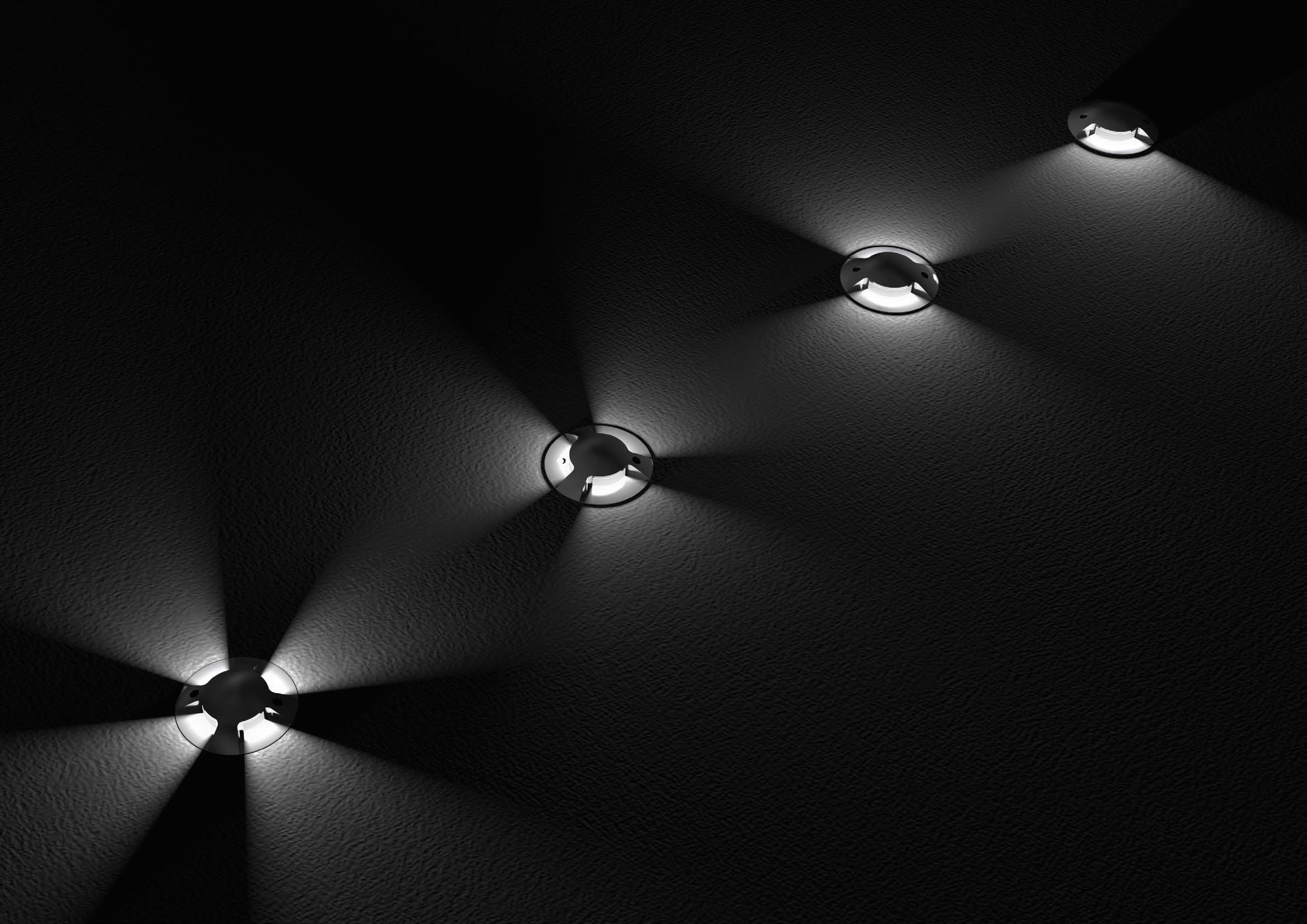

Suitable for power LED sources for step-marker grazing light. Its
body is made of Anticorodal alluminium submitted to anodizing
treatment and AISI 316L stainless steel to guarantee durability
over time and maximum resistance against atmospheric agents. All
the metal components of the luminaires of this series can be fully
made of AISI 316L stainless steel, on request. The installation can
be done under a pressure on a special casing in plastic material.
The protection degree IP67 is ensured by a special waterproof
cable gland system and silicone gaskets. The integrated LED driver
allows its power at 24VDC. It is equipped with a 50cm long
neoprene cable for connection to the power supply line, through
appropriate waterproof connection systems not included. Remote
power supply not included.


See specification for more information or click here
