LAM32 Gem Pro 4

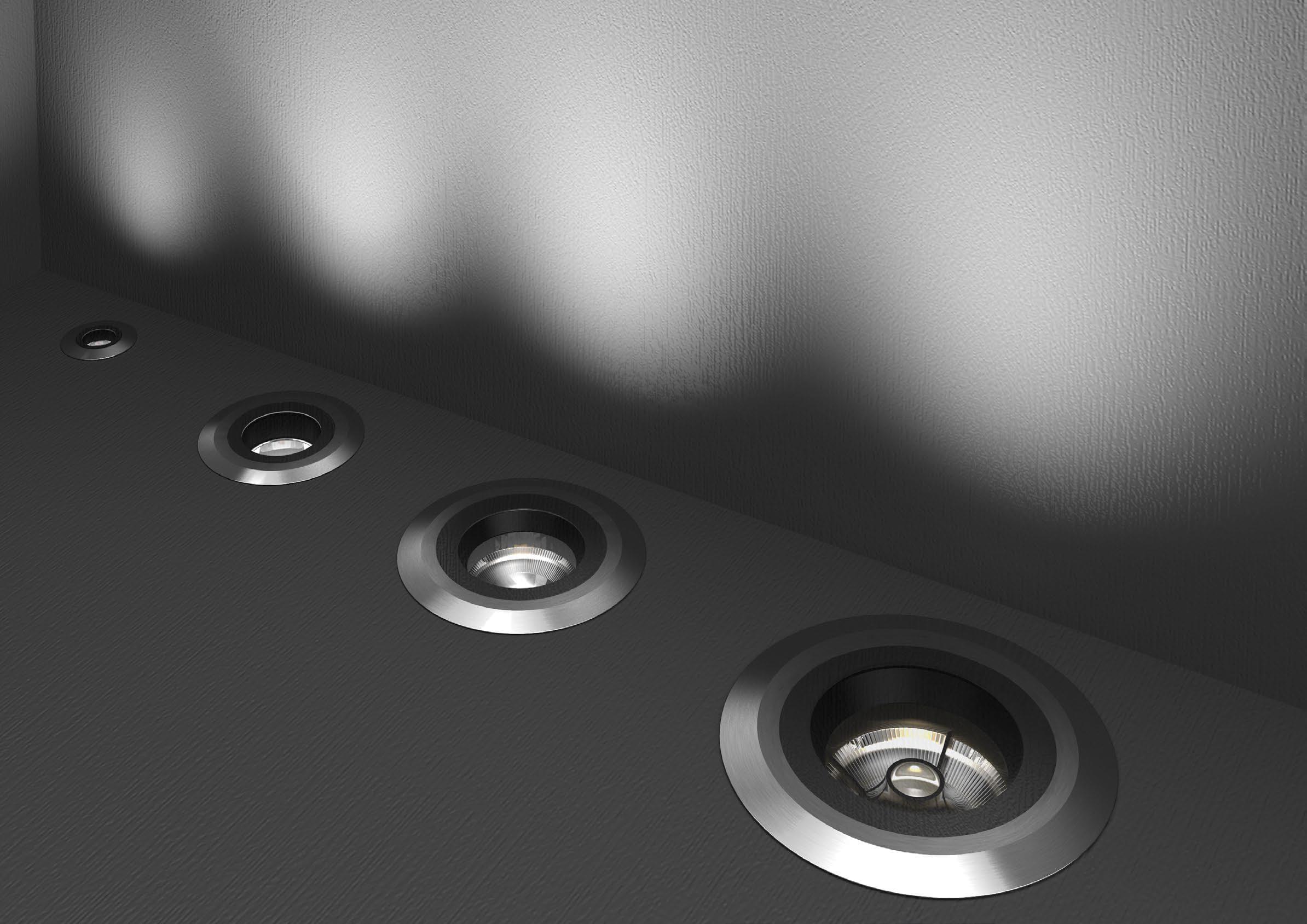

The light enhances the architecture, transforming it into a spectacle to be discovered, always different every time you look at it. GEM 4 emphasises the precious details, creating an unforgettable path that wants to accentuate the details which make the living spaces unique.

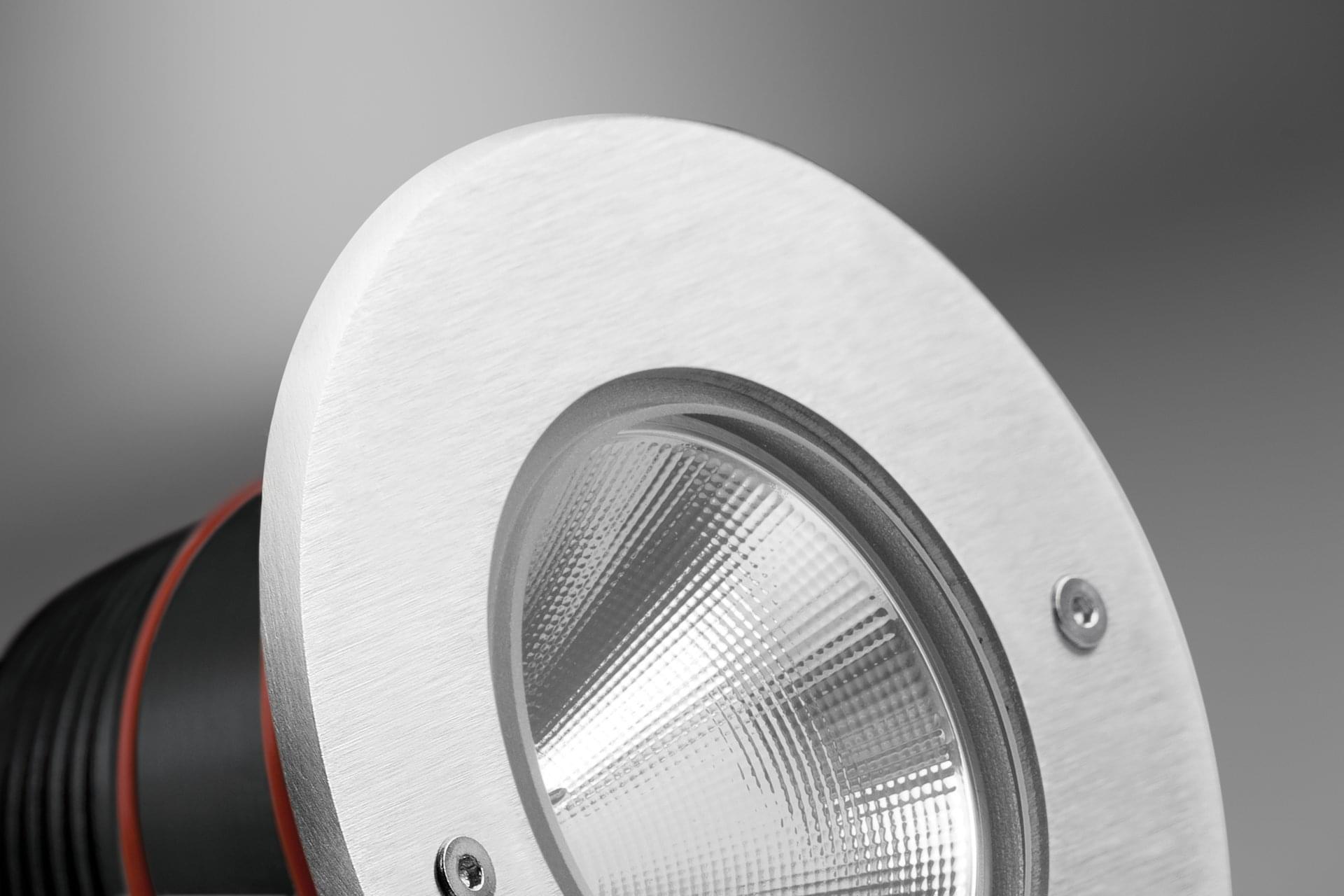

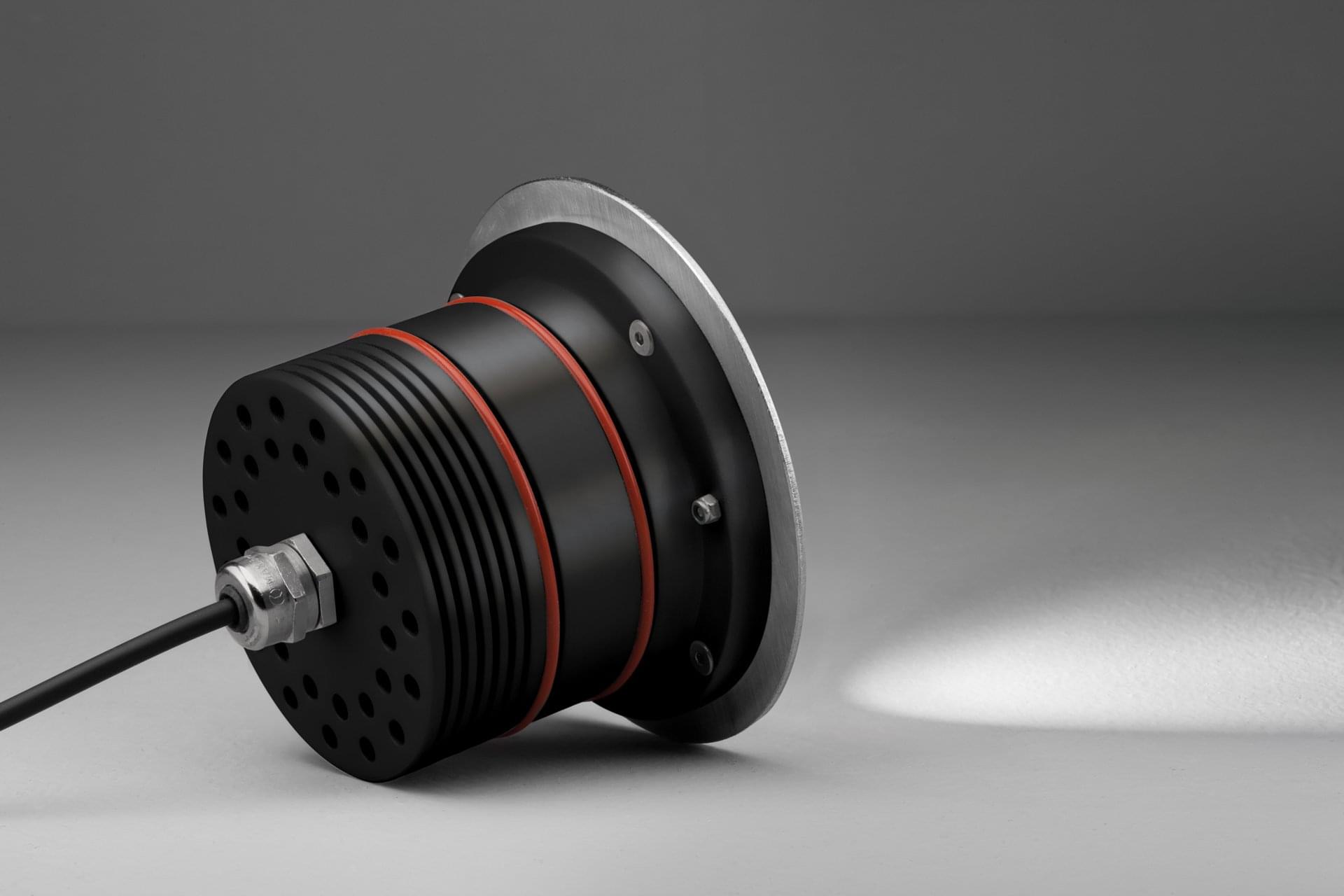

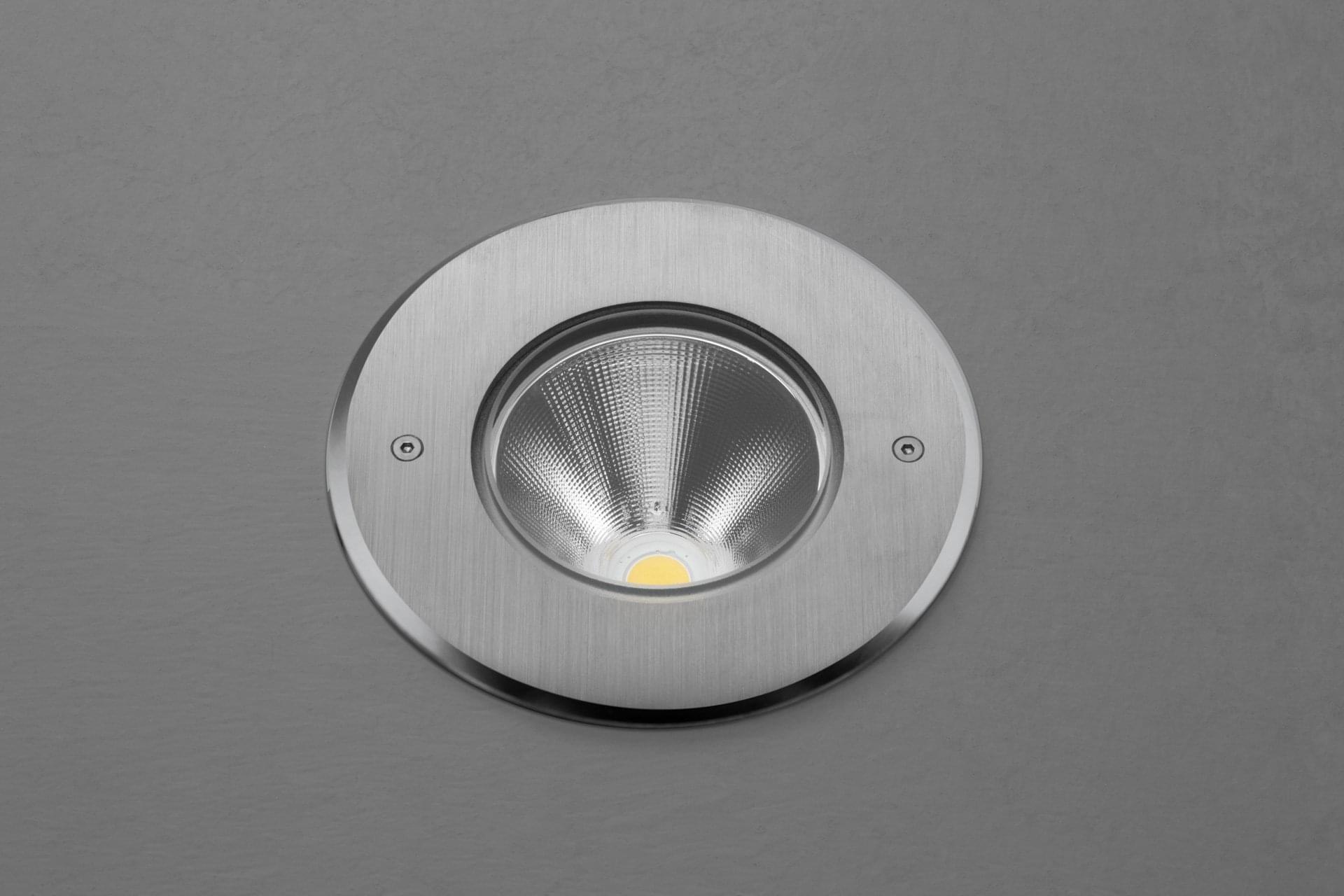

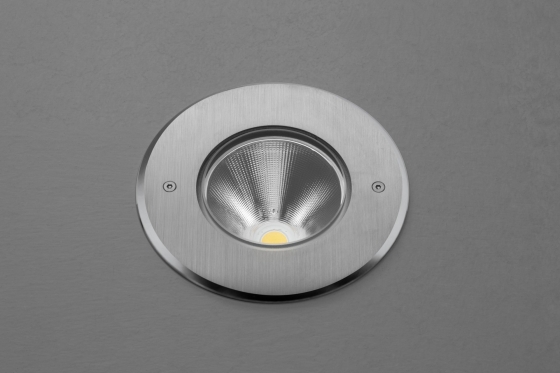

Luminaire designed for frame recessed installation on walls, floors or ceiling is made of aluminium, steel and glass. Suitable for power LED COB sources, it is equipped with metallized precision optics. Its body is made of Anticorodal aluminium, submitted to black anodizing treatment to guarantee durability over time and maximum resistance against atmospheric agents. The stainless steel front ring nut is tightened and fixed to the body by a mechanical threaded coupling with silicone gasket. It can also be made of AISI 316L stainless steel, on request.



The specific diffuser in extra-clear glass, is integral to the body thanks to a silicone gaskets. The installation is allowed by tightening of 2 screws in stainless steel into plastic casing to be ordered separately, available in draining and waterproof version.

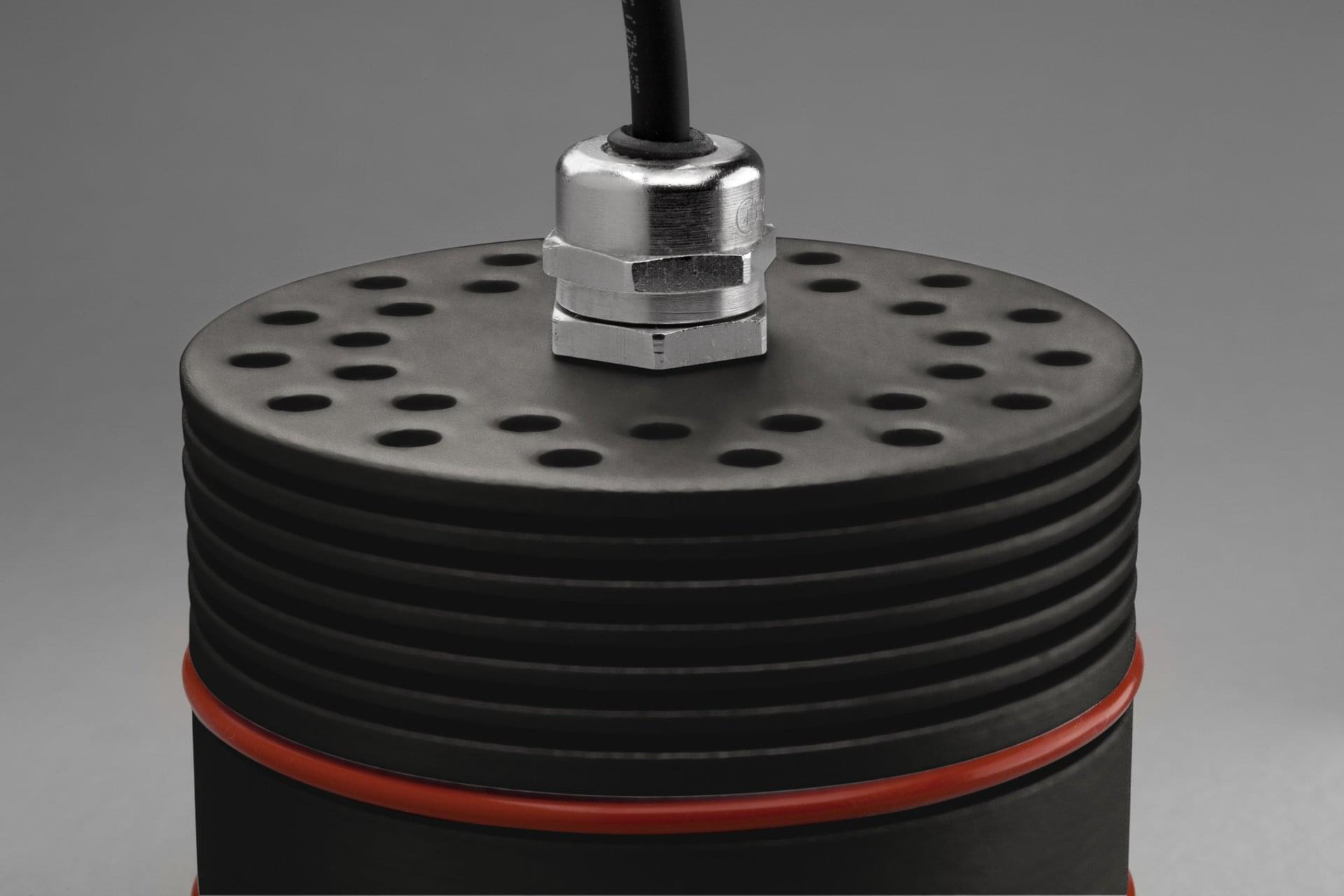

The integrated LED drivers allow its power supply at 24VDC.  The protection degree IP67 is ensured by a special waterproof cable gland system and silicone gaskets.



See specification for more information or click here
