Downloads : technical modifications reserved

Specificatie LAM32 gem1 (pdf)

LAM32 Gem Pro 1

Light emphasizes what the darkness hides, indicates what is unseen, suggests what could only be imagined: at times more power and different light beams are needed. When the project has these requirements, Gem 1 is the answer.

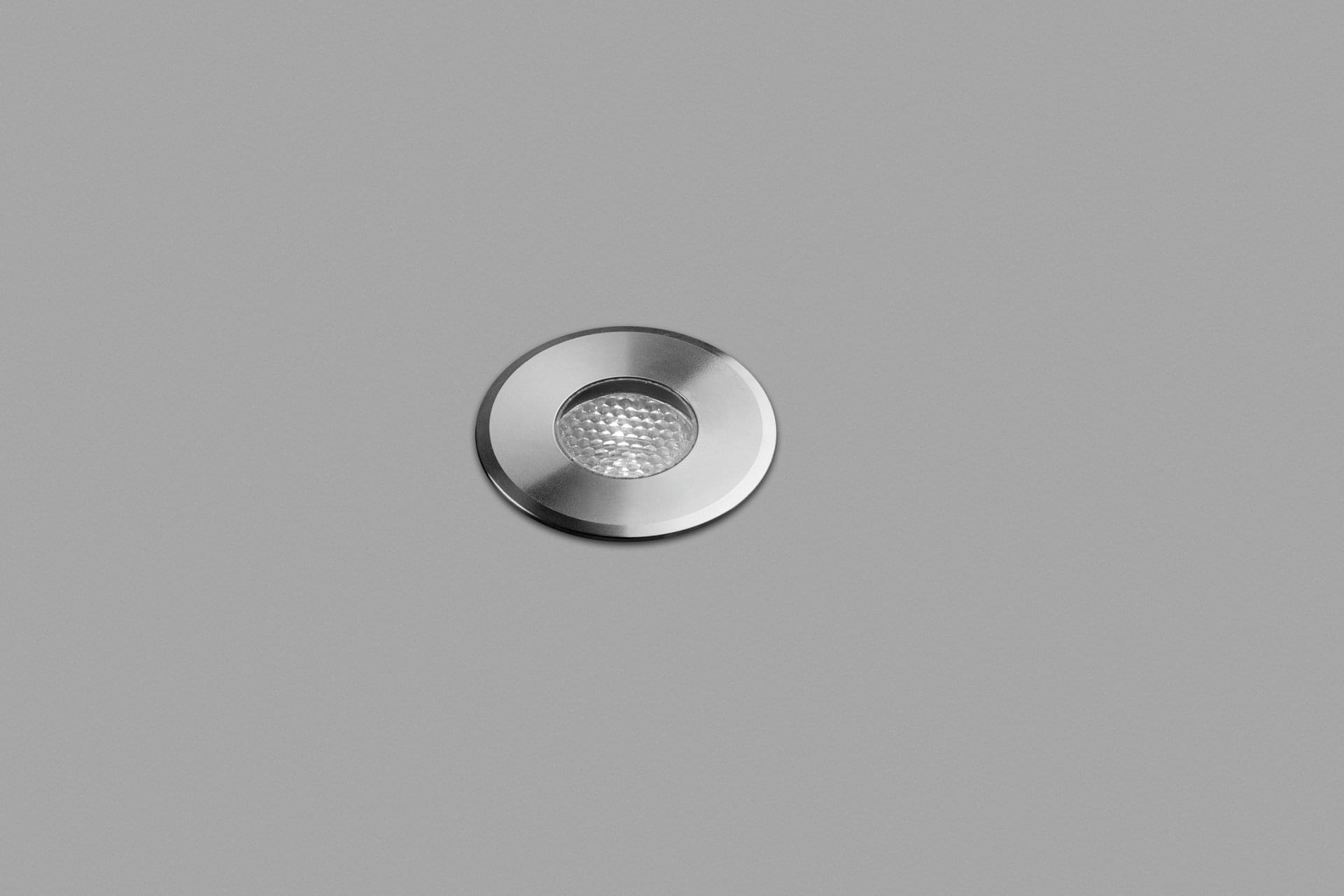

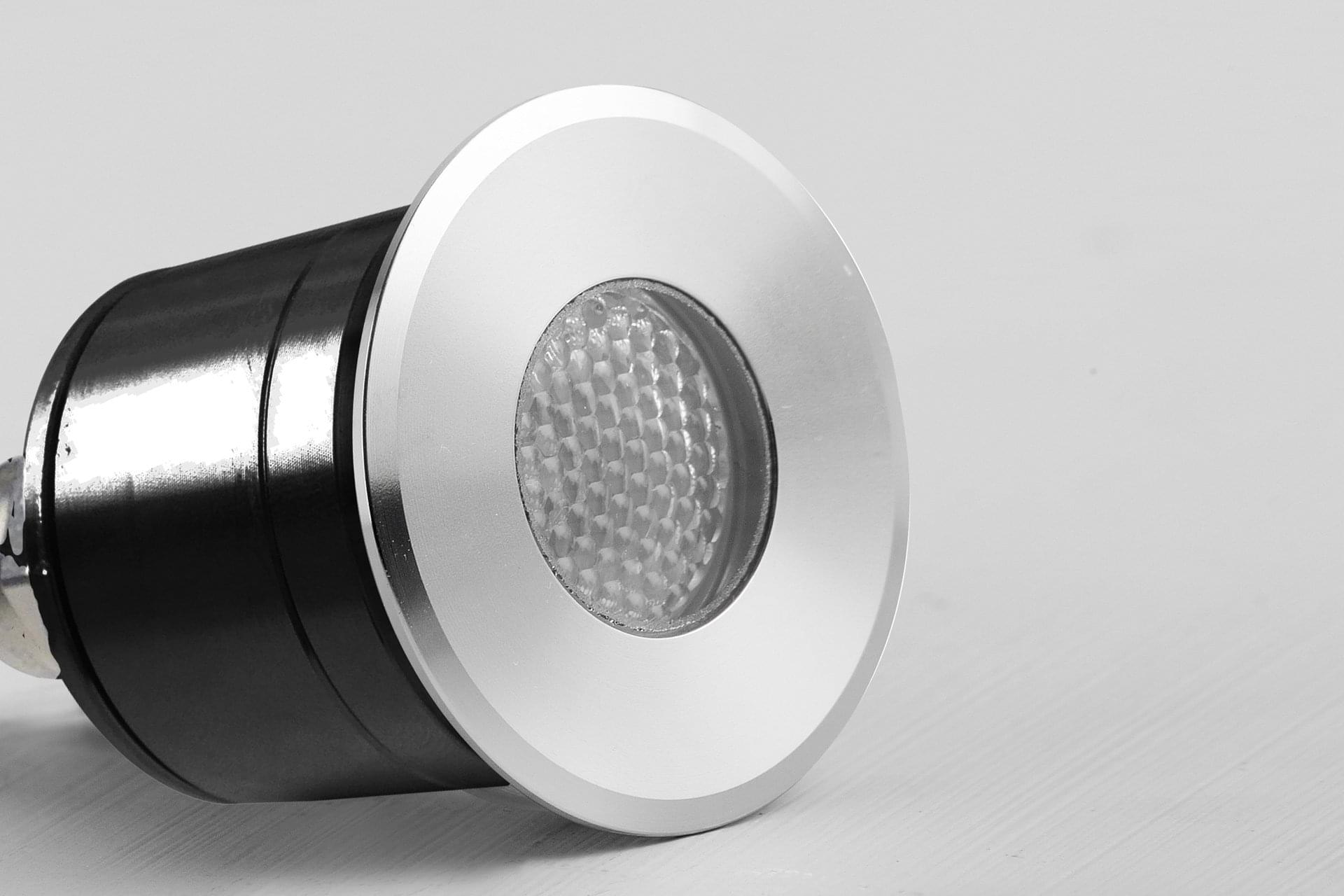

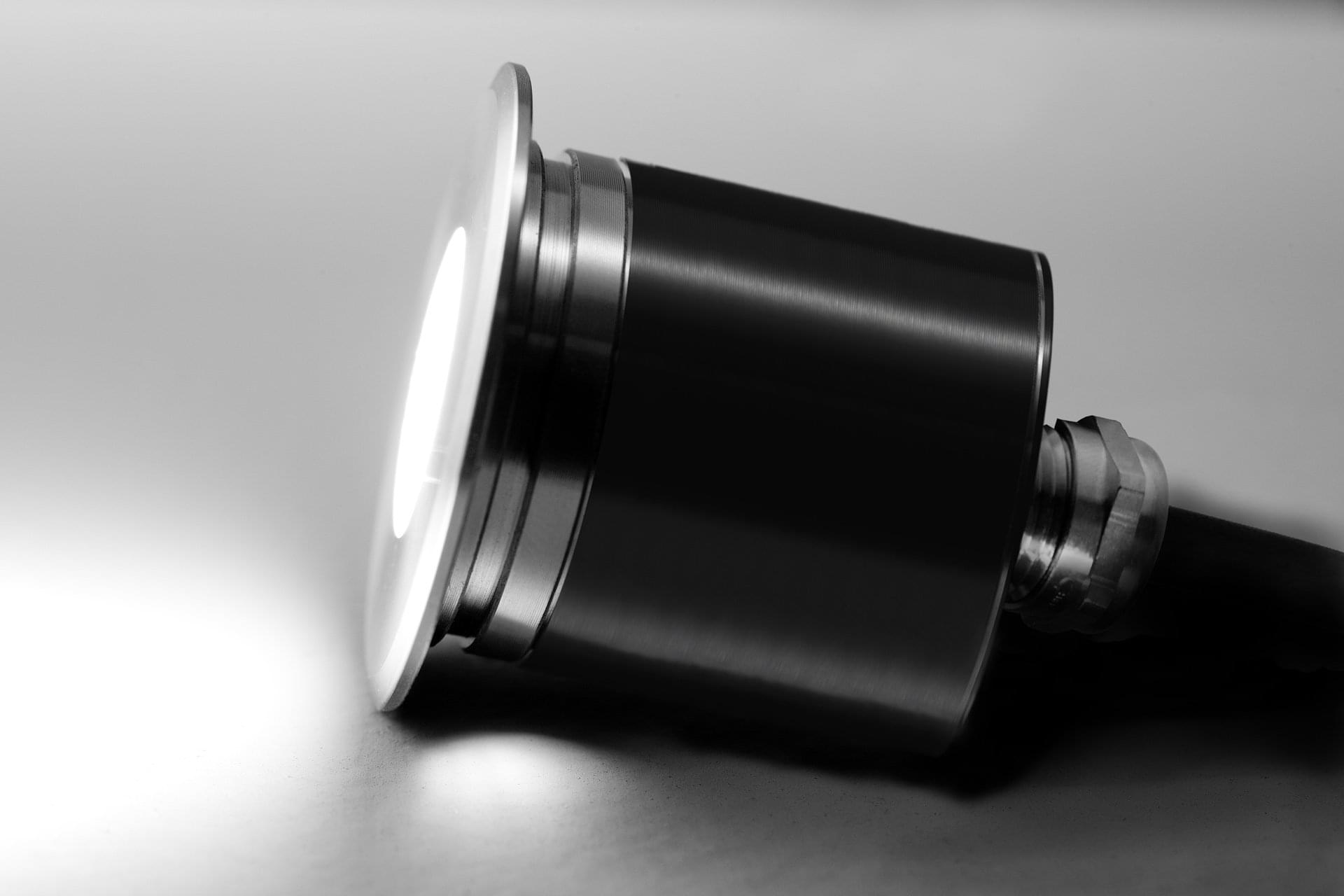

Luminaire designed for frame recessed installation on walls, floors or ceiling, suitable for power LED sources.  Its body is made of Anticorodal aluminium, submitted to black anodizing treatment to ensure durability over time and maximum resistance against atmospheric agents.



The front ring nut is tightened and fixed to the body by a mechanical threaded coupling with silicone gasket. All the components of the luminaires of this series can be fully made of AISI 316L stainless steel, on request. The specific diffuser in extra-clear glass, is integral to the body thanks to a silicone gaskets. The installation on masonry can be done under a pressure on a special plastic casing, available in draining and waterproof version. The application on plasterboard wall can be done using accessory spring, to be ordered separately.



The protection degree IP67 is guaranteed by a special waterproof cable gland system. High quality PMMA optics allow long distance light propagation. The  integrated LED driver allows its power supply at 24VDC. It is equipped with a 50cm long neoprene cable for connection to the power supply line, through appropriate waterproof connection systems not included.  Remote power supply not included.



See specification for more information or click here
