LAM32 Line Pro

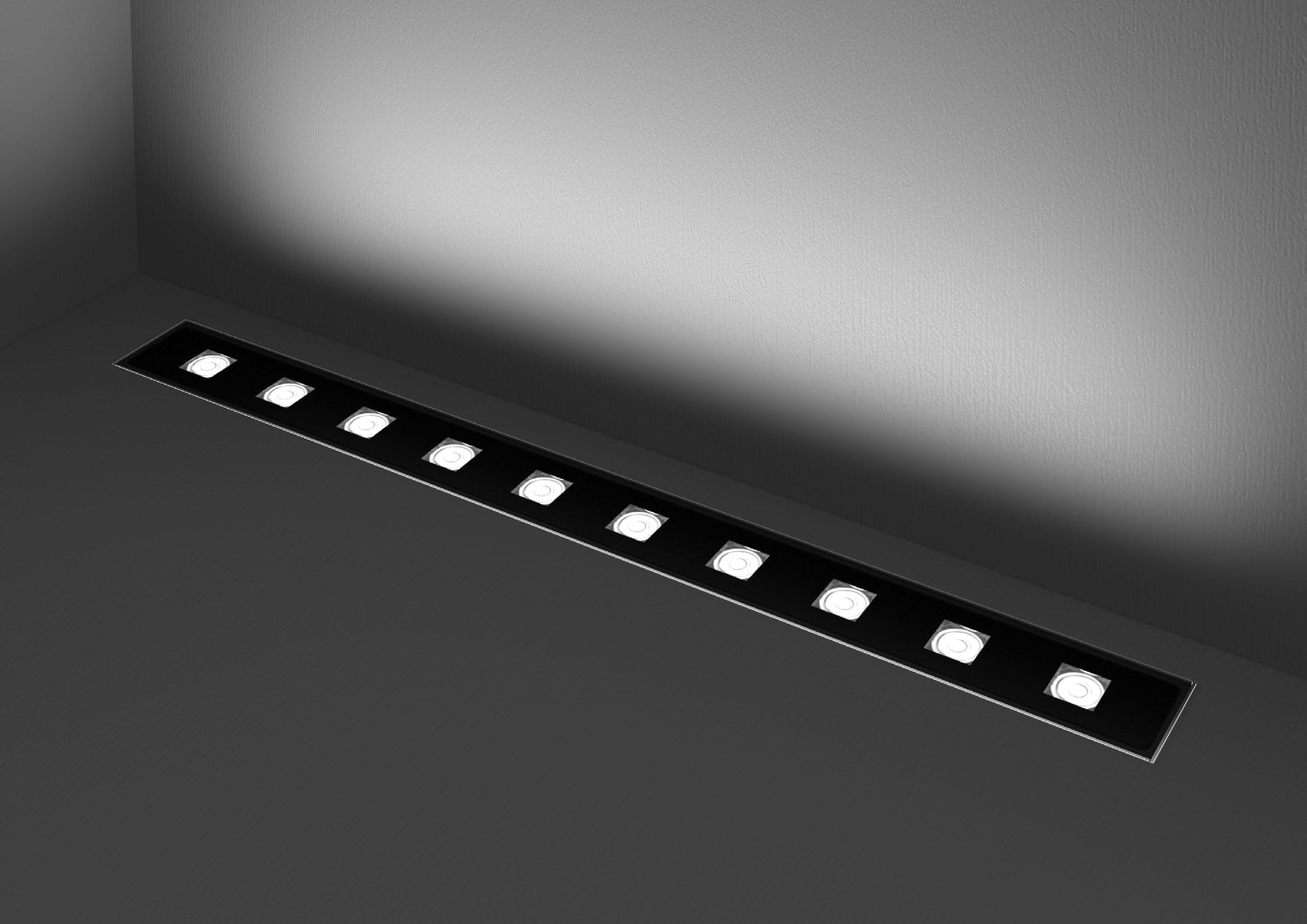

Luminaire designed for flush installation on walls and floors inn outdoors and indoors areas. Suitable for power LED sources.
Its body is made of Anticorodal alluminium alloy, submitted to anodizing treatment up to 18 micron. Temperated glass is integral to the body through a special glue-sealant used in shipbuilding.

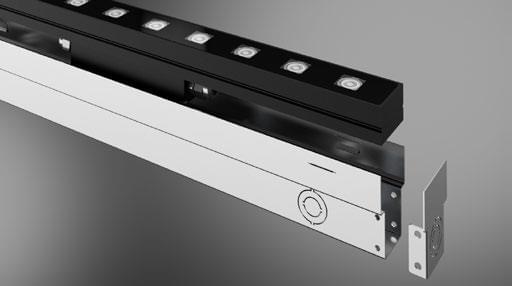

The PMMA precision optics allow the propagation of light for long distance. The snap-in installation of the devices is allowed through the mounting of stainless steel casing.

The anti-vandal stainless steel springs that make the device particularly suitable for installation in public and private areas.

The device is removable via dedicated disassembly key to be ordered separately.

The protection degree IP67 is ensured by a special waterproof cable gland system and silicone gasket.

The integrated LED driver allows its 48VDC power supply.

It is equipped with 2 cables with fast connectors to be connected to the power supply line, through appropriate waterproof connection systems not included to be ordered separately.


See specification for more information or click here
