LAM32 Line strong
Luminaire designed for flush installation on walls and floors
in outdoors and indoors areas. Suitable for power LED sources.
Its body is in steel AISI 304 and the diffuser is in temperated
sanded glass. External casing in anodizen alluminium 18 microns.
On request, the casing can be made of stainless steel AISI 316L

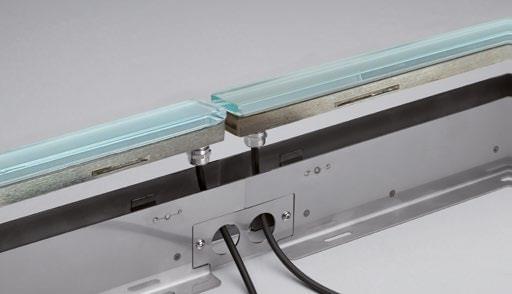

ensuring full lasting stability even in presence of salt fog. The snapin
installation is allowed through anti-vandal stainless steel springs
that make the device particularly suitable also for installation in
public areas. The device is removable via dedicated disassembly
key to be ordered separately. The protection degree is IP67. The
integrated electronic controls, allow its power supply 24VDC and
the parallel connection. It is equipped with 0,5mt long neoprene
cable for connection to the supply line, through appropriate
waterproof connection systems not included.
See specification for more information or click here
