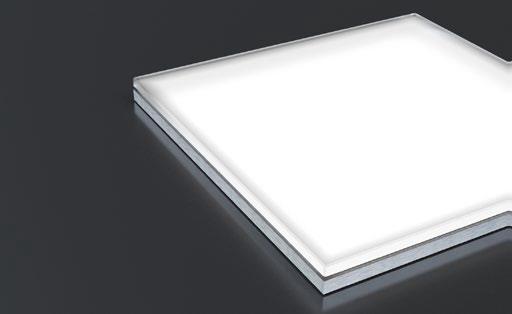

LAM32 Quadrato

Luminaire designed for flush installation on floors in outdoors and
indoors areas. Suitable for power LED sources. Its body is made of
stainless steel and aluminum submitted to anodizing treatment up to
18 micron. Front diffuser in extra clear tempered glass, subjected
to a specific anti-stain sandblasting treatment, is integral to the
body through a special glue-sealant used in shipbuilding. The snapin
installation of the devices is allowed through the mounting of
stainless steel casing. It has anti-vandal stainless steel springs that
make the device particularly suitable for installation in public and
private areas. The device is removable via dedicated disassembly
key to be ordered separately. The luminaire is available in IP67
230Vac DALI dimmable and IP68 24Vdc. It is equipped with
0,5m long neoprene cable for connection to the power supply line,
through appropriate waterproof connection systems not included.


See specification for more information or click here
