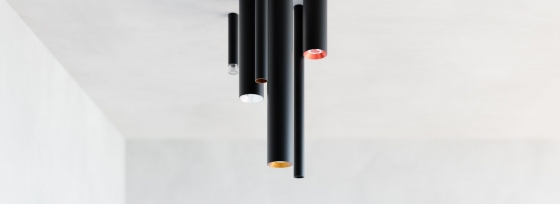

The Lux Company Pixo 36 - Pixo 77
- Body: Ceiling mounted luminaire with light body in extruded aluminium. Light body available in two diameter (36mm and 77mm). Exchangable front ring in wide range of colours. Available in two sizes and three different length.
- LED Sources: ridgelux Vero series. CRI: 90 | CCT: 3000K, 4000K, TuneableWhite. Other CRI and CCT options available on request.
- Driver: Supplied with integrated no-dimable driver. Dimming Options: 0-10V Dim, Phase, CASAMBI, available for Pixo 77.
- Optic: Reflector. Narrow, medium and wide beam angle available.
- Applications: A modern designed surface ambient light. Its accessories make it the perfect match for sophisticated enviroments. Application areas: residential, hotels, restaurants, retail, corridors.
Available in the following types:
- Pixo 36-L 170mm Surface Mounted, Pixo 36-L 330mm Surface Mounted, Pixo 36-L 550mm Surface Mounted
- Pixo 77-L 170 mm Surface Mounted, Pixo 77-L 330mm Surface Mounted, Pixo 77-L 550mm Surface Mounted
