Downloads : technical modifications reserved
|specificatie the lux company gola 40 wall (pdf)|
|specificatie the lux company gola 60 wall (pdf)|
|specificatie the lux company gola 95 wall (pdf)|
|specificatie the lux company gola 160 wall (pdf)|

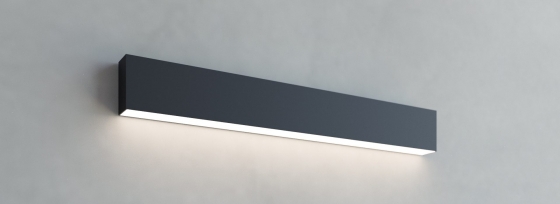

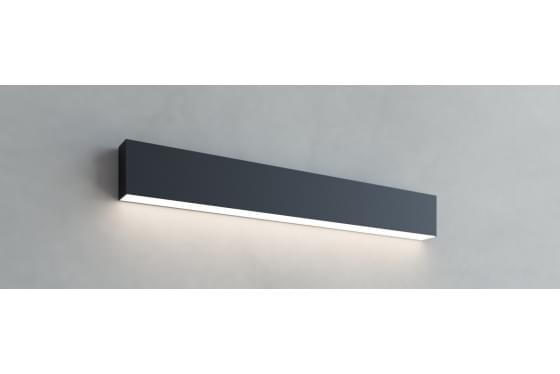

The Lux Company Gola Wall
Surface mounted linear luminaire system. Luminaire housing in extruded aluminium and end caps in cast aluminium. Satin white diffuser in extruded UV heat resistant acrylic. End caps are mechanically attached with no exposed fasteners. Available in four width apertures (40-60-95-160mm) and mountable vertically or horizontally. System versions can be configured into linear, 90 ° L, T and X shapes or other custom configurations (details are all by request). Gola 95 and 160 can incorporated spotlight modules. Optional Gimbalo light head module with tiltable and routable heads for Gola 95 and 160.
MD modular system. CRI: 90 | CCT: 3000K, 4000K. Other CRI and CCT options, Tuneable White, DimToWarm and RGB/W versions available on request.
Inclusive of integrated no-dimable driver. Dimming Options: 0-10V Dim, DALI, Phase, CASAMBI.
Linear system with multiple mounting options to enabling continuous runs of infinite length. It offers the possibility to equipped entire projects with a single product ensuring consistent illumination despite varying ceiling heights Application areas: offices, hallways, schools, cafeterias.
Available in the following types:
Gola 40 Trim/Trimless: Initial/End, Middle, Stand Alone
Gola 60 Trim/Trimless: Initial/End, Middle, Stand Alone
Gola 95 Trim/Trimless: Initial/End, Middle, Stand Alone
Gola 160 Trimless: Initial/End, Middle, Stand Alone
