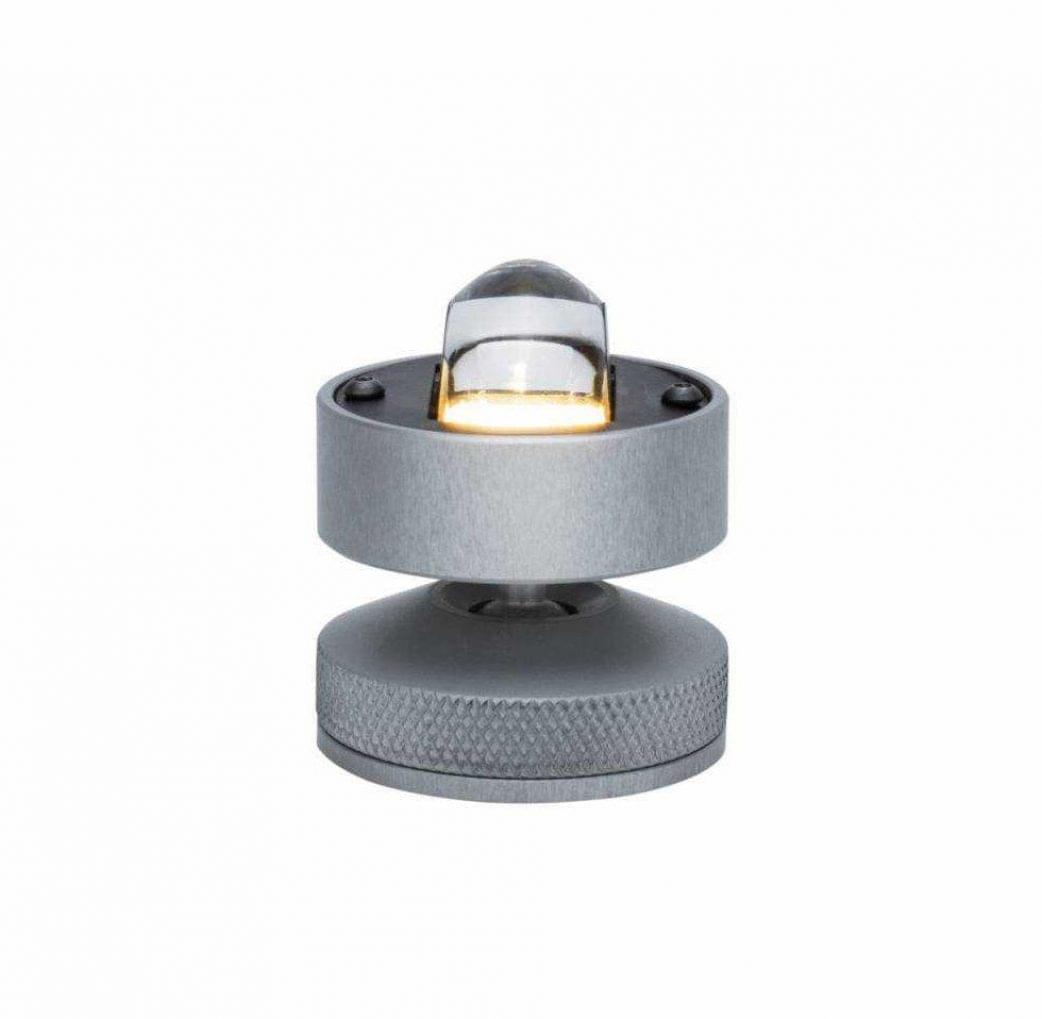

Stoane lighting Niche

Miniature surface mounted ļ¬tting with a clean linear beam measuring 9° x 113°. Curved optic designed to discreetly light archways and window reveals.

Light source type: Discrete LED
Mounting methodSurface
MaterialMachined Aluminium
Finish:Anodised, Painted
CCT:2700K, 3000K, 3500K, 4000K
Initial Output:100lm at 350mA (1W), 137lm at 500mA (1.4W)
181lm at 700mA (2W)
Dimming:0-10V, DMX, DALI, Mains Dim
BLE (Bluetooth Low Energy)
Supply:Remote Constant Current LED driver required
Locking:By hand using knurled base
Pan & Tilt:26º Tilt

See specification for more information or click here
