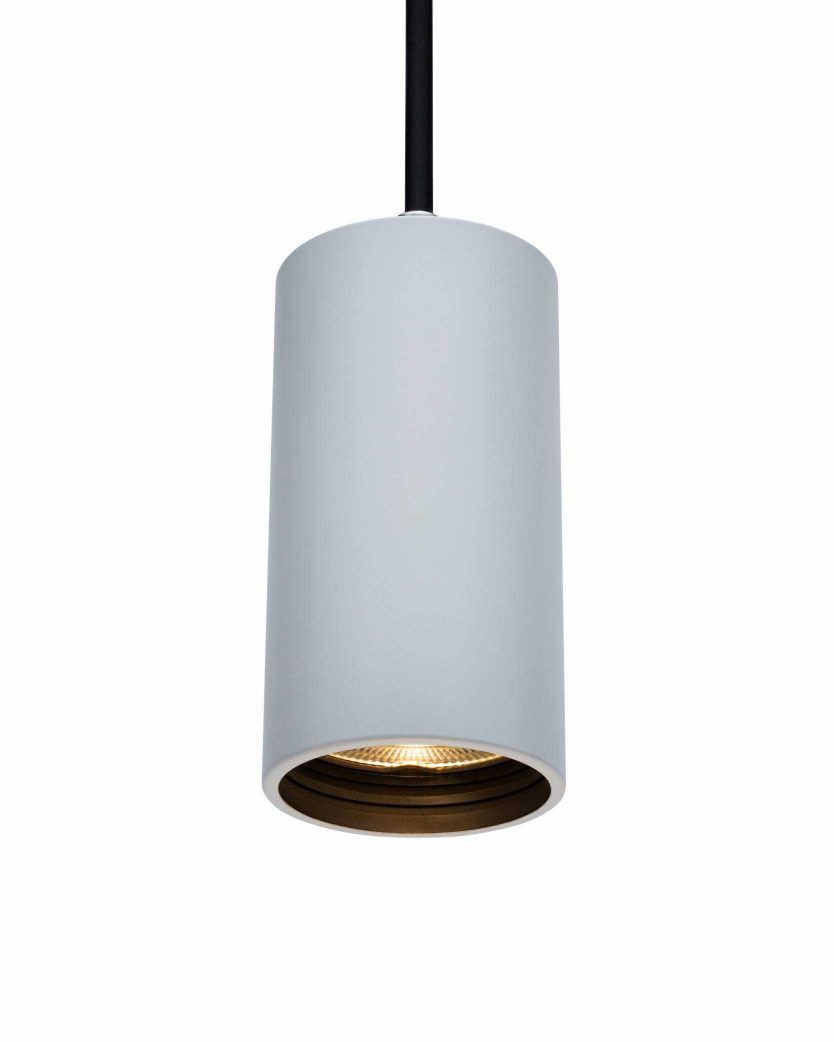

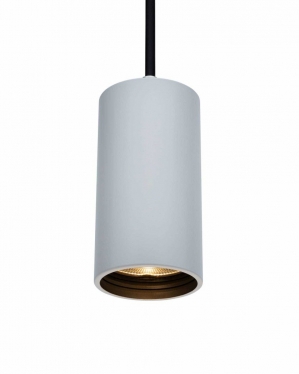

Stoane Lighting ZTA Pendant

The range is truly agnostic, be that in choice of light source, optic, paint finish, control system or how it’s mounted.
With this range, Mike Stoane beginning to increase control over the sourcing of material and intend to produce truly maintainable, re-manufactureable and ultimately recyclable equipment.



Light Source Type:Discrete LED, Xicato Module, COB
Material:Machined Aluminium
CCT:2700K, 3000K, 3500K, 4000K
CRI RA:Min. 90 (typ.95), 97 (Artist Series, Vibrant Series V95)
3 (Standard Series, Vibrant Series V80)
90 (Designer Series)
Initial Output:100lm at 350mA (1W), 137lm at 500mA (1.4W)
181lm at 700mA (2W), 253lm at 1050mA (3W)
800lm at 350mA (11.6W)
Finish:Anodised, Painted, Specials
Dimming:0-10V, DMX, DALI, Mains Dim
BLE (Bluetooth Low Energy)
Locking:Remote Constant Current LED driver or
48V DC PSU required (depending on module choice)
Optic:Very Narrow (0º - 12º), Narrow (12º - 20º)
Medium (20º - 30º), Flood (30º - 50º)
Wide Flood (51º +), Extra Wide Flood
All lenses are available for Ø50mm, Ø70mm or Ø111mm fittings

See specificaties for more information or click here
