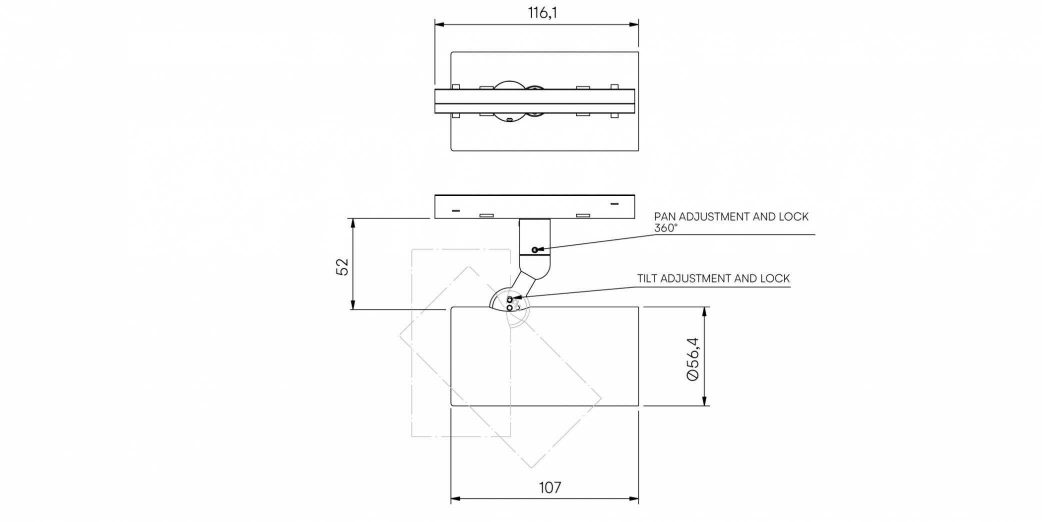

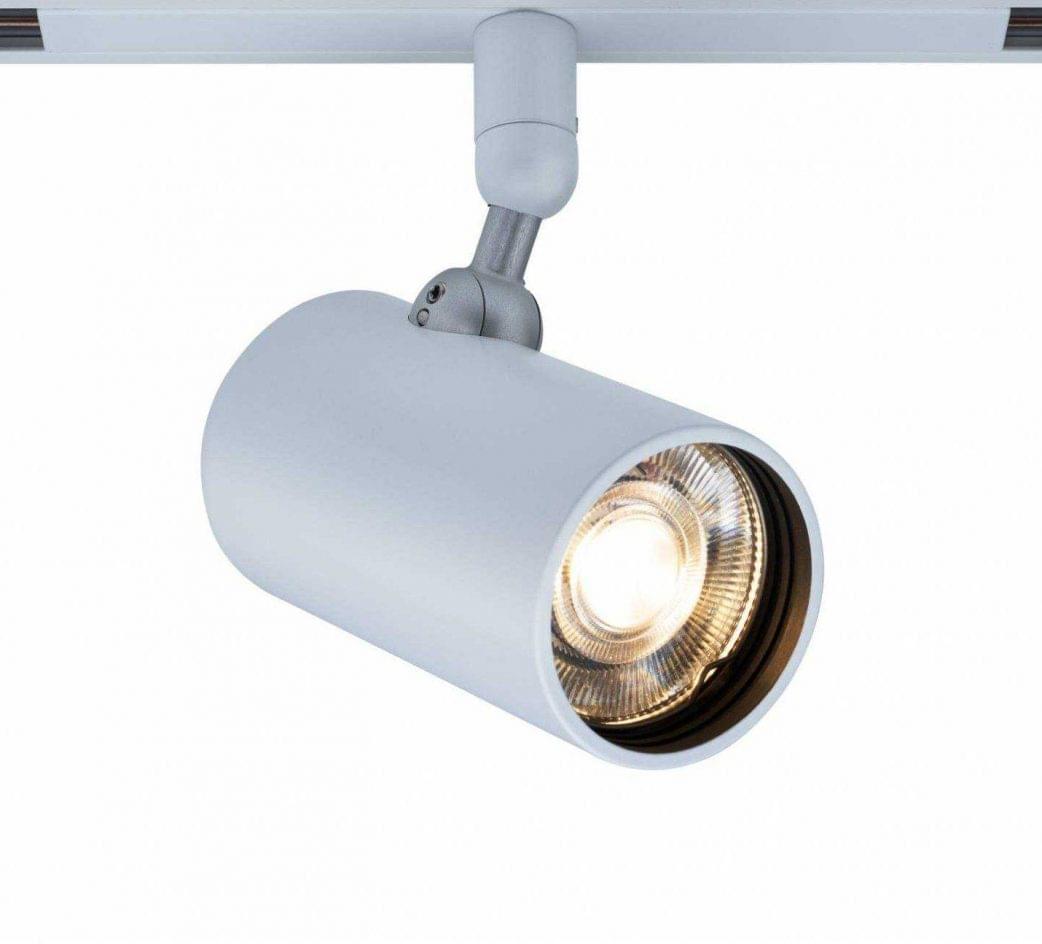

Stoane Lighting ZTA LV Track

The range is truly agnostic, be that in choice of light source, optic, paint finish, control system or how it’s mounted.
With this range, Mike Stoane beginning to increase control over the sourcing of material and intend to produce truly maintainable, re-manufactureable and ultimately recyclable equipment.


Light source type:Discrete LED, Xicato Module, COB
Material:Machined Aluminium
Lamp:MSL Star (1 x Osram Oslon Square),
Xicato Module, Xicato XOB
CCT:2700K, 3000K, 3500K, 4000K
CRI RA: Min. 90 (typ.95),  97 (Artist Series, Vibrant Series V95)
83 (Standard Series, Vibrant Series V80)=
90 (Designer Series)
Initial Output:100lm at 350mA (1W), 137lm at 500mA (1.4W)
181lm at 700mA (2W), 253lm at 1050mA (3W)
800lm at 350mA (11.6W)
Finish:Anodised, Painted, Specials
Dimming: 0-10V, DALI, BLE (Bluetooth Low Energy)
Optic:Very Narrow (0º - 12º), Narrow (12º - 20º)
Medium (20º - 30º), Flood (30º - 50º)
Wide Flood (51º +), Extra Wide Flood
Locking:2mm Allen key required
Supply:48V DC PSU required
Lenses / louvres:Diffuser Lens, German Spread Lens
UK Spread Lens, Honeycomb louvre
All lenses are available for Ø50mm, Ø70mm or Ø111mm fittings

See specification for more information or click here
