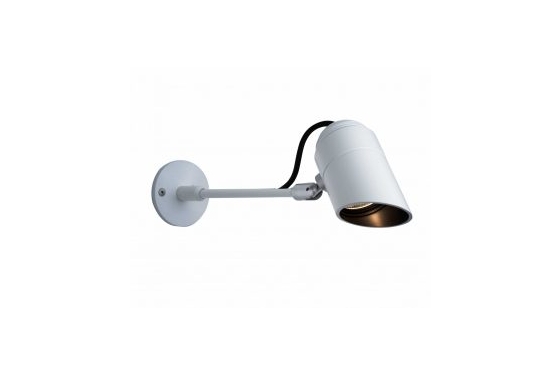

Mike Stoane Lighting GTX2.50
Adjustable spot light with slash cut snoot on custom sized stem with Xicato module.
Stem length up to 400mm max.
| Materials: | Aluminium |
| Lamp: | Xicato Module |
| Finish: | Anodised Painted Specials |
| Dimming: | BLE, 0-10V, DMX, DALI, Mains or Dual Dim |
| Supply: | XTM: Constant current remote driver |
| XIM: 48V DC | |
| CRI RA | 97 (Artist Series, Vibrant Series V95) |
| 83 (Standard Series, Vibrant Series V80) | |
| 90 (Designer Series) | |
| Initial Output | 9mm LES XIM Artist Series module: 700lm (12.5W) |
| 9mm LES XIM Standard Series module: 700lm (10.1W) | |
| 9mm LES XTM Standard Series module: 1300lm (15.6W at 700mA) | |
| 9mm LES XTM Artist Series module: 930lm (15.6W at 700mA) | |
| Pan & Tilt | 180º tilt and 120º pan adjustment |
| Optic: | Narrow (12º - 20º) Medium (20º - 30º) |
| Flood (30º - 50º) Wide Flood (51º +) | |
| Extra Wide Flood Wall wash |
