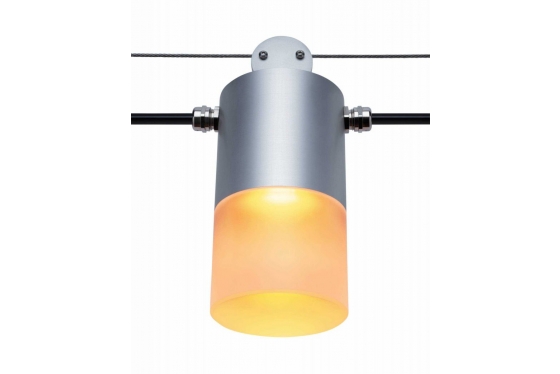

Stoane Lighting G-cat
Versatile decorative yet functional wire mounted IP66 rated downlight. To be mounted to catenary wire via included locking hinge mechanism.
| Light source type: | Xicato Module |
| Mounting method: | Catenary |
| Material: | Machined Aluminium/ Optional acrylic accessoiries |
| Finish: | Anodised, Painted, Specials |
| CCT: | 2700K, 3000K, 35000, 4000K |
| CRI RA: | 97 (Artist Series, Vibrant Series V95) |
| 83 (Standard Series, Vibrant Series V80) | |
| 90 (Designer Series) | |
| Dimming: | 0-10V, DMX, DALI |
| BLE (Bluetooth Low Energy) | |
| Supply: | Constant Current integral driver 48V or |
| 240V to integral PSU | |
| Optic: | Solid acrylic, Ø70mm optics |
| IP Rating: | IP66 |
See specification for more information or click here
