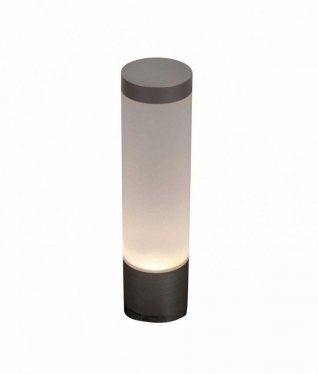

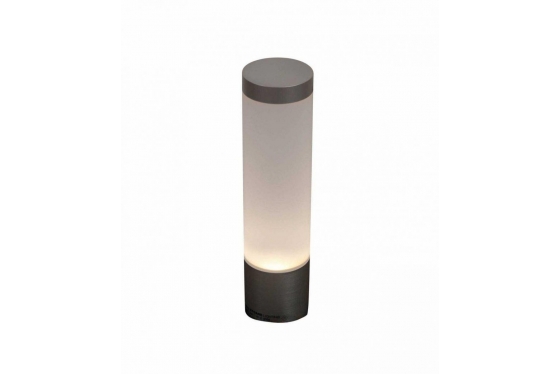

Stoane Lighting Bollard
IP66 rated bollard marker light with various mounting options: spike mounted, surface mounted, disc mounted and recessed (see download resource package)
| Materials: | Machined Aluminium Acrylic Diffuser |
| Mounting Method: | Recessed, Ground Spike, Surface, Disc Mounted |
| Light Source: | MSL Star (1 x Osram Oslon Square) |
| Colour: | 2700K, 3000K, 3500K, 4000K |
| Initial Output: | 100lm at 350mA (1W), 137lm at 500mA (1.4W) |
| 181lm at 700mA (2W) | |
| Finish: | Anodised aluminium or painted any RAL colour, |
| frosted acrylic diffuser | |
| Dimming: | 1-10V, DMX, DALI or Mains Dim |
| Supply: | Remote Constant Current LED driver required |
| IP Rating | IP66 |
See specifications for more information or click here
