Downloads : technical modifications reserved
| Specificatie bbx.70 - 9mm LES XIM Artist and Vibrant Series V95 (1235lm) (pdf) |
| Specificatie bbx.70 - 9mm LES XIM Standard and Vibrant Series V80 (pdf) |

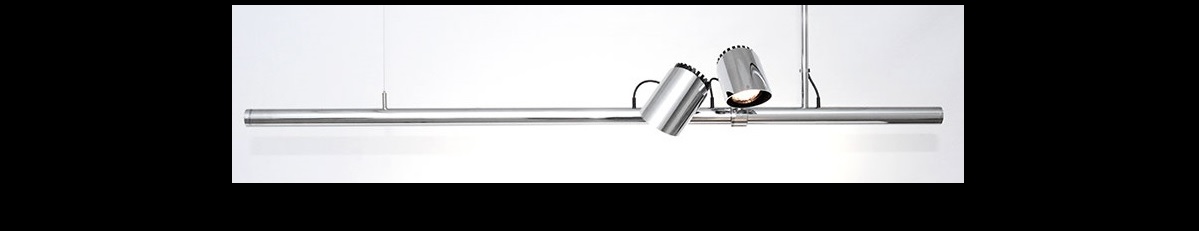

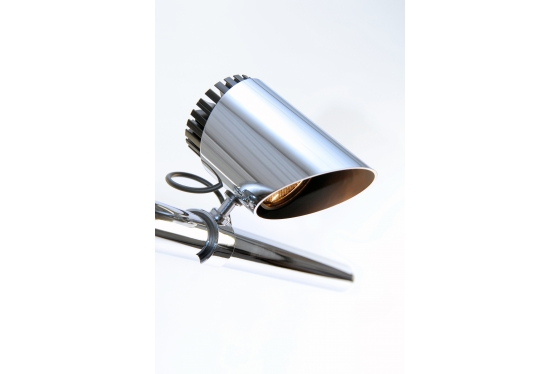

Stoane Lighting BBX.70
Plug-in friction adjustable Xicato based spot light designed to mount to suspended bars (600mm or 1500mm long).
| Materials: | Machined Aluminium |
| Lamp: | Xicato XIM 9mm LES LED module |
| Finish: | Chrome plated |
| Dimming: | 0-10V, DALI, Wireless |
| Supply: | 48V DC PSU required |
| Accessories: | Diffuser Lens, German Spread Lens, |
| UK Spread Lens, Honeycomb louvre | |
| Colour Temperature: | 2700K, 3000K, 2400K, 4000K |
| CRI RA: | 97 (Artist Series, Vibrant Series V95) |
| 83 (Standard Series, Vibrant Series V80) | |
| 90 (Designer Series) | |
| Initial Output: | 9mm LES XIM Standard Series module: 1300lm |
| 9mm LES XIM Artist Series module: 1235lm | |
| Locking: | Friction adjustable |
| Pan& Tilt: | 360º Pan and Tilt |
| Optic: | Very Narrow, Narrow, Medium, Flood |
See specification for more information or click here
