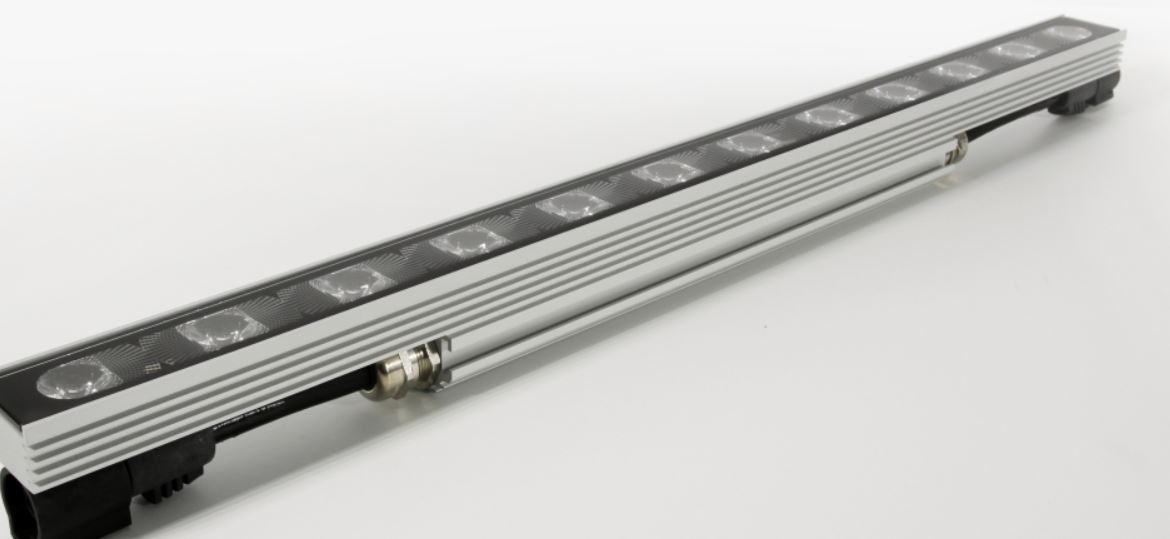

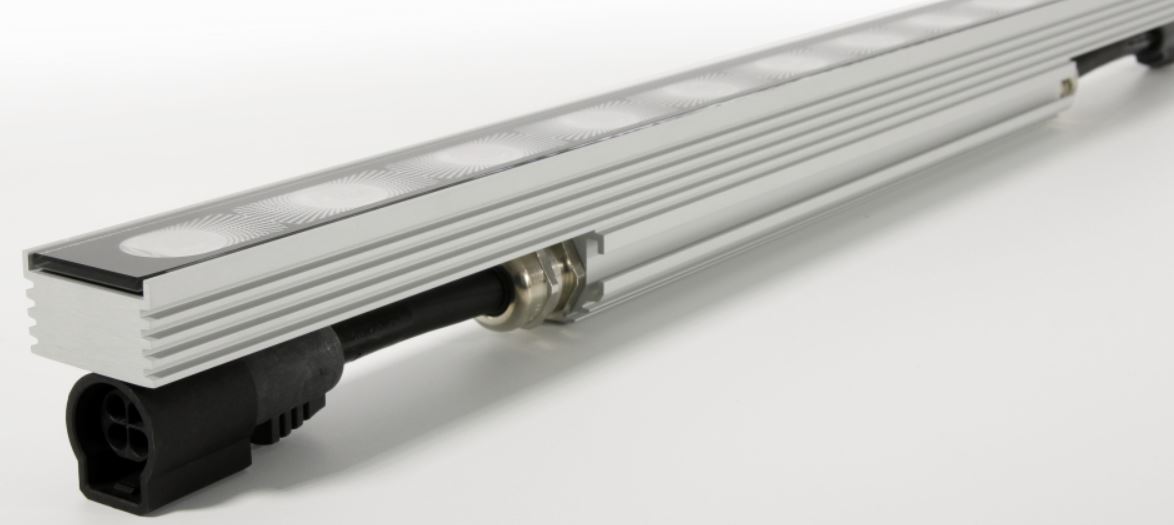

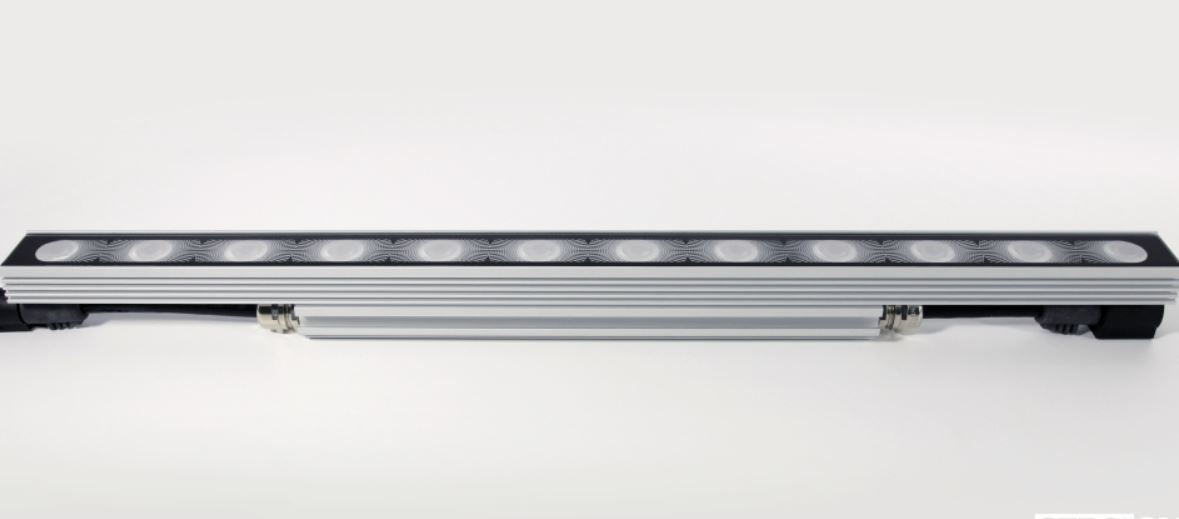

GVA Lighting STR9 SLIM

High performance, small form factor, high power linear surface mount wall washer and wall grazer for exterior applications.



  • Up to 3883 delivered lumens/meter (1165 lumens/foot)
  • Superior quality of white light, typical 2 step MacAdam ellipse: excellent LED to LED color consistency and specified color over angle
  • Color match with STR9® Series and FL100™ Series
  • Compact size, only 52.1mm (2.05in) high x 38.5mm (1.52in) wide
  • IP66 rated with proprietary sealing process and solid extruded, anodized aluminum UNIBODY™ design
  • Optically clear tempered glass (no yellowing over time)



  • DMX, DALI or 0~10V dimming through GVA Power-Data equipment
  • 300mm resolution, self-addressing fixtures – each 300mm section can be controlled individually



  • Power Options: 3W, 5W, 7.5W or 10W per 300mm (1ft)
  • Nominal Length: 300mm (1ft), 600mm (2ft), 900mm (3ft), 1200mm (4ft) and 1500mm (5ft) or custom length (please consult factory)
  • Beam Distribution: Range of round and elliptical beam angles available
  • Body Color: Clear matte, black matte anodized or custom color


LED Color:

  • Custom LED color combinations available
  • 2700K – 6500K, Amber, Green, Red, Blue, Royal Blue, Blue Green


See specifications for more information or click here
