Downloads : technical modifications reserved

Specifications GVA Lighting STR9 RGB (pdf)

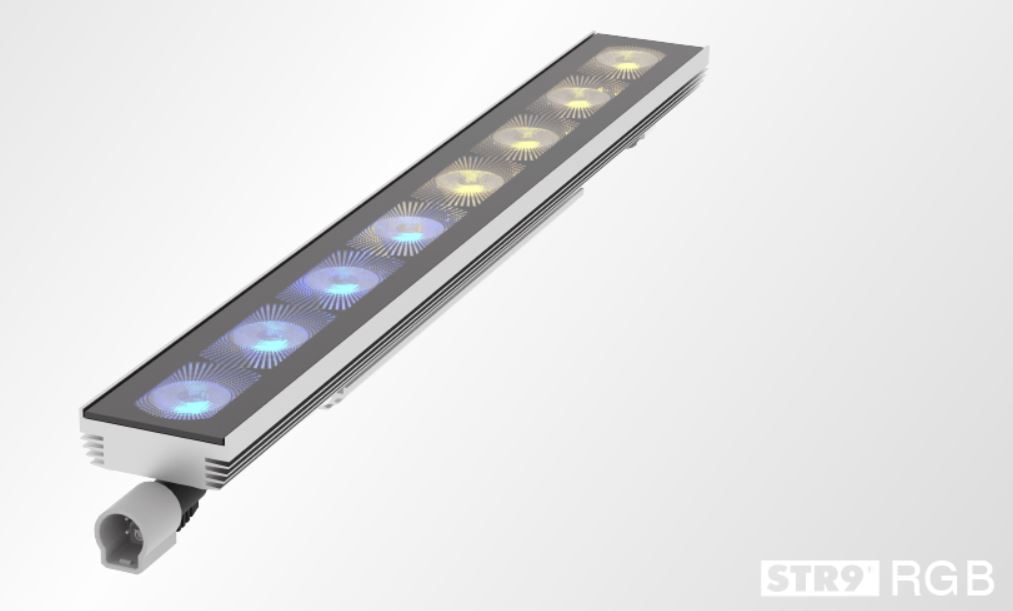

GVA Lighting STR9 RGB

High performance, high power, color changing, linear surface mount LED luminaire designed for exterior architectural lighting applications.


  • Up to 2413 delivered lumens per meter or 724 lumens per foot
  • Power Consumption: typical 20W per 300mm/1ft
  • DMX control through GVA’s power-data equipment
  • Color matched with FL100™ RGBW-IM

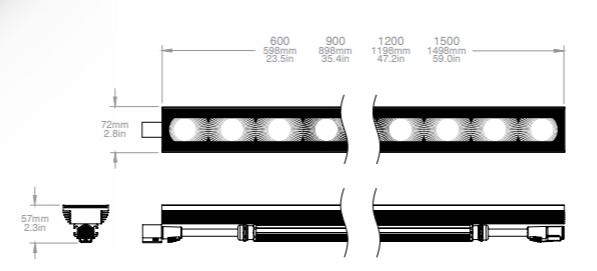

  • Small fixture size: 59mm/2.2′′ high, 72mm/2.83′′ wide
  • Five standard nominal lengths: 300, 600, 900, 1200 and 1500mm or 1, 2, 3, 4 and 5ft
  • Optically clear tempered glass lens: no yellowing over time
  • INFINITY® GVA’s proprietary technology allows exceptionally long lighting circuits



  • Power Source: Extra Low Voltage (ELV) or INFINITY (INF) using remote power supplies
  • Power Options: 15W or 20W per 300mm (1ft)
  • Nominal Length: 300mm (1ft), 600mm (2ft), 900mm (3ft), 1200mm (4ft) and 1500mm (5ft) or custom length (please consult factory)

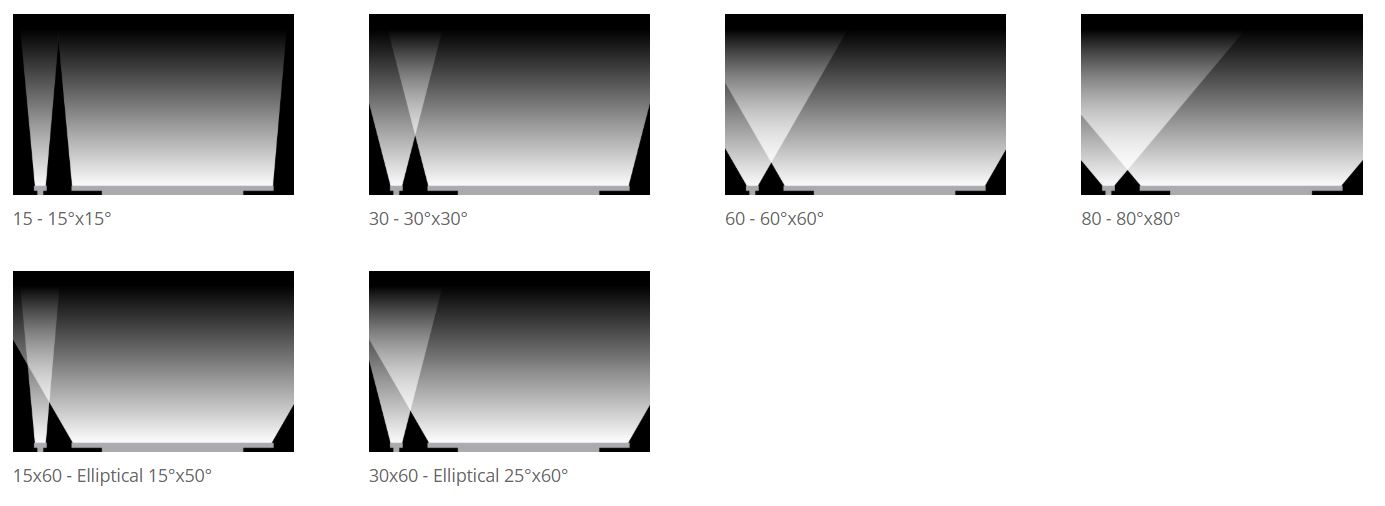

  • Beam Distribution: Range of round and elliptical beam angles available
  • Body Color: Clear matte, black matte anodized or custom color



  • Static colors: Red, Amber, Green, Blue, Royal Blue
  • High Intensity option available, suitable for long throw applications


See specifications for more information or click here
