Downloads : technical modifications reserved

Specifications GVA Lighting STR9 Mono (pdf)

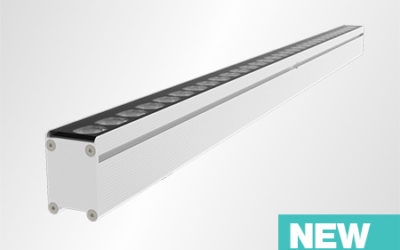

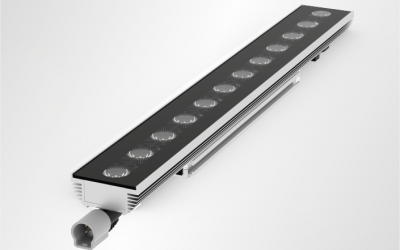

GVA Lighting STR9 Mono

High performance, high power linear surface mount wall washer and wall grazer for exterior applications.


  • Features
  • Up to 4000 delivered lumens per meter or 1200 lumens per foot
  • Three power options: 5W (ASHRAE/IESNA), 10W and 15W per 300mm/1ft
  • DMX, DALI or 0~10V dimming through GVA’s power-data equipment
  • Small fixture size: 56mm/2.2″ high, 72mm/2.83″ wide
  • Four standard nominal lengths: 600, 900, 1200 and 1500mm or 2, 3, 4 and 5ft
  • Unibody design + proprietary sealing process for industry-best environmental protection: IP66 rated
  • Optically clear tempered glass lens: no yellowing over time



  • Custom lengths: 300 or 1800
  • Glare control louvers
  • Custom LED color combinations
  • Non-standard beam distributions
  • Maximum lumen output adjustable during commissioning
  • Available LED Colors: 2700K – 6500K
  • Amber, Green, Red, Blue, Royal Blue, Blue Green


See specifications for more information or click here
